This pairs the smooth, slide-friendly base with a hex socket in the rod head, so you level from above with an Allen key instead of reaching underneath to turn the base by hand. Rated to 80 kg per foot.
We make this size in production runs, so there is none on the shelf today. Tell us how many you would want and you go on the list for it. When enough people ask for a size, we run it, and the people who asked hear about it first.
We stock a limited range of threads and lengths. Tell us what you need and we will confirm availability and pricing by email.
Buying in volume? See business pricing & samples ↓
Standard leveling feet adjust by turning the base by hand from below the furniture. That requires reaching under the furniture, gripping the base, and rotating it. On furniture with low clearance, against-the-wall placement, or heavy loads on top, that hand access is difficult or impossible. Smooth-base hex-key adjustable leveling feet solve this with a hex (Allen) socket in the top of the threaded rod head. Insert a standard hex key from above, turn the rod, and the foot extends or retracts without touching the base. Height adjustment from above.

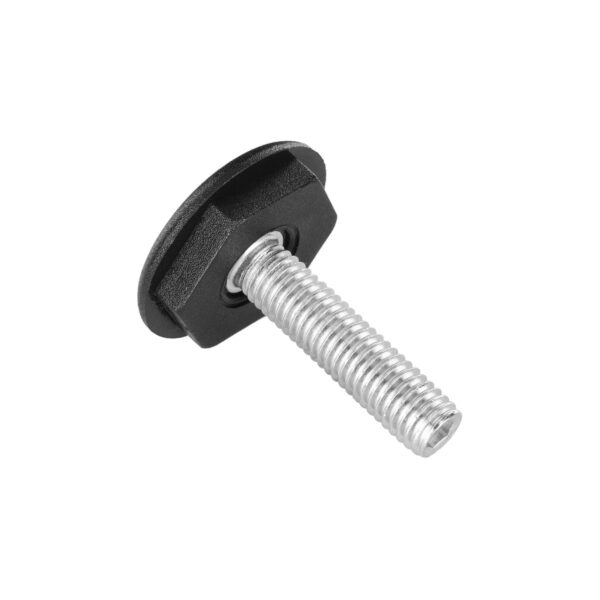

Ø 30 mm PA base at 9 mm height with smooth, rib-free bottom surface and hex socket in the rod head. Zinc-plated steel M8 threaded rod. Static load capacity: 80 kg per foot. Smooth-base hex-key adjustable leveling feet are Allen wrench adjustable leveling feet for furniture where hand access to the base is limited. Rod lengths 14 and 33 mm. Black. Sold in packs of 4, adjustable in steps of 2 at checkout.

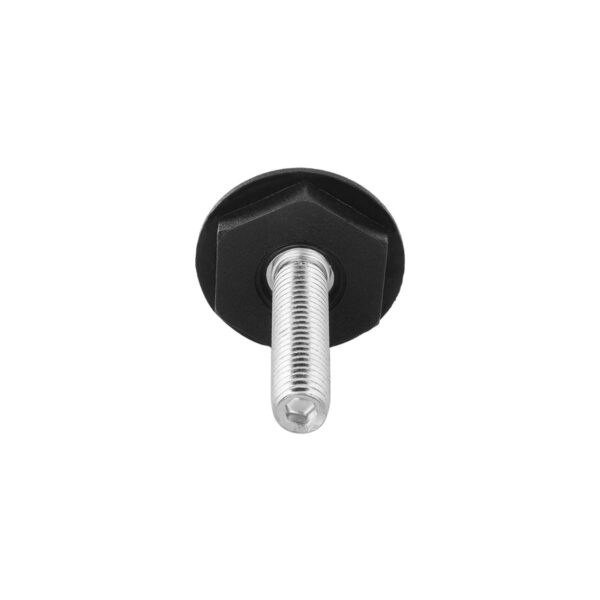

The hex socket is machined into the top of the threaded rod head, which sits inside the threaded insert when installed. The socket faces upward, accessible from above the furniture leg through the tube opening (on hollow tube legs) or from the side of the leg joint.
On furniture with hollow tube legs and round, square, or rectangular threaded inserts, the hex socket is accessible through the tube from above. Insert the hex key through the tube interior to reach the rod head.
Clockwise extends the foot (raises that corner). Counterclockwise retracts the foot (lowers that corner). Each turn provides precise height change based on the M8 thread pitch.
After adjusting each foot, check the furniture level. Repeat at each leg as needed. The hex key provides the leverage for precise fractional turns that hand-gripping the base cannot achieve as easily.
Smooth-base hex-key adjustable leveling feet combine two specialized features that serve different needs. Understanding each independently explains why the combination matters for specific applications.

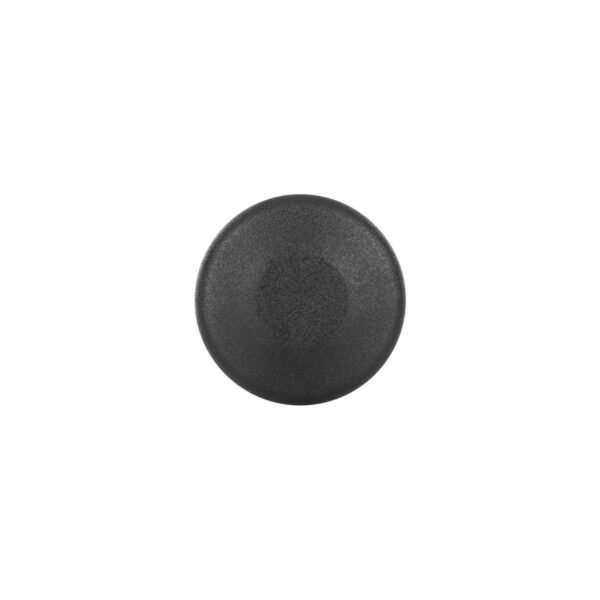

The flat, polished PA base bottom allows easy sliding on smooth, hard floors. The same smooth surface as standard smooth-base leveling feet. Furniture slides when pushed without the resistance that ribbed bases create. Hex socket leveling feet smooth base that combines easy repositioning with from-above adjustment.
The hex (Allen) socket in the rod head allows height adjustment using a standard metric hex key from above the furniture. No reaching under the furniture. No gripping the base. No tipping the furniture to access the feet. Hex-key leveling feet M8 that adjust from above for situations where below-furniture access is limited or impractical.
The combination is particularly valuable on furniture that gets repositioned frequently (smooth base benefit) and sits in positions where the feet are hard to reach (hex-key benefit). Conference tables pushed against walls, office desks in corner positions, and display fixtures in tight retail layouts all benefit from both features simultaneously. In environments where furniture layout changes weekly or daily, smooth-base hex-key adjustable leveling feet reduce the total time spent on furniture maintenance by combining sliding convenience with tool-assisted leveling in a single component at each leg.
Smooth-base hex-key adjustable leveling feet serve a specific use case: furniture where both easy sliding and from-above adjustment are needed. The hex-key feature adds value when hand access to the base is restricted.
Installation is the same screw-in process as every leveling foot. The hex socket does not change how the foot installs. It only adds an additional way to adjust the height after installation.
For furniture manufacturers and facility managers, smooth-base hex-key adjustable leveling feet simplify the specification for furniture that needs both easy repositioning and tool-assisted leveling. Two SKUs: M8 × 14 and M8 × 33 mm. Choose based on the floor unevenness the furniture will encounter. Hex key leveling feet for furniture that will be placed against walls, in corners, or in tight layouts where hand access below is restricted.
On commercial projects, include a hex key in the furniture delivery kit so staff have the tool immediately available. Smooth-base hex-key adjustable leveling feet are compatible with all M8 round, square, and rectangular threaded inserts. For production quantities, visit Business Solutions.
Smooth-base hex-key adjustable leveling feet provide the same sliding performance as standard smooth-base feet. The smooth, rib-free PA bottom glides over polished concrete, glazed tile, sealed hardwood, luxury vinyl, and laminate. On textured or soft surfaces (matte tile, carpet, rubber), the sliding advantage is reduced.
For floors where scratch prevention is critical, the smooth PA base provides gentler contact than ribbed alternatives during both static load and sliding. For dedicated PA6 scratch protection with a low-profile base, see low-profile with pad. For standard base with PA6 pad, see standard base with pad.
The leveling foot range offers two different from-above adjustment methods. Smooth-base hex-key adjustable leveling feet use a hex socket for an Allen wrench. Notched thread leveling feet use a screwdriver slot for a flathead screwdriver. Both solve the same access problem with different tools.
Smooth base only. M8. Allen wrench provides precise torque control and multi-turn adjustment without repositioning the tool. The hex key stays engaged in the socket through continuous rotation in either direction. Better for fine, precise adjustments where fractional turns matter.
Available on standard and low-profile bases. M8 and M10. Flathead screwdriver fits the slot. Most people have a screwdriver readily available. The screwdriver must be repositioned after each partial turn. Better for quick, rough adjustments where a screwdriver is more accessible than a hex key.
The same leveling and sliding functions as smooth-base leveling feet, with the added convenience of from-above adjustment. The National Wood Flooring Association (NWFA) recommends protective contact surfaces on all furniture legs, and the smooth PA base provides gentler floor contact than ribbed alternatives.
The primary advantage of the hex-key feature. On a conference table pushed against the wall after a meeting reconfiguration, the back legs are inaccessible for hand adjustment. A hex key inserted through the tube from above reaches the socket and adjusts the foot without moving the table away from the wall. Allen wrench adjustable leveling feet that solve the access problem.
The smooth base advantage. Furniture slides when pushed. The rib-free PA bottom glides over polished concrete, tile, hardwood, and luxury vinyl. Unlike dragging furniture with ribbed or unprotected bases, the smooth surface reduces scuffing during repositioning. Combined with hex-key adjustment, the furniture can be slid to a new position and re-leveled from above without lifting or crawling under the table.
A hex key provides mechanical leverage that hand-gripping a smooth base cannot. Fine partial turns are easier with a hex key. On furniture with four or more legs, cycling through each leg with a hex key is faster than hand-adjusting each base individually from below. On commercial furniture that gets re-leveled after every reconfiguration, the time savings accumulate.
The hex socket does not reduce the M8 threaded connection’s 80 kg per foot capacity. The socket is in the rod head above the threaded section and does not weaken the thread engagement. On a four-legged table, 320 kg total capacity handles standard commercial furniture weight.
| Length (L) |
|---|
| 14 mm (0.55″) |
| 33 mm (1.30″) |
Thread size must match the insert in your furniture leg.
| Specification | Detail |
|---|---|
| Material | Polyamide body with a hot-dip galvanised steel thread |
| Sizes | 2 sizes |
| Diameter (Ø) | 30 mm (1.18″) |
| Length (L) | 14 to 33 mm (0.55″ to 1.30″) |
| Height (H) | 9 mm (0.35″) |
| Thread (M) | M8 |
| Static load (SL) | 80 kg |
| Mounting | Screws into a threaded insert |
| Colors | Black |
| Floor compatibility | Any floor, levels on uneven ground |
| Minimum order | Sold in a minimum of 4, then any quantity you need |
The hex socket accepts a standard metric hex key (Allen wrench). Check the socket diameter on the rod head to confirm the exact size. Standard metric hex key sets include the required size. No special or proprietary tools are needed.
When you cannot easily reach under the furniture to grip and turn the base. Recessed legs, furniture already positioned against a wall, heavy items on top that make tipping impractical, or furniture with low ground clearance. The hex key inserts from above into the rod head and turns the threaded rod without touching the base. The foot extends or retracts without hand access below.
No. The hex socket is in the top of the threaded rod head, not on the base bottom. The smooth, rib-free base is identical to standard smooth-base leveling feet. The bottom surface slides the same way. The hex socket just adds an alternative adjustment method from above.
Yes. The hex socket is an additional adjustment option, not a replacement. You can turn the base by hand like any standard leveling foot, or insert a hex key from above and turn the rod. Both methods adjust the height. Use whichever is more convenient for the situation.
The hex socket in the rod lets you set each foot precisely with an Allen key, from above, after the furniture is in position. Useful where the setting has to be exact and stay put.
The hex socket in the rod lets you set each foot precisely with an Allen key, from above, after the furniture is in position. Useful where the setting has to be exact and stay put.
Smooth-Base Hex-Key Adjustable Leveling Feet
