Square Threaded Inserts

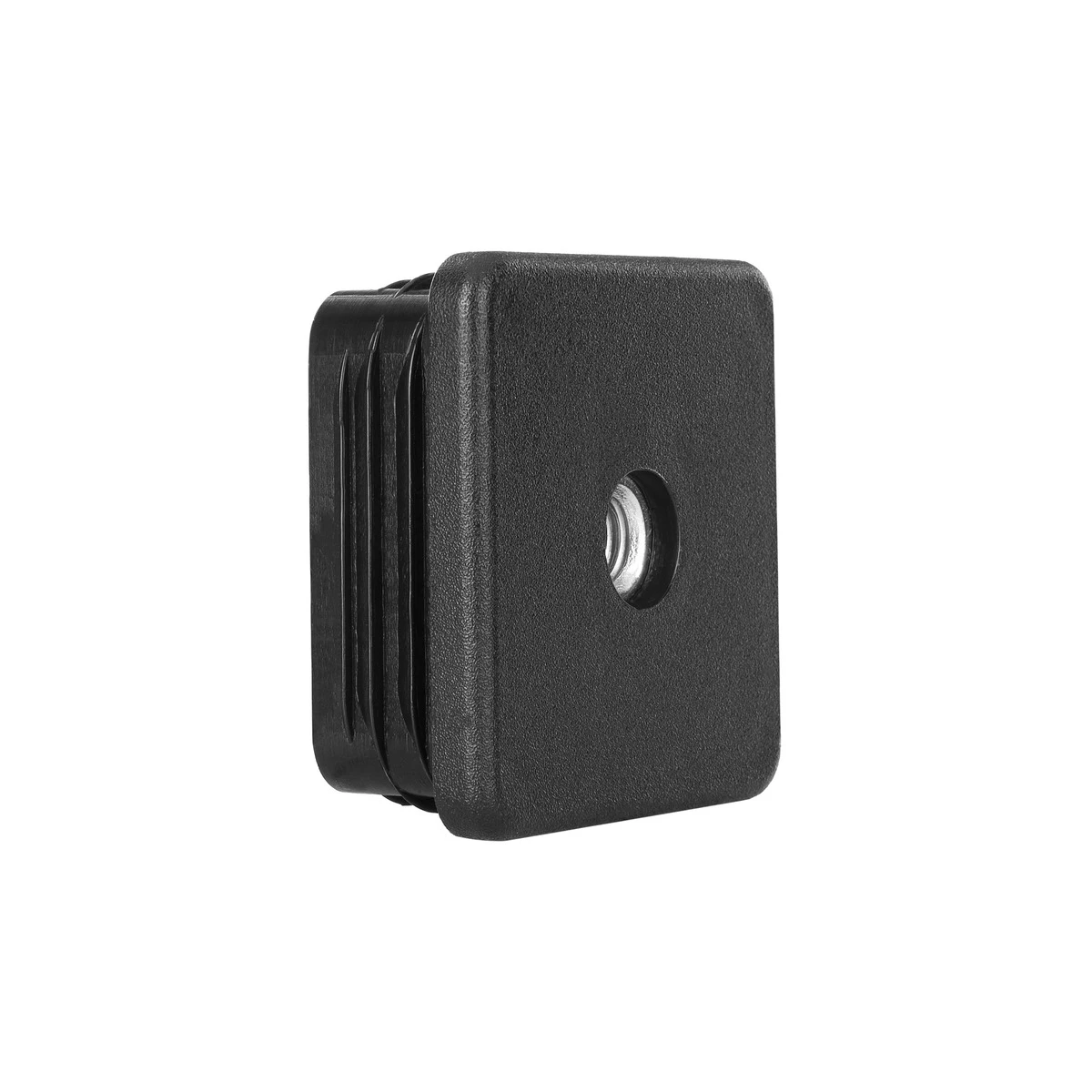

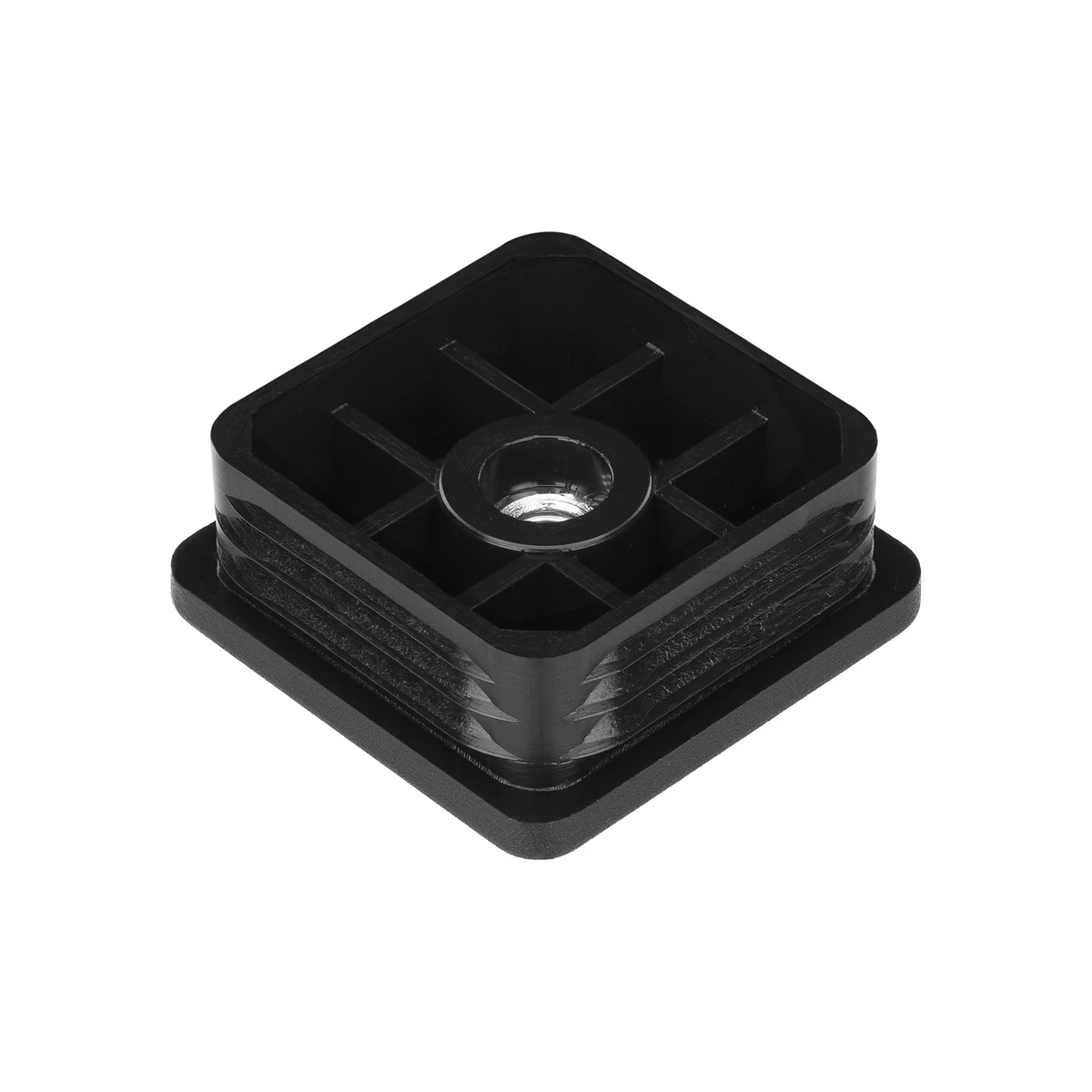

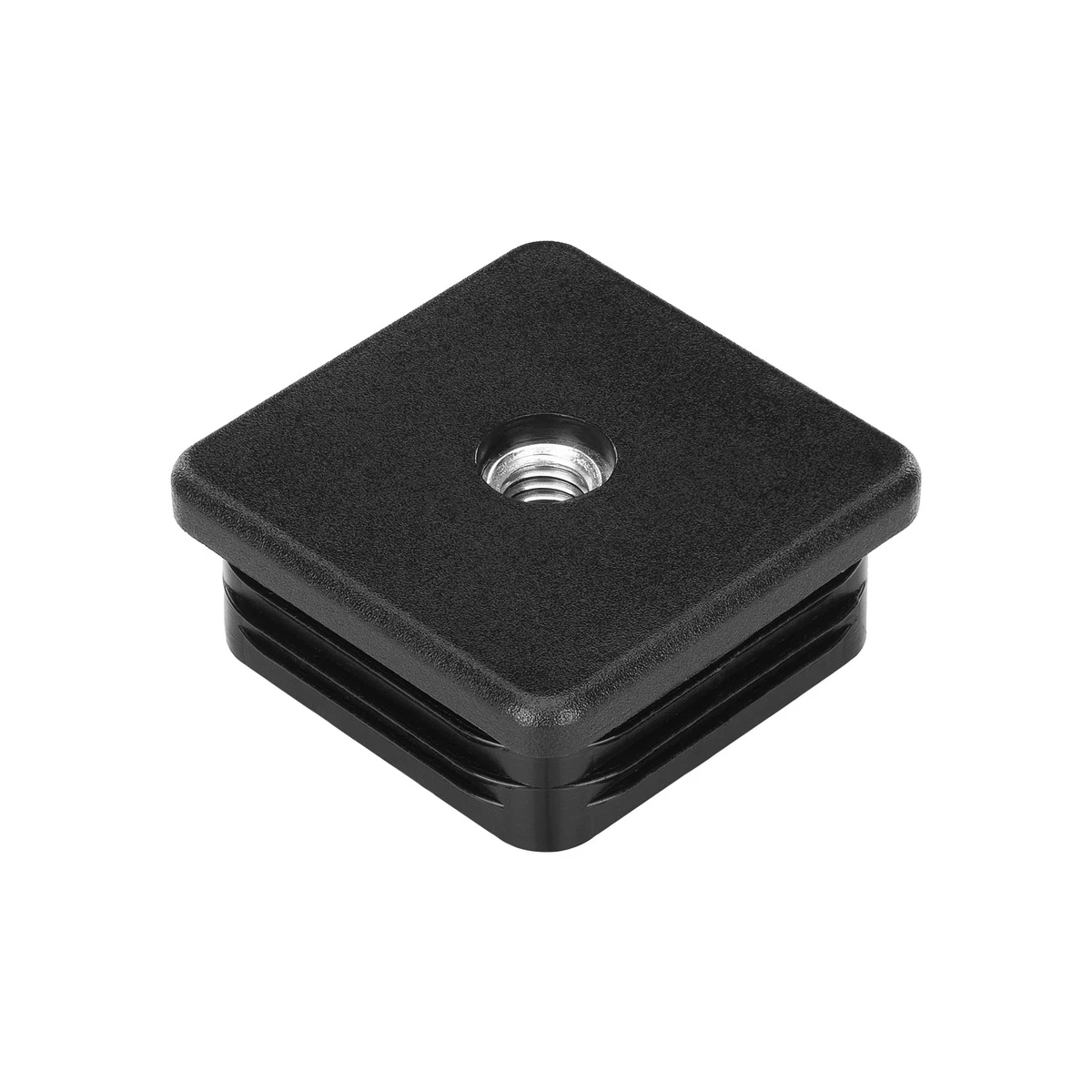

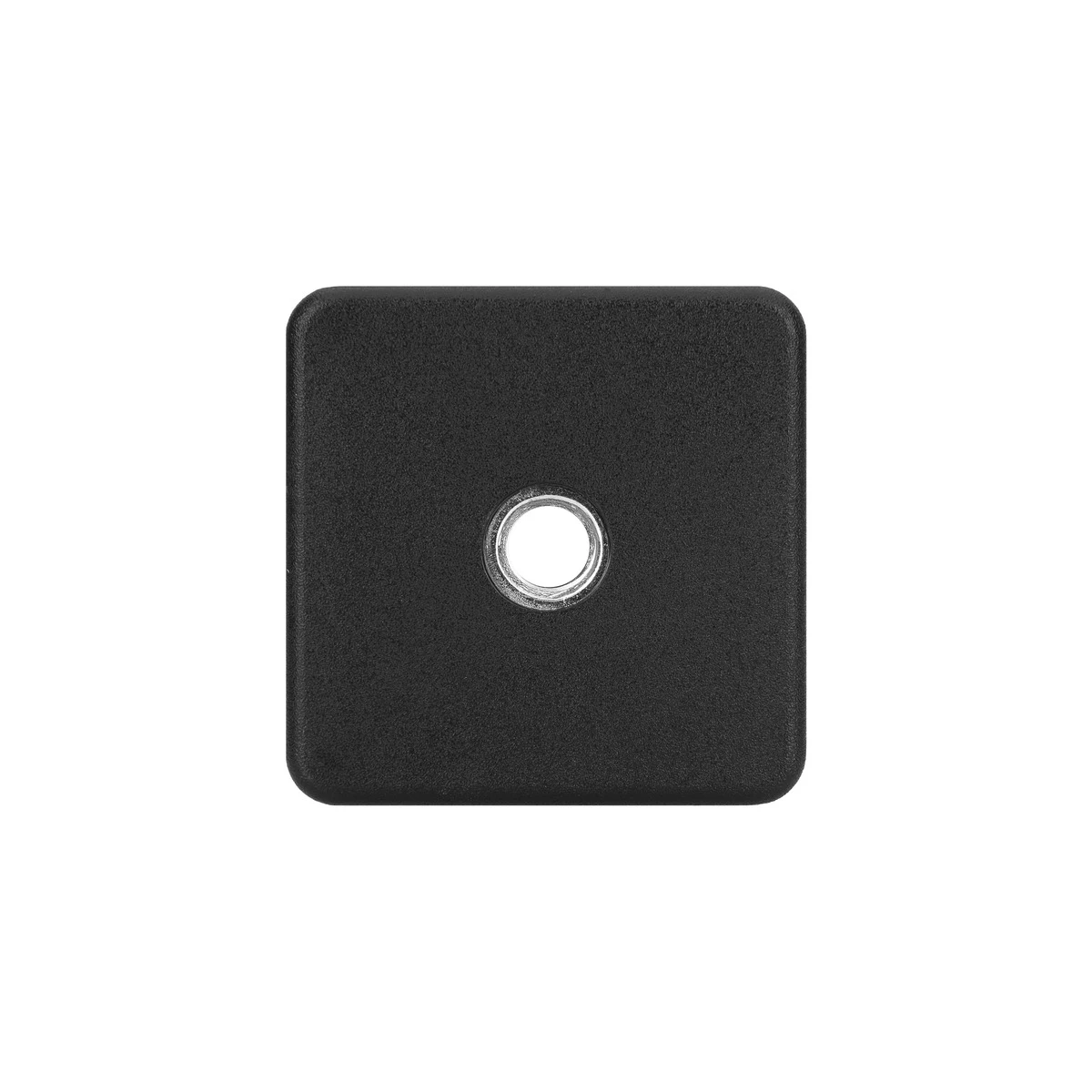

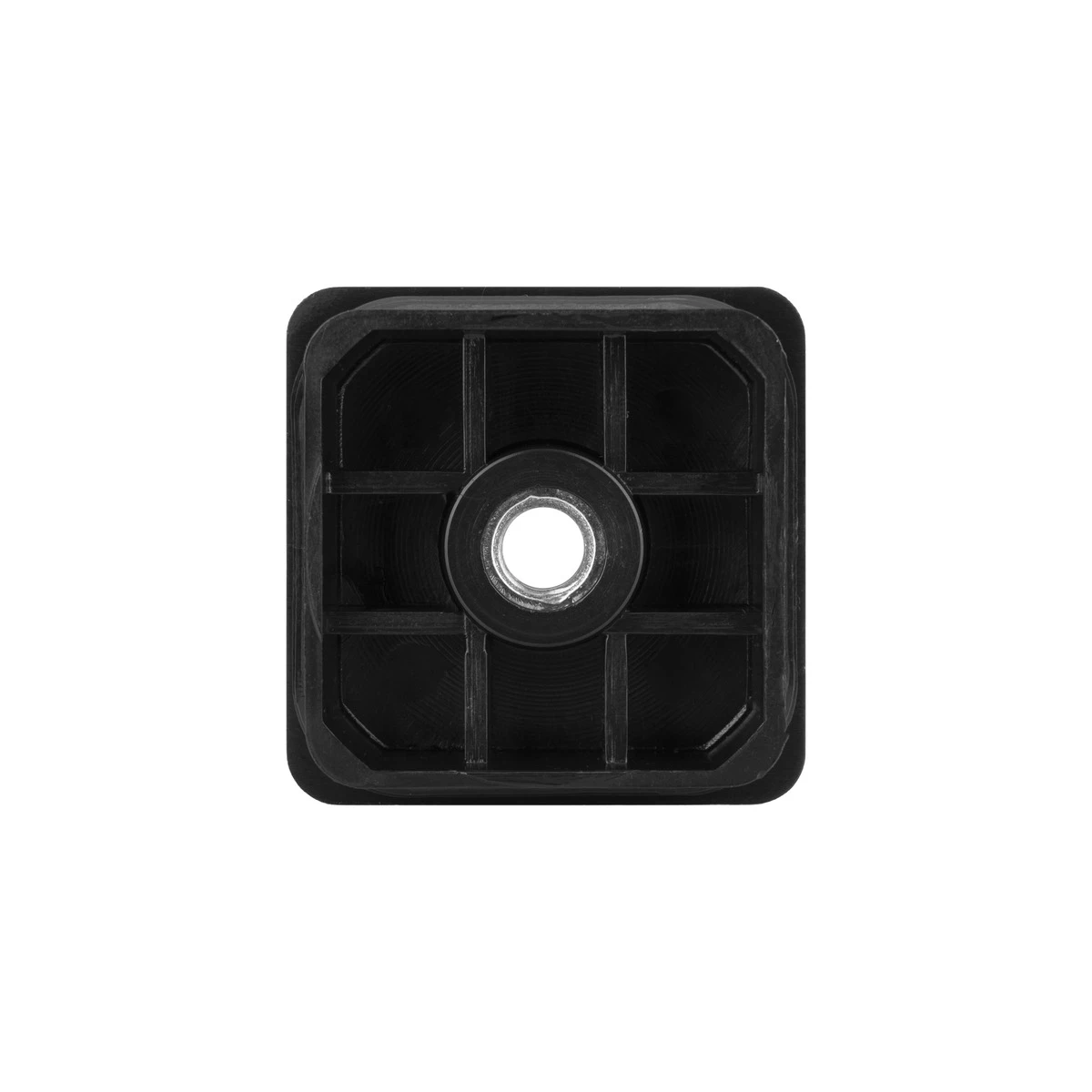

Two components in one product. The PA body press-fits inside the square tube and grips all four interior walls with flexible ribs. The zinc-plated steel nut is pre-installed in the center of the PA body. A leveling foot screws into the nut, and the nut transfers the load through the PA body to the tube walls.

Step 1. Press the insert into the tube

Align the insert corners with the tube corners. Push in by hand or tap with a rubber mallet. The PA body grips all four walls. The insert seals the tube end and anchors the nut.

Step 2. Screw in the leveling foot

Any leveling foot with the matching M thread screws directly into the nut. No drilling, no tapping, no additional hardware. The thread engagement is immediate.

Step 3. Adjust the height

Turn the leveling foot to raise or lower that corner. Each leg adjusts independently. On uneven floors, independent adjustment at each leg eliminates wobble and levels the furniture precisely.

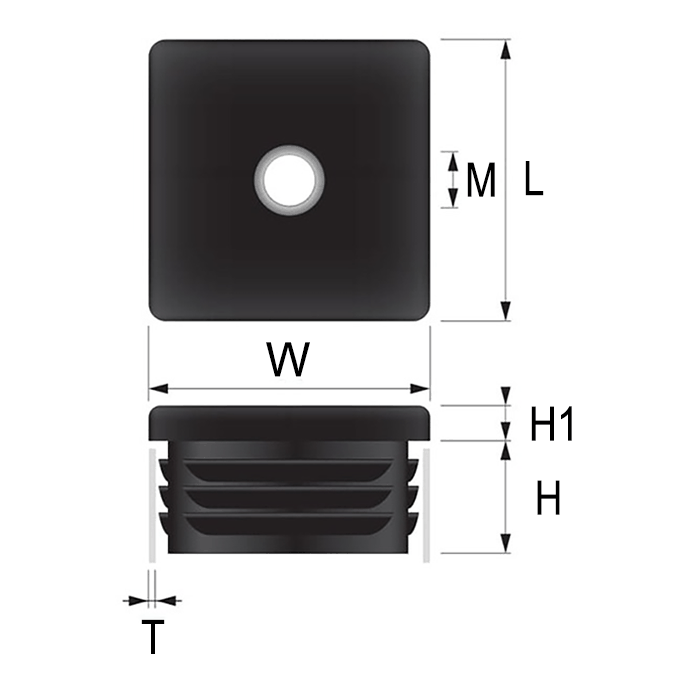

Two tube measurements plus the thread size. Square threaded inserts require the outside dimension of the square tube, the wall thickness, and the M thread of the leveling foot.

Step 1. Measure the outside dimension

Use calipers across one side of the square tube, outside edge to outside edge. Confirm both sides are equal. Available sizes: 20, 25, 30, 40, 45, and 50 mm.

Step 2. Measure the wall thickness

Use calipers at the tube end. All these inserts require a 1 to 2 mm wall. The PA body ribs are engineered for this range.

Step 3. Confirm the thread size

Check your leveling foot's M thread. Not all thread sizes are available on all tube sizes. The 20 × 20, 25 × 25, and 45 × support M8 only. The 30 × 30, 40 × 40, and 50 × support multiple threads.

Corner alignment: Square threaded inserts must enter the tube with corners aligned to corners. The square profile means the insert only fits in one rotational orientation (or rotated 90°, 180°, 270°, which are all equivalent on a square). Align and press evenly.

Same press-fit installation as standard square tube plugs, with attention to nut orientation. The nut must face the floor so the leveling foot can screw in from below. A rubber mallet is recommended for all sizes because the PA body with the steel nut is heavier and denser than a standard PE plug.

What you need

• The correct square threaded insert matched to your tube size, wall thickness, and thread
• A rubber mallet (recommended)
• Clean, dry tube ends free of burrs, weld spatter, or debris in all four corners
• The leveling foot (for installation after the insert is seated)

Installation steps

1. Inspect the tube end. Remove burrs, sharp edges, and debris from all four interior walls and corners. Square tubes collect debris in the corners that can prevent the insert from seating.
2. Align the square threaded insert with the tube opening. Match corners to corners. The nut faces outward (toward the floor).
3. Press the insert into the tube by hand, then tap with a rubber mallet until the head sits flush with the tube edge.
4. Screw the leveling foot into the nut by hand. Turn clockwise to the desired height. Adjust each leg independently.

Everything a standard square tube plug provides, plus the ability to accept adjustable leveling feet. The National Wood Flooring Association (NWFA) recommends protective measures on all furniture legs, and square threaded inserts deliver that protection while adding height adjustment that standard plugs lack.

Adjustable leveling on square-legged furniture

The primary function. Tables wobble on uneven floors. Workbenches need precise leveling for tool accuracy. Display fixtures need uniform height across a row. Square threaded inserts provide the M-threaded connection that leveling feet require. Each leg adjusts independently.

Floor protection through leveling feet

The leveling foot becomes the floor contact surface. Most feet have base pads (PE, rubber, or anti-slip TPE) that protect floors better than bare metal. Unlike leaving furniture on unlevel bare metal legs, the combination of insert plus leveling foot provides adjustment and protection. Browse our adjustable leveling feet for options with different base materials and load ratings.

Tube sealing on square profiles

Same sealed end as standard square tube plugs. The PA body fills the square tube opening and prevents moisture, debris, and insects from entering. On steel tubing, sealed ends prevent internal corrosion. The nut does not compromise the seal because it is embedded within the PA body.

The broadest square threaded insert range

6 tube sizes, 3 thread options, No other range covers as many square tubing specifications with threaded connections. From the smallest 20 × 20 mm lightweight fixtures to the largest 50 × 50 mm industrial workbenches, square threaded inserts provide the leveling anchor for virtually every square tube specification in the furniture industry.

The M thread determines the leveling foot diameter and load capacity. Smaller threads handle lighter loads. Larger threads handle heavier loads. Not all thread sizes are available on all tube sizes because the PA body must have enough cross-section to house the nut securely.

M8: universal

Available on all 6 tube sizes. Handles standard residential and commercial furniture weight. The default choice for most tables, desks, and display fixtures in both residential and commercial settings. If you are unsure which thread to specify, M8 covers most applications.

M10: heavy commercial

Available on 30 × 30, 40 × 40, and 50 × 50 mm. For heavy conference tables, library tables, and commercial furniture that supports substantial weight. Larger thread provides more metal contact and greater stripping resistance under sustained heavy loads.

M12: industrial

Available on 30 × 30 and 40 × 40 mm. For the heaviest applications: industrial workbenches, laboratory tables, and furniture supporting heavy equipment. The largest thread provides maximum load capacity through the threaded connection.

Square threaded inserts are designed for any hollow square furniture leg that needs an adjustable leveling foot. The 6-size, 3-thread range covers virtually every square tubing specification in the furniture industry.

Ideal applications

• Tables and desks with 20 × 20 to 50 × 50 mm square tube legs on uneven floors
• Commercial and industrial workbenches needing precise leveling
• Restaurant, hotel, and conference tables where wobbles are unacceptable
• Retail display fixtures and shelving with adjustable height
• Any hollow square furniture leg where height adjustment or floor leveling is needed

Not ideal for

• Legs that do not need leveling: use standard square tube plugs
• Round tube legs: use round threaded inserts
• Rectangular tube legs: use rectangular threaded inserts
• Corrosive environments: use stainless steel square threaded inserts
• Solid (not hollow) square legs: inserts require a hollow interior
