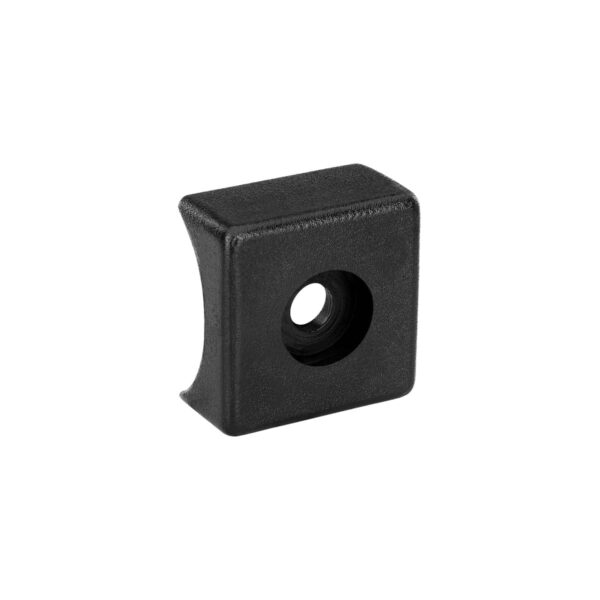

Round tube sled base glides square base mount underneath the horizontal runner of sled-base (cantilever) furniture with Ø 25 mm round tubes. The PA saddle cradles the tube and the square base provides equal floor contact in all directions. Sled runner glides square footprint for balanced weight distribution. One screw secures the glide to the runner.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Sled-base furniture with Ø 25 mm round tube runners needs glides that match the tube diameter precisely. Round tube sled base glides with a square base provide a Ø 25 mm saddle that cradles the runner tube from below and a 25 × 25 mm square base that contacts the floor with equal area in all directions. The square footprint provides balanced stability whether the chair slides forward, backward, or sideways, making it ideal for multi-directional seating environments like conference rooms and collaborative workspaces.
PA (polyamide) saddle glide for Ø 25 mm round tube sled runners. Round tube sled base glides with square base provide floor protection and smooth sliding on sled-base chairs, conference seating, and cantilever furniture. One screw mount. Base 25 × 25 mm. Total height 11 mm. Black and grey. Sold individually.
Both colors share identical dimensions, material, and mounting. Choose the color that matches your furniture frame finish.
PA body. Ø 25 mm saddle. Base 25 × 25 mm. 5.3 g. One screw hole (Ø 5.7 mm). For black, dark grey, or dark-finished sled frames.
PA body. Ø 25 mm saddle. Base 25 × 25 mm. 5.3 g. One screw hole (Ø 5.7 mm). For grey, silver, chrome, or light-finished sled frames.
For Ø 20 mm tube: rectangular base. For Ø 28 mm with pad slot: square base pad slot. For Ø 20 mm with pad slot: round base pad slot or rectangular base pad slot. For clip-on (no screws): clip-on glides. For custom colors, contact Business Solutions.
The square base (25 × 25 mm) on round tube sled base glides provides equal floor contact area in all directions. On sled furniture that gets pushed sideways (collaborative seating pulled to different positions around a table, conference chairs shifted to face different speakers), the square base provides the same stability and floor contact regardless of the direction of movement.
The rectangular base (25 × 20 mm) for Ø 20 tubes is narrower in one direction, which makes it more compact but provides less lateral stability. The square base provides 25% more contact area (625 mm² vs. 500 mm²) and equal stability in all directions. Square base sled base chair glides are the standard choice for Ø 25 mm sled furniture where multi-directional stability matters.
The 25 × 25 mm base matches the Ø 25 mm tube diameter. The base does not extend beyond the tube sides, keeping the glide visually proportional and preventing the base edges from catching on floor transitions or carpet edges. The glide sits flush under the tube from any viewing angle.
The saddle on round tube sled base glides must match the runner tube diameter. Measure the outside diameter of the horizontal runner tube with calipers or a tape measure. Standard metric tube sizes for sled furniture are Ø 10, 20, 25, 28, and 30 mm. If your tube measures approximately 25 mm (about 1 inch), this is the correct glide.
If the tube measures approximately 20 mm, use rectangular base glides. If approximately 28 mm, see square base with pad slot. If approximately 30 mm, see rectangular base pad slot (two-hole). If the tube is Ø 10 mm, see clip-on glides. If the runner is oval or rectangular (not round), see oval tube end glides or rectangular tube end glides.
Installation requires a screwdriver and the appropriate self-tapping screw (not included). The glide mounts underneath the runner with the saddle cradling the tube and the flat square base facing the floor.
round tube sled base glides with square base provide plain PA floor contact. This is suitable for all hard floors and carpet.
Premium hardwood where micro-scratching from PA under sustained load is a concern. High-end luxury vinyl where every contact mark matters. Freshly refinished floors where the finish is still curing. For these surfaces, pad slot versions with a dedicated PA6 pad provide additional scratch protection beyond standard PA contact. See round base pad slot or rectangular base pad slot for Ø 20 mm tubes with PA6 pad options.
The number of glides per chair depends on the runner length and the manufacturer’s original glide spacing. Most sled base chairs use 2 to 4 glides per runner (4 to 8 per chair). Longer runners on larger chairs may use more.
To determine the correct quantity, tip the chair and count the existing glide positions on each runner. Each position needs one glide. If you are adding glides to a chair that never had them, space the glides evenly along each runner at intervals of 100 to 150 mm, with one glide near each end of the floor-contact section. The goal is even weight distribution across all glide points so no single glide bears a disproportionate share of the load.
Round tube sled base glides are sold individually, not in sets. Order the exact count you need for your chairs. For a fleet of 50 chairs needing 4 glides each, order 200 glides plus a 10% spare stock for replacements.
The sled base glide range includes products for different tube sizes, base shapes, mounting methods, and floor contact types. The selection process starts with three measurements.
Measure the outside diameter of the round runner tube. This product fits Ø 25 mm. Other products in the range fit Ø 10, 20, 28, and 30 mm. The saddle must match the tube for a secure, non-rocking fit.
Mid-runner (along the straight section), corner (at the bend where the runner meets the riser), or end (capping the open tube end). This product is a mid-runner glide. For corners, see corner glides. For ends, see end glides.
Plain PA (this product) for standard floors. Pad slot (accepts PA6 pad) for scratch-sensitive floors. The PA6 pad provides a softer, lower-friction contact surface for premium hardwood and luxury vinyl.
PA (polyamide) body throughout. The same engineering polymer used across the entire Superior Glide product range for furniture glides, furniture pads, leveling feet, and tube plugs. PA provides high tensile strength for load bearing, excellent abrasion resistance for long service life under sliding contact, low friction for smooth chair movement, and impact resistance for the rough handling that commercial seating endures.
The PA compound resists UV exposure, moisture, cleaning chemicals, and temperature extremes found in standard indoor environments. The material does not absorb moisture from floor cleaning, does not degrade from cleaning chemicals, and maintains its mechanical properties across the full range of indoor temperatures. No maintenance or treatment is required for the PA material itself.
Floor protection, noise reduction, and smooth multi-directional movement on sled base furniture with Ø 25 mm round tube runners. The National Wood Flooring Association (NWFA) recommends protective contact surfaces on all furniture contact points, and round tube sled base glides provide this protection at every point where the runner meets the floor.
The PA base replaces the bare metal tube-to-floor contact with smooth, non-scratching PA. On hardwood, tile, luxury vinyl, laminate, and polished concrete, the PA surface prevents scratching and scuffing. The square base distributes the chair’s weight across 625 mm² at each glide point, reducing pressure on the floor surface compared to the narrow contact line of a bare metal runner. Sled base glides Ø 25 mm tube that protect all hard floors and carpet.
The square base provides equal contact and stability in all directions. On conference chairs that get pulled sideways, rotated at the table, or shifted diagonally, the square footprint does not tilt or rock regardless of the movement direction. Unlike leaving sled runners unprotected, round tube sled base glides provide directionally balanced protection.
Bare metal runners on smooth, hard floors create scraping and squealing noise when chairs move. The PA base absorbs contact noise and provides quiet sliding. In conference rooms where chairs slide during meetings, the noise reduction from PA glides contributes to a more professional acoustic environment. Cantilever chair glides Ø 25 that eliminate the metal-on-floor noise.
The glides also protect the runner tube finish. Without glides, the bottom of the tube wears through its paint, powder coat, or chrome plating from floor contact. Round tube sled base glides lift the tube off the floor, preserving the tube finish and extending the furniture’s appearance and structural life.
round tube sled base glides wear from the bottom up as the PA base thins from floor contact during sliding. The wear rate depends on the floor surface roughness, the frequency of chair movement, and the weight on the chair. On heavily used conference chairs in commercial environments, glides may need replacement every 12 to 24 months.
Signs that replacement is needed: the chair wobbles or rocks on one side, scuff marks appear on the floor from the runner tube, or the base has worn thin enough that the metal tube is close to contacting the floor. Replace all glides on a chair at the same time for even floor contact across both runners. Mixing new and worn glides on the same chair creates uneven height that can cause wobbling.
For furniture manufacturers and facility managers, round tube sled base glides with square base are specified for Ø 25 mm sled runners on standard commercial and institutional furniture. The square base is the standard specification for this tube size. Two color options (black and grey) cover the most common sled frame finishes.
On institutional orders (schools, hospitals, corporate offices), order replacement round tube sled base glides in bulk alongside the furniture purchase. Having replacement stock on hand means worn glides get replaced promptly rather than allowing bare runners to damage the floor. For production quantities, visit Business Solutions.
Conference rooms, training centers, schools, hospitals, and corporate offices with Ø 25 mm sled base seating. The Ø 25 mm tube is one of the most common sled runner diameters on commercial-grade cantilever chairs manufactured in Europe and North America. Round tube sled base glides with square base are the standard replacement glide for this tube size across the commercial furniture industry. In training centers where chairs are rearranged between sessions and stacked at the end of each day, the glides endure frequent sliding, stacking compression, and rough handling. The PA material absorbs this treatment without cracking or deforming. Available for bulk orders. For commercial pricing, visit Business Solutions.
Home office cantilever chairs, dining chairs with Ø 25 mm sled bases, and any residential sled furniture on finished floors. A single sled chair with worn or missing glides can scratch hardwood or luxury vinyl within days. Round tube sled base glides are a preventive maintenance item that costs a fraction of a floor repair. For scratch-sensitive residential hardwood or luxury vinyl where maximum protection is the priority, consider whether a pad slot version is available for your tube size or apply a separate self-adhesive pad to the glide base for additional floor protection beyond standard PA contact. The adhesive pad adds a PA6 layer to the existing PA glide base for enhanced scratch prevention on premium residential floors.
Inspect sled base glides periodically for wear. On chairs that move frequently (conference rooms, classrooms), check every 6 to 12 months. Look for thinning of the PA base, uneven wear patterns that cause the chair to tilt, or visible proximity of the runner tube to the floor through the worn glide. Replace worn glides immediately to prevent floor damage from the metal runner contacting the floor through the worn PA. On stacking chairs, also inspect the glides after each stacking cycle because the compression during stacking can crack or dislodge glides that are already partially worn.
Round tube sled base glides with square base are sold individually. Order the exact count that matches the number of glide positions on your furniture. Keep replacement stock on hand for commercial environments where glide wear is a regular maintenance item. The sled runner glides with a square footprint maintain consistent floor protection throughout the service life when replaced at the first sign of significant wear at each glide position.
Round Base Pad Slot (Ø 20/28) Sold in packs of 4.
| Specification | Details |
|---|---|
Product Type |
Round Tube Saddle Feet Base with Sled Glide |
Materials |
PA (Polyamide) saddle and base |
Floor Compatibility |
Hard floors and low-pile carpet |
Furniture Compatibility |
Sled chairs, tables, benches, office and school seating |
Leg Compatibility |
Ø 25 mm round tubular frames |
Base Size |
25 mm × 25 mm (0.98" × 0.98") |
Mounting Style |
Central screw hole (screw not included) |
Color Options |
Black, Grey |
Installation Type |
Press-fit with optional screw securing |
Key Benefits |
Floor protection, smooth movement, stable grip |
Indoor / Outdoor |
Indoor | Covered Outdoor | Uncovered Outdoor |
| Tube Diameter (Ø3) | Base Dimensions (L x W) | Hole Center (L1) | Hole Diameter (Ø) | Hole Diameter (Ø1) | Total Height (H) | Base Height (H1) |
|---|---|---|---|---|---|---|
Ø 25 mm (0.98") |
25 mm × 25 mm (0.98" × 0.98" ) |
12 mm (0.47") |
5.7 mm (0.22") |
11 mm (0.43″) |
12 mm (0.47″) |
6 mm (0.24″) |
The Ø 25 mm tube diameter matches a 25 × 25 mm square base. The square footprint provides equal contact area in all directions, which is beneficial on sled furniture that gets pushed sideways as well as forward and backward. The rectangular base (25 × 20 mm) for Ø 20 tubes is narrower because the smaller tube allows a more compact footprint. Each base shape is proportioned to its tube diameter.
Yes. The Ø 25 mm saddle accommodates standard 25 mm tubing, which may measure slightly under or over depending on the tube manufacturer’s tolerances. If the saddle fits snugly on the tube without rocking or being too tight, it is the correct size. If the tube is clearly 28 mm or larger, use square base with pad slot (Ø 28).
Both have a total height of 11 mm from the floor to the top of the saddle. The saddle depth differs slightly (12 mm on the Ø 25 square base vs. 10 mm on the Ø 20 rectangular base) because the larger tube requires a deeper saddle curve to cradle the tube securely.
No. The Ø 25 mm saddle is too large for a Ø 20 mm tube. The tube would sit loosely in the saddle and rock side to side. For Ø 20 mm tubes, use rectangular base glides. Always match the saddle diameter to the tube diameter.
Not in the standard one-hole mid-runner format. For Ø 25 mm with a pad slot on a corner/bend mount, see corner sled base glides (Type A, Ø 25). For Ø 25 mm mid-runner with plain PA contact, this square base product is the standard specification.
