Round tube clip-on sled base glides with rectangular base snap onto Ø 10 mm round tube sled runners without screws. The PA clip grips the tube from both sides, holding the glide in position through friction. Clip-on furniture glides and wireframe sled glides with no-screw sled base glides design. Ø 10 mm clip glide. No drilling, no fasteners. L = 28.5 mm, W = 19 mm. Base H = 4.5 mm. Three colors: anthracite grey, white, natural. 4.7 g. Sold individually. Sold in packs of 4.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Not all sled base furniture allows screw mounting. Lightweight wireframe sled chairs with Ø 10 mm round tube runners have thin tube walls that may not accept screws, and drilling into small-diameter tubing risks weakening the frame. Clip-on sled base glides solve this by snapping onto the tube from below without any fasteners. The integrated PA clip grips the Ø 10 mm tube through elastic friction, holding the glide in position under the chair’s weight. No screws, no drilling, no tools. Push the glide onto the tube until it clicks, and the installation is complete. Also known as clip-on furniture glides, wireframe sled glides, no-screw sled base glides, or Ø 10 mm clip glide.
PA (polyamide) clip-on saddle glide for Ø 10 mm round tube sled runners. Clip-on sled base glides with rectangular base provide floor protection on lightweight wireframe sled furniture without modifying the tube. L = 28.5 mm, W = 19 mm. H = 14.5 mm (including clip arms). Base H = 4.5 mm (floor contact). Three colors: anthracite grey, white, natural. 4.7 g. Sold individually.
Three color options cover the most common wireframe sled furniture finishes. All three share identical dimensions, material, and clip mechanism.
. Dark charcoal. L = 28.5 mm. W = 19 mm. H = 14.5 mm. Base H = 4.5 mm. 4.7 g. For black, dark grey, and gunmetal wireframe sled chairs.
. Bright white. L = 28.5 mm. W = 19 mm. H = 14.5 mm. Base H = 4.5 mm. 4.7 g. For white and chrome wireframe sled chairs.
. Off-white/cream. L = 28.5 mm. W = 19 mm. H = 14.5 mm. Base H = 4.5 mm. 4.7 g. For light-colored, natural-finished, or brass-toned wireframe sled furniture.
For screw-mount sled glides: rectangular base (Ø 20), square base (Ø 25), or square base pad slot (Ø 28). For custom colors, contact Business Solutions.
Clip-on sled base glides use an integrated PA clip instead of screws. The clip consists of two flexible arms that extend upward from the base. When pushed onto the tube from below, the arms flex outward to accommodate the tube diameter, then snap back around the tube to grip it from both sides.
Position the glide below the runner tube. Push upward. The clip arms flex around the Ø 10 mm tube and snap into position. No tools needed. The entire installation takes seconds per glide. For a chair with 4 to 8 glide positions, the complete installation is under a minute.
Pull the glide downward off the tube. The clip arms flex outward to release. The clip is designed for multiple installation and removal cycles without losing grip strength or deforming. This allows repositioning during initial setup and easy replacement when glides wear.
The Ø 10 mm tube diameter is the smallest in the sled furniture range. These thin-walled tubes present challenges for screw mounting: the wall may be too thin for a self-tapping screw to grip securely, drilling creates a stress point that can weaken the small tube, and a screw head inside a Ø 10 mm tube can obstruct other internal components.
Clip-on sled base glides eliminate all of these issues. No drilling means no weakened tube walls. No screws means no internal obstruction. No tools means any person can install, reposition, or replace the glides without maintenance support. For lightweight wireframe sled furniture where the frame is a design element (visible from all angles), the clean clip-on attachment preserves the frame’s appearance without visible screw heads on the underside.
The Ø 10 mm tube is used on lightweight wireframe sled chairs, side tables, magazine racks, and plant stands. These pieces use thin steel or chrome wire bent into sled runner shapes. The wireframe aesthetic emphasizes the visible frame as a design element rather than hiding it behind upholstery or panels. Common in modern residential interiors, reception areas, cafes, co-working spaces, and design-forward commercial environments where furniture appearance is part of the interior design concept.
Despite the lightweight construction and the thin tube walls, wireframe sled furniture still needs floor protection. The thin metal wire concentrates the chair’s weight on a very small contact line, creating high pressure on the floor surface per linear millimeter of contact. Clip-on sled base glides replace this thin wire-to-floor contact with the broader 28.5 × 19 mm PA base, reducing floor pressure by distributing the same load across a significantly larger floor contact area. The pressure reduction is proportionally greater on Ø 10 mm wire than on larger tubes because the starting contact width is so much narrower.
Clip-on sled base glides provide PA floor contact suitable for all hard floors and carpet. The PA base works on hardwood, luxury vinyl, tile, polished concrete, laminate, and commercial carpet or rugs. The PA base prevents the scratching and marking that bare wire runners cause on finished floors.
Premium hardwood and luxury vinyl where the thin wire runner would create deep, narrow scratch lines that are difficult and expensive to repair. The wire diameter concentrates more pressure per millimeter than larger tubes, making floor protection even more critical on Ø 10 mm wireframe furniture than on larger-tube sled chairs. On wide-plank hardwood in residential dining rooms, a single unprotected wireframe chair can create visible scratch patterns across multiple planks within the first week of use. Clip-on sled base glides prevent this damage entirely with no modification to the furniture frame.
Floor protection on lightweight wireframe sled furniture without modifying the frame. The National Wood Flooring Association (NWFA) recommends protective contact on all furniture contact points, and clip-on sled base glides provide that protection on the one sled tube diameter where screw mounting is not practical.
The primary advantage over screw-mount alternatives. No drilling, no screw holes, no weakened tube walls, no tools required. The wireframe stays structurally intact and visually unmarked. For design furniture where the frame is a visible aesthetic element that customers pay a premium for, clip-on sled base glides install without any permanent modification to the frame surface. If the glides are removed at any point, no evidence of installation remains on the tube. The furniture can be sold, returned, or repurposed with no visible marks from the glide installation.
The 28.5 × 19 mm PA base replaces the narrow wire-to-floor contact. Unlike leaving thin wire runners unprotected on finished floors, the PA base distributes the load across a broader area and provides smooth, non-scratching floor contact. On hardwood where wire marks are especially visible and difficult to repair, clip-on sled base glides prevent the damage before it starts.
Count the floor contact points on each runner. Wireframe sled furniture typically has shorter runners than heavy commercial sled chairs, so 2 to 4 glides per runner (4 to 8 per piece of furniture) is common. Space the glides evenly along each runner for balanced weight distribution. If the wireframe has bends that contact the floor, place a glide at each bend as well as along the straight sections to provide complete coverage across all floor contact points.
Clip-on sled base glides are sold individually. Order the quantity that matches your glide positions across all furniture pieces. The three-color selection allows matching different furniture pieces in the same space without custom orders. For a cafe with 20 anthracite wireframe chairs needing 6 glides each, order 120 anthracite grey glides plus a 10% spare stock for replacements during the first service cycle.
PA (polyamide) body and clip arms molded as a single integrated component. The same engineering polymer used across all sled base glides, furniture glides, leveling feet, and tube plugs in the catalog. The PA clip arms have enough elasticity to flex around the tube during installation while maintaining enough rigidity to grip the tube securely under the compressive load of the furniture and occupant. The color is molded into the PA compound during manufacturing, not painted or coated, so it does not chip, peel, or wear away from floor contact over the service life of the glide.
Measure the outside diameter of the wire runner with calipers. If it reads approximately 10 mm, this is the correct glide. The clip is sized specifically for Ø 10 mm tubing. A tube that is significantly larger or smaller will not clip securely. If the tube is Ø 20 mm or larger, screw-mount sled base glides are the appropriate option instead of clip-on.
Wireframe sled furniture is sometimes made with non-standard wire diameters. If your tube measures between 9 and 11 mm, the clip should accommodate the tolerance. If the tube is clearly outside this range, contact Business Solutions for sizing guidance. Clip-on sled base glides are designed for the standard Ø 10 mm wire used by most commercial wireframe furniture manufacturers.
The PA clip arms provide sufficient grip to hold the glide in position under the weight of lightweight wireframe furniture and a seated occupant. The grip mechanics work in the glide’s favor: the chair’s weight pushes the base against the floor, which presses the clip arms tighter around the tube. The heavier the load, the more securely the clip grips.
When the chair is lifted (for moving or stacking), the clip bears only the glide’s own weight (4.7 g), which is well within the clip’s friction capacity. Clip-on sled base glides are not designed for heavy-duty commercial furniture with Ø 28 mm or Ø 30 mm tubes where screw mounting is necessary for the higher loads. They are designed specifically for the lightweight furniture that uses Ø 10 mm wireframe runners.
The sled base glide range includes both clip-on and screw-mount options. The choice depends on the tube diameter and the furniture construction.
Clip-on sled base glides wear from the bottom up as the PA base thins from floor contact during sliding. The wear pattern is similar to screw-mount sled base glides. On wireframe chairs that are used daily in commercial settings (cafes, reception areas), the glides may need replacement every 12 to 24 months depending on the floor surface roughness and the frequency of movement.
Additionally, the clip arms can lose elasticity over time from repeated flexing (installation, removal, repositioning) and from sustained compression against the tube. If the clip no longer holds the tube firmly (the glide slides along the tube under lateral force), replace the glide. The clip-on design makes replacement fast: pull off the old glide, push on the new one. No tools, no screws to remove and reinstall.
For furniture manufacturers producing wireframe sled furniture with Ø 10 mm runners, clip-on sled base glides should be included as standard equipment or recommended accessories. The tool-free installation means the end customer can install the glides without any instruction beyond “push onto the tube.” This reduces support calls and returns related to floor damage from unprotected wire runners.
For interior designers and facility managers specifying wireframe sled furniture for projects, require clip-on sled base glides as part of the furniture specification. Without them, the thin Ø 10 mm wire runners will scratch finished floors immediately. The three-color selection (anthracite grey, white, natural) covers the most common wireframe finishes without custom color orders. For production quantities, visit Business Solutions.
Modern homes, apartments, and design-forward spaces with wireframe sled furniture on hardwood or luxury vinyl. The three-color selection matches the most common wireframe finishes without requiring custom orders. In residential dining rooms where wireframe chairs sit on premium wide-plank hardwood, clip-on sled base glides prevent the narrow wire scratches that are especially visible and difficult to repair. The wire diameter creates deeper, more concentrated scratch lines than larger tubes, making floor protection on Ø 10 mm furniture arguably more important than on any other sled tube size. For other furniture in the same room, self-adhesive glides and furniture pads provide matching PA floor protection on standard-leg pieces.
Cafes, restaurants, reception areas, and hotel lobbies with designer wireframe sled seating on finished floors. The clip-on installation means front-of-house staff can install and replace glides without calling maintenance or using tools. In restaurant chains where the same wireframe chairs are deployed across multiple locations, clip-on sled base glides can be shipped with the furniture and installed on-site by any staff member in minutes. The tool-free installation eliminates the maintenance coordination that screw-mount glides require. Available in bulk for hospitality chains and multi-location deployments. For commercial pricing, visit Business Solutions.
Inspect these glides periodically for both base wear and clip integrity. Check that the glides are still firmly clipped to the tubes and have not shifted position along the runner. On wireframe chairs that are moved frequently across the floor, the glides may occasionally slide along the tube if the clip grip has loosened from repeated flexing over time. Reposition any shifted glides by pulling off and re-clipping at the correct location. If the clip no longer grips firmly after repositioning, the clip arms may have lost elasticity and the glide should be replaced with a new one.
Clip-on sled base glides are sold individually. The clip-on design makes replacement faster than any screw-mount glide since no tools are needed and no screws need to be removed. Pull off the worn glide and push on a new one in seconds. Keep spare glides in each of the three colors in your maintenance stock for commercial furniture fleets so replacements can be color-matched immediately without waiting for a new order.
| Specification | Details |
|---|---|
Product Type |
Round Tube Saddle Glide with Rectangular Sled Base (Clip-On) |
Materials |
PA (Polyamide) saddle and base |
Floor Compatibility |
Hard floors and low-pile carpet |
Furniture Compatibility |
Lightweight sled chairs, café seating, compact institutional seating |
Leg Compatibility |
Ø 10 mm round tubular frames |
Base Size |
28.5 mm × 19 mm (1.12" × 0.75") |
Mounting Style |
Clip-on press fit — no screw required |
Color Options |
Anthracite Grey, White, Natur |
Installation Type |
Press-fit, snap-on |
Key Benefits |
Fast installation, floor protection, low profile |
Indoor / Outdoor |
Indoor | Covered Outdoor | Uncovered Outdoor |

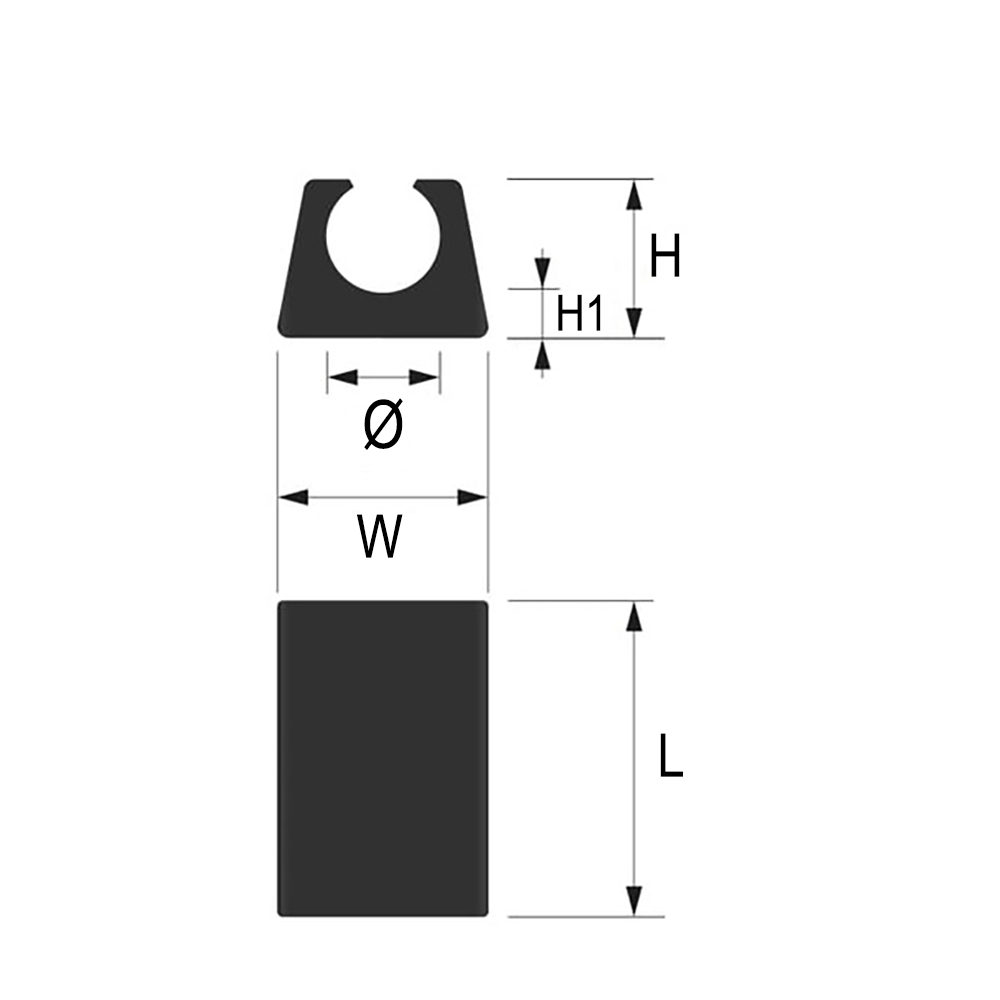

| Tube Diameter (Ø) | Base Dimensions (L x W) | Total Height (H) | Base Height (H1) |
|---|---|---|---|
10 mm (0.39") |
28.5 mm x 19 mm (1.12" × 0.75") |
14.5 mm (0.57") |
4.5 mm (0.18") |
The glide has an integrated PA clip that snaps around the Ø 10 mm tube from below. The clip arms grip the tube from both sides through elastic friction. Push the glide onto the tube until it clicks into position. No screws, no drilling, no tools required for installation.
Yes. The chair’s weight presses the glide against the floor, which actually increases the clip’s grip on the tube. The clip is designed to hold under compressive load. The glide is more likely to stay in place under load than when the chair is lifted (when the clip bears the glide’s own weight only).
The clip mechanism works best on small-diameter tubes where the PA clip can flex enough to snap around the tube. Larger tubes require the structural security of screw mounting. Ø 10 mm is the smallest sled tube diameter, typically found on lightweight wireframe sled furniture.
Anthracite grey is a dark charcoal. White is bright white. Natural is an off-white/cream. Choose to match your sled frame finish. All three share identical dimensions and clip mechanism.
Yes. Pull the glide off the tube and snap it onto a new position. The clip is designed for multiple removal and reinstallation cycles without losing grip strength. This makes repositioning easy during initial setup.
