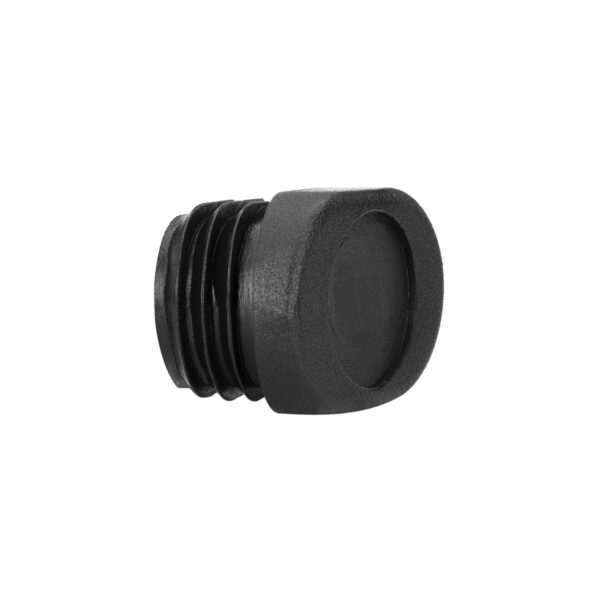

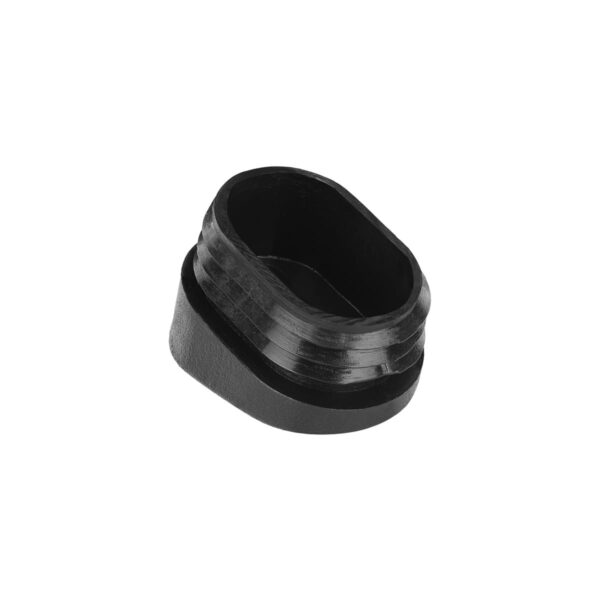

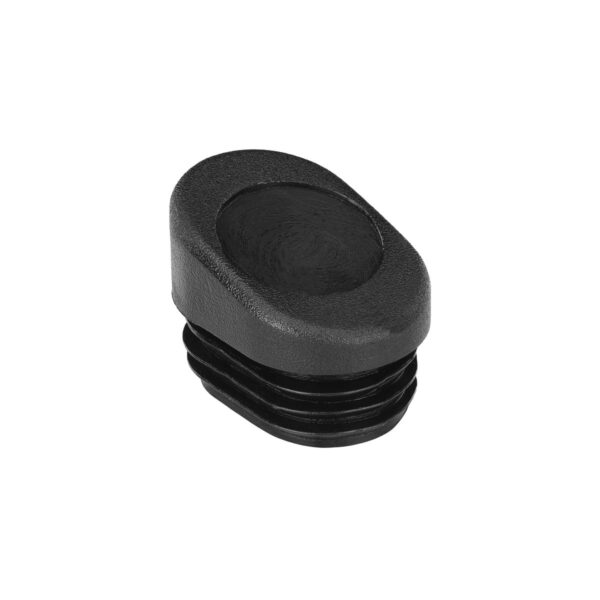

Angled oval tube plugs with pad slot combine angle compensation with scratch-free floor protection. Built-in groove for a felt or PA6 insert. For tilted oval furniture legs on hard floors. 25 × 35 mm. Wall thickness 1.5–2.5 mm. Black and grey. Polyethylene (PE) construction.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Standard angled oval tube plugs correct the leg tilt with a flat PE base. That solves the angle problem but leaves bare PE on the floor. On hardwood, laminate, vinyl, or any finished surface where scratches show, bare PE is adequate but not ideal. Angled oval tube plugs with pad slot add a second function: a built-in channel in the angled base that holds a PA6 pad insert. The angle corrects the tilt. The pad protects the floor. Two problems solved in one press-fit product.
PE body with flexible internal walls. 15° angle correction. Built-in pad slot with replaceable PA6 insert. Angled oval tube plugs with pad slot are angled oval plugs floor protection for splayed oval furniture legs on hard floors. One size: 25 × 35 mm with 1.5 to 2.5 mm wall thickness. Black and grey. Sold in multiples of 4.
Angled oval tube plugs with pad slot are currently available in one size and angle combination. The 25 × 35 mm dimension with 1.5 to 2.5 mm wall thickness and 15° angle covers the most common specification for splayed oval dining chair legs where both angle correction and floor protection are needed.
Wall: 1.5 to 2.5 mm. Angle: 15° from vertical. Built-in pad slot with replaceable PA6 insert for scratch-free floor contact. The 25 × 35 mm oval is a nearly circular profile common on heavy-duty dining chair legs. Black and grey.
For angled oval plugs without a pad slot, see angled oval tube plugs (20 × 40 at 18° and 30 × 60 at 9°). For straight oval legs (0°), use standard flat head oval tube plugs. For a decorative finish on non-floor-contact ends, see domed oval tube plugs. For custom sizes or angles, contact Business Solutions.
Four measurements: short axis (width), long axis (length), wall thickness, and leg angle. Angled oval tube plugs with pad slot require all four to match the one available specification: 25 mm short axis, 35 mm long axis, 1.5 to 2.5 mm wall, and approximately 15° leg tilt.
Use calipers across both axes of the oval opening. The short axis must be 25 mm and the long axis must be 35 mm. Then measure the wall thickness: it must be between 1.5 and 2.5 mm for the plug body to grip properly.
Place a digital angle finder on the leg and read the tilt from vertical. The reading should be close to 15° (roughly 12° to 18°) for the angle correction to work effectively. The PE base has slight flex that accommodates minor deviations from the exact 15° specification.
Same press-fit installation as all angled oval plugs, with the PA6 pad already in the slot. Three alignment requirements: the oval orientation, the angle direction, and the pad facing the floor. In practice, getting the angle right automatically puts the pad in the right position.
The specific intersection of two problems: tilted oval legs meeting hard floors where scratches show. The National Wood Flooring Association (NWFA) recommends protective pads on all furniture legs, and angled oval tube plugs with pad slot deliver both angle correction and NWFA-recommended pad protection in a single product.
The primary value. Without this product, protecting a tilted oval leg on a hard floor takes two separate steps: install an angled plug to correct the tilt, then apply a separate self-adhesive pad to the angled base. The pad sits on a curved, angled surface and can shift or peel over time. Angled oval tube plugs with pad slot integrate the pad channel directly into the angled head. The pad is recessed, secured, and aligned during manufacturing. One product. One installation. Tilted oval leg plugs with pad that eliminate the two-step process.
The PA6 pad provides the same low-friction, scratch-free floor contact found in all our furniture glides and self-adhesive pads. PA6 needle-punched polyamide 6 fiber deflects debris, resists chemical cleaners, and slides quietly across smooth hard floors. Unlike bare PE or cheap adhesive pads that wear through quickly, the PA6 insert provides durable protection. Unlike leaving furniture legs unprotected, PA6 prevents the scratching that degrades floor finishes over time. Angled oval plugs PA6 pad that protect where it matters.
The pad slot holds the PA6 insert by friction. When the pad wears, swap it without disturbing the plug body in the tube. This is a meaningful advantage over rectangular tube plugs with pad, where the pad is permanently bonded and the entire plug must be replaced when the pad wears. Replaceable pads reduce waste and cost over the life of the furniture. The oval tube plugs pad slot angled design keeps maintenance simple.
Same sealed end and vibration dampening as every other oval plug in the range. The angled geometry and pad slot do not compromise the seal. Moisture, debris, and insects are kept out. The PA6 pad surface is quieter than bare PE on hard floors, so angled oval tube plugs with pad slot provide better noise reduction than a standard angled plug without a pad. Seal, level, protect, and quiet in one step.
Two materials working together. The PE body handles tube grip and angle correction. The PA6 pad handles floor contact. Angled oval tube plugs with pad slot combine the proven PE press-fit mechanism with a precision-molded pad channel and a replaceable PA6 insert.

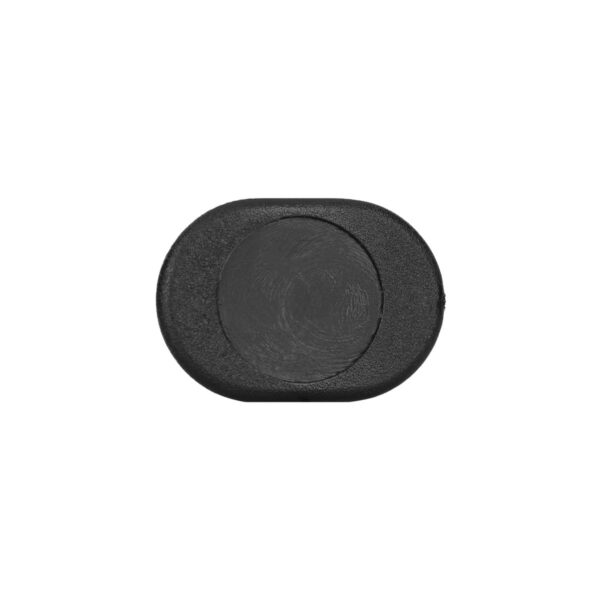

Same PE (polyethylene) used across the entire tube plug range. The body follows the 25 × 35 mm oval contour. The head is cut at 15° relative to the tube axis, creating the angled base. The pad slot is a recessed channel molded into the angled base during manufacturing.
PA6 needle-punched polyamide 6 fiber. The same material used in all our furniture pads, glides, and self-adhesive products. Low coefficient of friction. Chemically inert. Deflects grit and debris rather than trapping it against the floor. The pad sits in the recessed channel and is held by friction. Replaceable without removing the plug from the tube.
If your splayed oval furniture legs need both angle correction and floor protection, here is how this product compares to the alternatives.
An angled oval plug plus a self-adhesive pad applied to the angled base achieves the same result in two steps. But the adhesive bond between pad and angled PE surface is the weak point: the curved, angled geometry makes adhesion less reliable. Angled oval tube plugs with pad slot hold the pad mechanically in a recessed channel, which is more secure. The pad slot also allows replacement without disturbing the plug.
Pad slot round tube plugs provide the same replaceable-pad concept on round profiles at 0° (no angle correction). This product combines the pad slot with 15° angle correction on an oval profile. Same pad-replacement convenience, different tube shape and angle.
Rectangular tube plugs with pad have a permanently bonded pad. When the pad wears, the entire plug must be replaced. Angled oval tube plugs with pad slot have a replaceable pad insert. Lower long-term maintenance cost and less waste.
A standard flat oval plug on a tilted leg puts one curved edge on the floor with no pad. Maximum floor damage potential. Angled oval tube plugs with pad slot correct the angle and protect the floor simultaneously.
The PA6 pad provides dedicated floor protection on all smooth hard floors. Unlike bare PE, which is adequate but not ideal, PA6 is specifically engineered for furniture floor contact. The pad protects hardwood (solid and engineered), parquet, bamboo, laminate, luxury vinyl, ceramic and porcelain tile, natural stone including marble and granite (polished), sealed concrete, cork, and linoleum.
On rough hard surfaces like textured tile, stamped concrete, or slate, the PA6 pad may catch on surface irregularities. For those floors, furniture slides with ABS surfaces handle the texture better. On carpet and soft flooring, the PA6 pad provides adequate contact, though carpet does not require the scratch protection that hard floors do.
Angled oval tube plugs with pad slot are designed for one specific scenario: 25 × 35 mm oval legs tilted at approximately 15° from vertical on furniture that sits on finished hard floors where scratches matter.
Same oval cross-section, different head styles, depths, and features.
25 × 35 mm, 15°. Angle + PA6 floor protection.
Anywhere 25 × 35 mm splayed oval furniture legs contact finished hard floors and need both angle correction and built-in scratch protection.
Restaurant seating, hotel dining chairs, and commercial furniture where floor damage is visible and costly. In environments where dozens of chairs move daily on hardwood or tile, the combination of angle correction and PA6 protection in one plug reduces both floor damage and maintenance labor. Available in bulk for manufacturing runs and facility fit-outs. For commercial pricing, visit Business Solutions.
Dining chairs with splayed 25 × 35 mm oval legs on engineered hardwood, luxury vinyl, or any finished floor where scratches show. The replaceable PA6 pad means the floor protection can be refreshed without replacing the plug or the chair. Angled oval tube plugs with pad slot are the residential solution when both tilt correction and scratch prevention matter. For the same furniture, use standard flat oval plugs on any straight legs and the angled pad slot variant only on the tilted floor-contact legs.
Inspect the PA6 pad periodically for embedded grit or visible wear grooves. A quick wipe with a damp cloth removes surface debris. Sand, gravel, and grit tracked in from outside are the primary risk to the pad surface and should be wiped away before they embed. On commercial seating, inspect every 3 to 6 months. On residential furniture, check annually. The pad slot design means the pad can be swapped in seconds without removing the plug from the tube.
When the pad shows visible compression or wear lines, replace it. The PE body stays intact longer than the pad surface, so replacement is driven by pad wear, not body failure. Also check that the plug remains seated and the angled base still sits flat on the floor. Angled oval tube plugs with pad slot are sold in multiples of 4 for convenient replacement stocking. On commercial furniture that sees daily use across an entire dining room or conference facility, having spare pads and spare angled oval tube plugs with pad slot on hand keeps the furniture in service without downtime. The cost of replacement pads is a fraction of refinishing a scratched floor.
Angled Oval Tube Plugs: angle correction only, no pad slot. 20 × 40 at 18° and 30 × 60 at 9°.
Pad Slot Round Tube Plugs: same replaceable PA6 pad concept on round tubes (Ø 22 and 28 mm, no angle correction).
| Specification | Details |
|---|---|
Product Type |
Tube Plug – Inner with Angle 15° (Slot for Felt) |
Shape |
Oval Tube |
Material |
PA (Polyamide) |
Fit Style |
Ribbed friction-fit with molded slot for felt insert |
Floor Compatibility |
Hardwood, tile, laminate, concrete, LVT, etc |
Furniture Compatibility |
Chairs, stools, tables, frames, hospitality and institutional furniture |
Leg Compatibility |
Metal and plastic oval tubing |
Sizes Available |
25 × 35 mm |
Base Angle |
15° |
Color Options |
Black, Grey |
Installation Type |
Press-fit by hand or rubber mallet |
Key Benefits |
Leveling, scratch protection, reduced noise, strong hold |
Indoor/Outdoor Use |
Indoor | Covered Outdoor | Uncovered Outdoor |
Recyclable |
Yes |

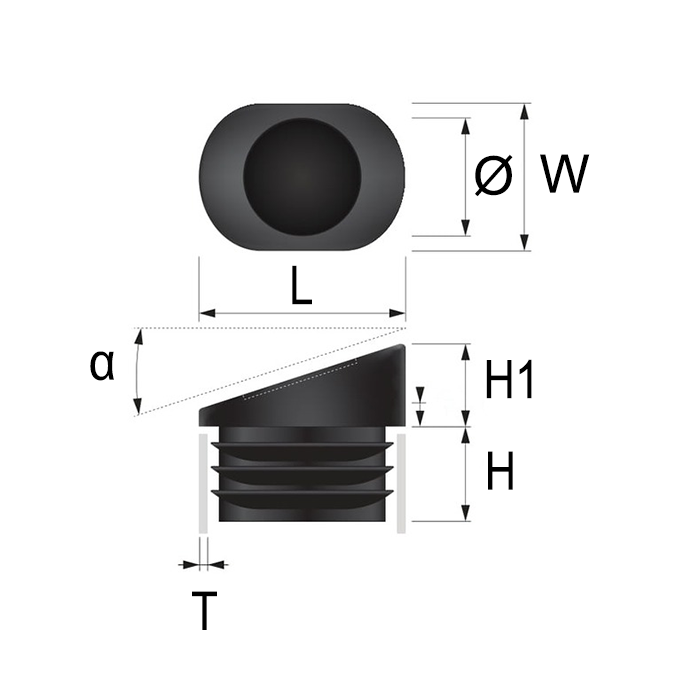

| Tube Dimensions (W x L) | Tube Wall Thickness (T) | Head Height (H1) | Insert Depth (H) | Ø (Slot Diameter) | α (Angle) |
|---|---|---|---|---|---|
25 x 35 mm (0.98" x 1.38") |
1.5 – 2.5 mm (Ø 0.06" – 0.10") |
5 mm (0.20") |
12 mm (0.47") |
20 mm (0.79") |
15 |
This combines the angled base (for tilted legs) with a pad slot (for floor-specific protection). The angled head compensates for leg tilt. The pad slot accepts a felt or PA6 insert for scratch-free contact on hard floors. Two functions in one plug.
A felt or PA6 pad matching the slot dimensions. PA6 is recommended for hardwood, tile, and laminate because it won’t compress or trap grit. Felt works for light-duty applications.
Currently 25 × 35 mm with 1.5–2.5 mm wall thickness in black and grey. This covers the most common angled oval furniture leg where floor protection is also needed.
Yes. Without a pad, it functions as a standard angled oval plug with a recessed slot in the head. The slot doesn’t affect the press-fit hold. Add a pad later if needed.
Same press-fit method. Orient the angle and the oval profile correctly before pressing in. The pad slot adds no complexity to installation.
