Half-oval tube plugs fit D-shaped hollow furniture legs that have one flat side and one curved side. Standard round, square, and rectangular plugs cannot match this asymmetric profile. The plug body press-fits inside the half-oval tube with flexible walls that grip both the flat and curved interior surfaces. D-shaped tube plugs for furniture with half-oval tubing. PE construction. 3 sizes: 20 × 40, 30 × 40, and 30 × 60 mm. Wall thickness 1 to 2 mm. Black. Sold in multiples of 4.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Round plugs fit round tubes. Square plugs fit square tubes. But furniture that uses D-shaped tubing needs a plug that matches a profile with one flat side and one curved side. Half-oval tube plugs are that match. The plug body mirrors the half-oval cross-section exactly: flat where the tube is flat, curved where the tube is curved. One plug seals the tube end, protects the floor, dampens noise, and gives the D-shaped leg a clean, finished appearance that no other plug shape can provide.
PE (polyethylene) construction with flexible internal walls that grip both the flat and curved interior surfaces simultaneously. Half-oval tube plugs are D-shaped tube plugs for furniture with half-oval tubing. Press-fit installation with no adhesive, no screws, and no tools beyond an optional rubber mallet. 3 sizes: 20 × 40, 30 × 40, and 30 × 60 mm. Wall thickness 1 to 2 mm. Black. Sold in multiples of 4.
Half-oval tube plugs are available in 3 sizes that cover the most common D-shaped tubing dimensions used in furniture. The width measurement is the flat side. The length measurement is from the flat side to the peak of the curve. The right half-oval tube plug matches both dimensions and the wall thickness of your tube.
Wall: 1 to 2 mm. The smallest half-oval for lightweight chair components, narrow armrests, and compact D-shaped structural members. Black.
Wall: 1 to 2 mm. A wider flat side (30 mm) with the same 40 mm depth as the smaller size. For chair backs, armrests, and frame members where a broader flat mounting surface is needed. Black.
Wall: 1 to 2 mm. The largest half-oval. For heavy-duty chair backs, wide structural members, and commercial furniture frames with prominent D-shaped tubing. Black.
For round profiles, use round tube plugs. For fully oval profiles (curved on both sides), use oval tube plugs. For fully elliptical profiles, use ellipse tube plugs. For square or rectangular profiles, use square or rectangular tube plugs. For custom half-oval sizes or colors, contact Business Solutions.
Three measurements: width (flat side), depth (flat side to curve peak), and wall thickness. The D-shaped cross-section means these two dimensions are measured differently than on symmetrical tubes. The width is straight across the flat side. The depth is perpendicular from the flat side to the highest point of the curve.
Use calipers or a ruler across the flat side of the D-shape, outside edge to outside edge. This is the first number in the size designation (20 or 30 mm for half-oval tube plugs).
Measure from the flat side to the peak of the curved side, outside edge to outside edge. This is the second number (40 or 60 mm). On a 30 × 60 mm half-oval, the flat side is 30 mm wide and the curve extends 60 mm from the flat side.
Use calipers at the tube end. All 3 sizes require 1 to 2 mm wall. Check both the flat wall and the curved wall, as manufacturing tolerances can create slight differences between the two.
Same press-fit concept as all our tube plugs, with orientation alignment. The flat side of the plug must match the flat side of the tube. Half-oval tube plugs only fit one way. If the plug does not slide in, rotate it 180° so the flat and curved sides align correctly.
The same four problems as every other tube plug, applied to a cross-section that no other plug shape can handle. The National Wood Flooring Association (NWFA) recommends protective measures on all furniture legs, and half-oval tube plugs provide that protection on D-shaped hollow metal profiles.
An open half-oval tube end puts a sharp metal edge on the floor that combines a straight line (the flat side) with a curve (the rounded side). This mixed geometry creates uneven floor contact that no round, square, or rectangular plug can address. Half-oval tube plugs cover the entire D-shaped opening with a smooth PE head that distributes weight across the full asymmetric area. Unlike leaving metal edges unprotected, the plug eliminates the damage at the source.
An open D-shaped tube collects moisture, debris, and insects just like any other open tube. On steel tubing, trapped moisture causes internal corrosion. Half-oval tube plugs seal the entire asymmetric opening. The flexible walls grip both the flat and curved interior surfaces for a complete seal. No gaps at the flat-to-curve transition. Half-oval tube end plugs that seal the full cross-section.
Hollow D-shaped tubes resonate just like any other hollow profile. The mixed geometry can actually amplify certain frequencies because the flat and curved walls vibrate at different rates. Half-oval tube plugs fill the opening with PE, absorbing the vibration from both the flat and curved surfaces. D-shape furniture leg plugs that silence the rattle.
D-shaped tubing is a deliberate design choice. The flat side mounts flush while the curved side creates a rounded visual. An open tube end undermines that design intention by exposing the hollow interior. Half-oval tube plugs cover the opening with a clean PE head that maintains the D-shaped profile’s design language. The plug head mirrors the tube cross-section so the finished end reads as intentional. These are the half-oval plugs for furniture legs where the D-shaped profile is a visible design element that deserves a finished endpoint.
Same PE (polyethylene) used across the standard tube plug range. Half-oval tube plugs are molded from a single piece of PE with no joints, seams, or separate components. The asymmetric profile requires precise geometry at the flat-to-curve transition that symmetrical plugs do not need.
The head covers the full D-shaped cross-section: flat where the tube is flat, curved where the tube is curved. The PE surface provides low-friction floor contact on hard floors.
The internal walls grip both the flat and curved tube surfaces. On the flat side, the grip is similar to a rectangular plug. On the curved side, the grip is similar to an oval plug. The transition zone between flat and curved is the most engineered area: the plug body must flex smoothly from flat-wall contact to curved-wall contact without gaps.
If your furniture has D-shaped tubing, only half-oval tube plugs fit correctly. Here is why other shapes do not work and when to use them instead.
Rectangular tube plugs have four flat sides. A half-oval tube has one flat side and one curved side. The rectangular plug cannot conform to the curved wall, leaving a gap along the entire curved surface. No seal, no grip on the curved side, no floor protection at the curve.
Oval tube plugs have two curved sides. A half-oval tube has one flat side. The oval plug will gap at the flat wall because it expects a curve where the tube is straight. If your tube has curves on both sides, it is oval, not half-oval. Use oval plugs for oval tubes and half-oval tube plugs for D-shaped tubes.
Round tube plugs are circular and cannot fit a D-shaped opening. The flat side of the half-oval tube would prevent a round plug from entering at all. Shape must match shape.
An open D-shaped tube end exposes sharp metal edges along both the flat and curved portions. The mixed geometry creates an especially awkward visual because the tube is neither fully round nor fully rectangular. Half-oval tube plugs finish the end cleanly, matching the profile exactly.
When D-shaped tube ends contact the floor, the PE head of half-oval tube plugs provides basic floor protection. PE is smoother and softer than bare metal, adequate for most surfaces. The PE base works on hardwood, laminate, vinyl, tile, polished concrete, and cork without scratching under normal use.
On scratch-sensitive floors like engineered hardwood or luxury vinyl, apply a round self-adhesive furniture pad or rectangular self-adhesive furniture pad to the plug head for dedicated PA6 protection. Choose the pad shape that best covers the D-shaped head. On rough hard surfaces like textured tile or stamped concrete, furniture slides with ABS surfaces handle the texture better than PE.
Most half-oval tubing appears on chair backs and armrests rather than floor-contact legs. When the D-shaped tube does contact the floor, the flat side typically faces the mounting surface (upward) and the curved side faces the floor (downward), creating a curved floor-contact profile. The PE head smooths this contact into a consistent, scratch-free surface.
Half-oval tube plugs are designed for any hollow D-shaped furniture tube that needs a finished, sealed, protected endpoint. The D-shape is a specialized profile found in specific furniture designs where a flat mounting surface and a curved visual surface are needed in the same tube.
Match the plug shape to your tube shape. Every shape uses the same PE construction and press-fit concept.
D-shaped. One flat side, one curved side. 3 sizes. Black.
Anywhere D-shaped hollow tubing has open ends that need finishing, sealing, and floor protection. Half-oval tube plugs are the only plugs in the range that match this specific cross-section.
Chair backs and armrests where D-shaped tubing is used for its dual-purpose geometry: flat for mounting, curved for appearance. Dining chairs, conference chairs, and commercial seating with D-shaped frame members. Half-oval tube plugs finish the exposed tube ends that face outward at the top of chair backs and the ends of armrests. For floor-contact legs on the same furniture, pair with round or rectangular tube plugs matched to the leg tube shape. For additional PA6 scratch protection on any floor-contact plug, apply self-adhesive furniture pads.
Display fixtures, retail furniture, and architectural elements where D-shaped tubing provides a flat mounting surface on one side and a rounded aesthetic on the other. Any structure where the tube bolts flat to a surface on one side and presents a curved face on the visible side. Available in bulk for manufacturing runs. For commercial pricing, visit Business Solutions.
Half-oval tube plugs require the same minimal maintenance as any standard tube plug. Check periodically that the plug remains seated flush with the tube edge on both the flat and curved sides. The flat-to-curve transition is the area most likely to show uneven seating if the tube has dimensional variation. The PE surface does not stain, discolor, or absorb cleaning products.
On commercial furniture, inspect every 3 to 6 months. On residential furniture, an annual check is enough. Half-oval tube plugs are sold in multiples of 4, so keeping spares on hand is practical. If a plug becomes loose or damaged, replace it. The PE body flexes rather than cracks, so wear typically shows as loosened grip rather than visible breakage. Inspect the flat-to-curve transition zone on each plug, as this area is most susceptible to deformation under impact.
Oval Tube Plugs: for fully oval tubes (curved on both sides). Multiple sizes and head styles.
Ellipse Tube Plugs: for elongated elliptical tubes. Multiple head styles.
Round Self-Adhesive Furniture Pads: apply to any plug head for PA6 scratch protection on hard floors.
Round Self-Adhesive Furniture Glides: PA6 on ABS platform for glide performance.
| Specification | Details |
|---|---|
Product Type |
Tube Plugs – Inner with Ribs |
Shape |
Half Oval Tube |
Materials |
PE (Polyethylene) |
Fit Style |
Ribbed friction-fit compression |
Floor Compatibility |
All hard and soft flooring |
Furniture Compatibility |
Seating frames, displays, tables, benches, racks |
Leg Compatibility |
Metal and plastic oval tubing |
Sizes Available |
20 × 40 mm, 30 × 40 mm, 30 × 60 mm (1–2 mm wall thickness) |
Color Options |
Black |
Installation Type |
Press-fit by hand or rubber mallet |
Key Benefits |
End protection, clean finish, fast installation, no tools required |
Indoor/Outdoor Use |
Indoor | Covered Outdoor | Uncovered Outdoor |
Recyclable |
Yes |

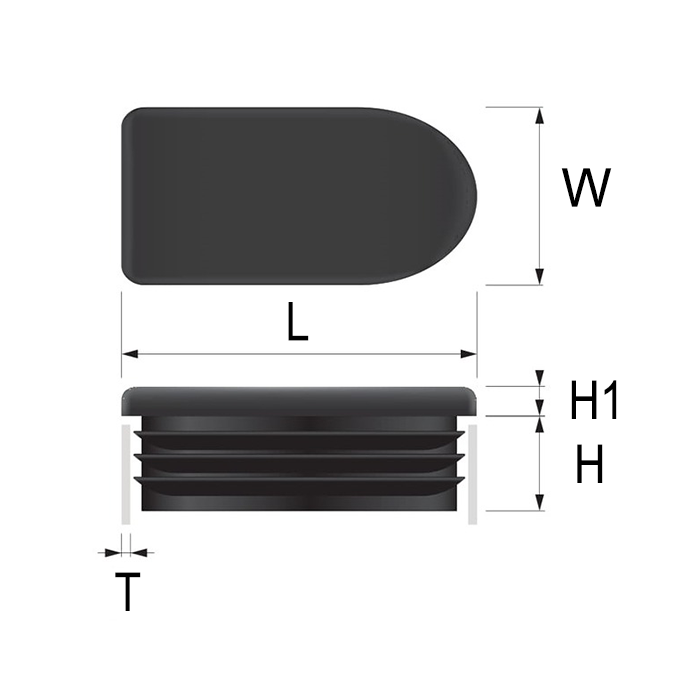

| Tube Dimensions (W x L) | Tube Wall Thickness (T) | Insert Depth (H) | Head Height (H1) |
|---|---|---|---|
20 x 40 mm (0.79" x 1.57") |
1 – 2 mm (0.04" – 0.08") |
14 mm (0.55") |
5 mm (0.19") |
30 x 40 mm (1.18" x 1.57") |
1 – 2 mm (0.04" – 0.08") |
14 mm (0.55") |
5 mm (0.19") |
30 x 60 mm (1.18" x 2.36") |
1 – 2 mm (0.04" – 0.08") |
16 mm (0.63") |
5 mm (0.19") |
A half-oval tube has a D-shaped cross-section: one side is flat (like a rectangle) and the opposite side is curved (like an oval). It is the shape you get when you cut an oval tube in half lengthwise along the long axis. Half-oval tube plugs match this asymmetric profile precisely. No other plug shape fits correctly.
No. A rectangular plug has four flat sides. A half-oval tube has one flat side and one curved side. The rectangular plug will not conform to the curve, leaving gaps along the curved wall and a loose, unsealed fit. Use the correct half-oval tube plug for a proper seal and grip.
Match the flat side of the plug to the flat side of the tube, and the curved side of the plug to the curved side of the tube. The plug only fits one way. If it does not slide in, you likely have the flat and curved sides reversed. Rotate 180° and try again.
The 3 sizes in the current range are available in black only. For grey, white, or custom colors, contact Business Solutions with your size requirements and minimum order quantities.
Half-oval tubing appears on chair backs, armrests, and structural members where the flat side mounts flush against another surface (a seat pan, a backrest, a frame member) while the curved side faces outward for a rounded appearance. The D-shape provides a flat mounting surface and a rounded visual profile in one tube.
