Every floor has imperfections. Tile grout, uneven concrete, slightly out-of-level subfloors. They all cause furniture to rock, wobble, and creak. Adjustable leveling feet screw into any threaded insert or pre-tapped hole and let you dial in a level contact point on each leg independently. Standard, low-profile, wide-base, slim, and specialty styles. M4 to M12 plus imperial threads. Stainless steel versions for outdoor and marine use. Fixed furniture feet available for legs that need a clean screw-mount base without adjustment.
Adjusts by hand, no tools required·M4 to M12 plus 1/4″-20 and 5/16″-18 imperial·Stainless versions for outdoor and marine
Base style determines footprint, height, and function. Thread size and stem length are chosen within each product. All styles adjust by hand with no tools needed once installed. The chooser below covers the three core styles. See the sections that follow for specialty and stainless versions.
STANDARD BASE
The most versatile style. Widest thread and stem selection in the range. M6 to M12 plus imperial. Available with a PA6 floor-protection pad and notched-thread anti-vibration variant.
LOW-PROFILE
9 mm total height. The most popular style for modern furniture designed to sit close to the floor. Same broad thread selection as the standard base in a slimmer form factor.
WIDE BASE

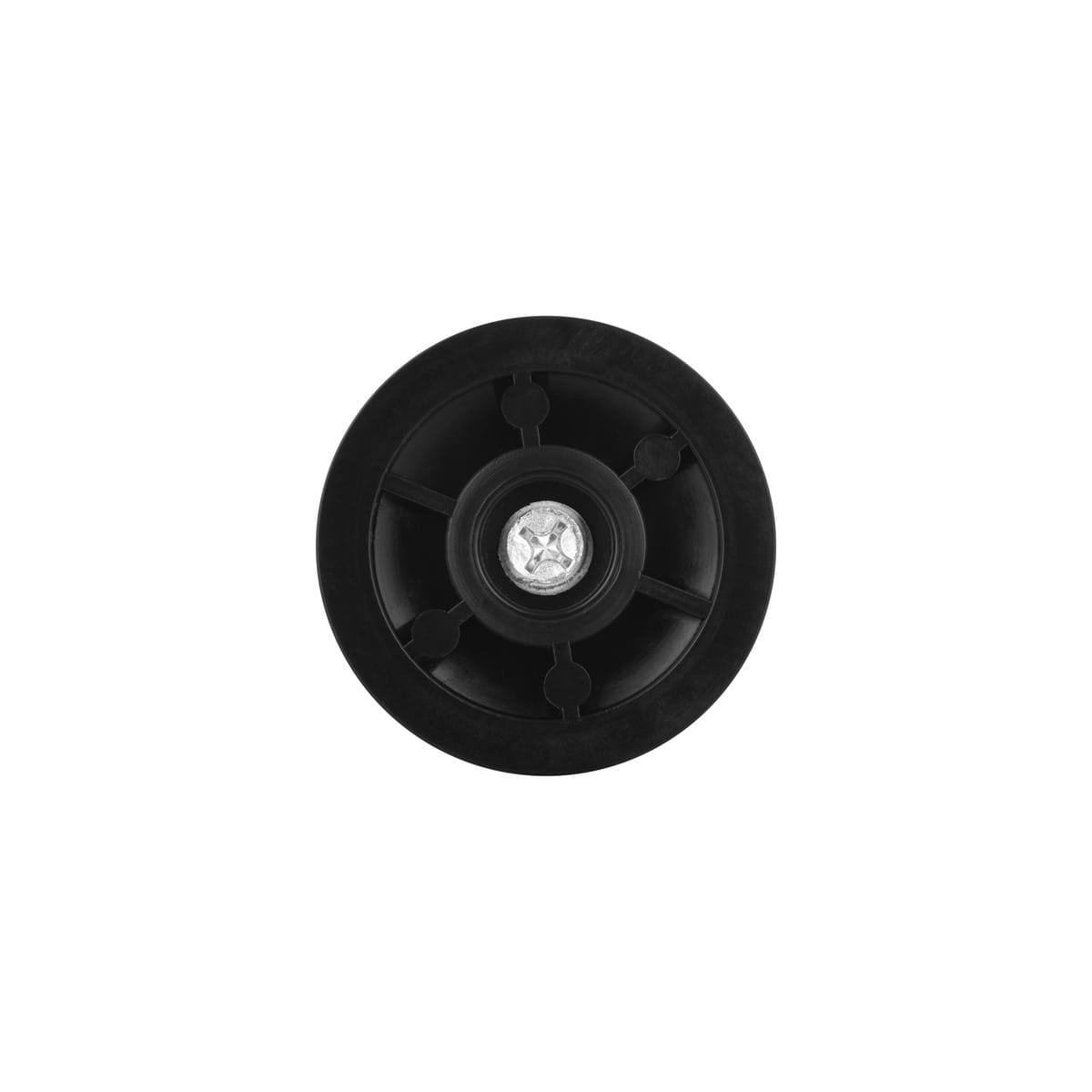

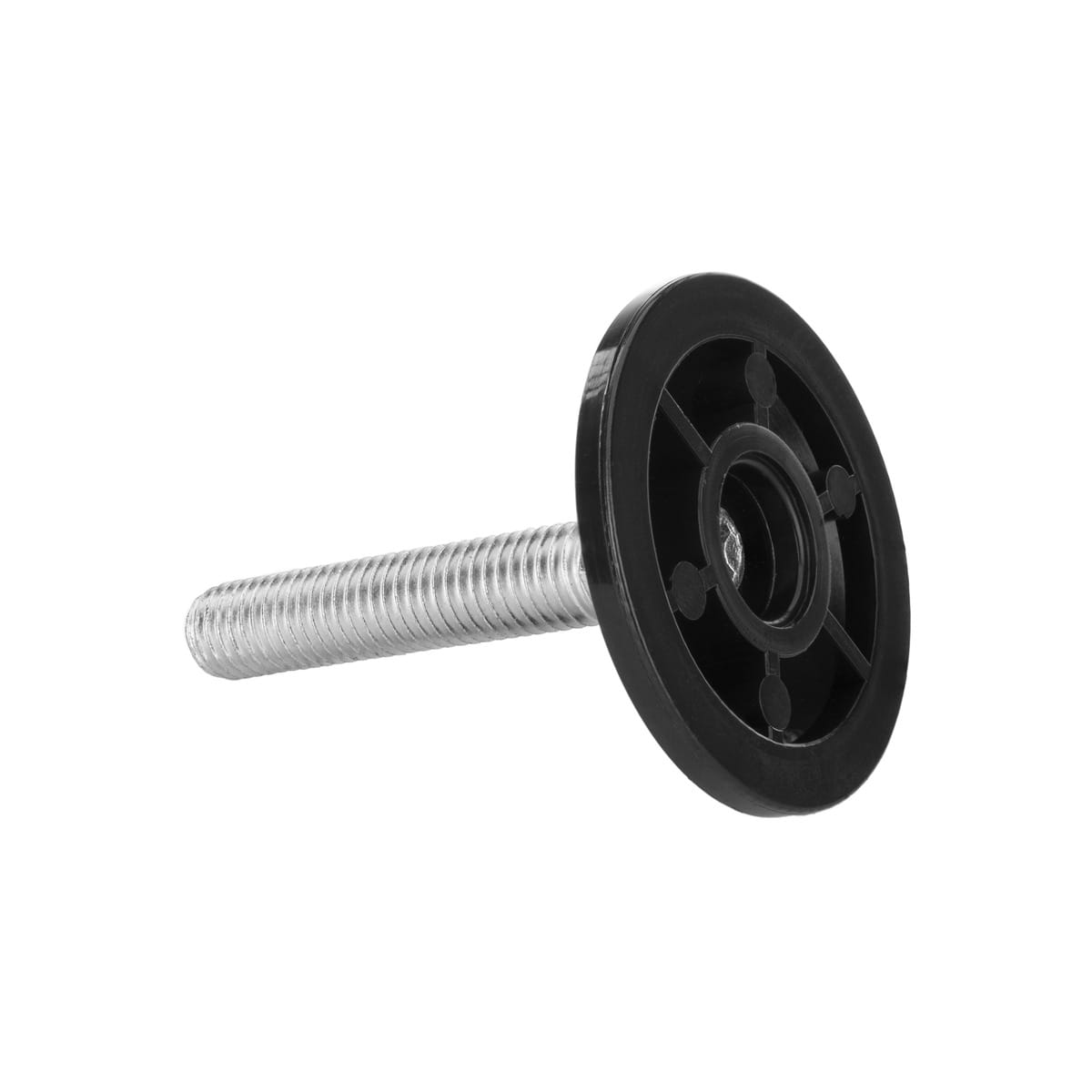

Ø 50 mm base for maximum contact area under heavy furniture and commercial equipment. Anti-slip TPE version grips the floor. For workbenches, industrial equipment, server racks, and heavy commercial fixtures.
The two most-used base styles in the catalog. The standard base covers the widest thread and stem-length range (M6 to M12, stems 10–110 mm). The low-profile base sits at just 9 mm tall for modern furniture and tight clearances. Both come in pad and notched-thread variants for floor protection and vibration resistance. The ultra-low profile (6 mm) is the lowest in the catalog.

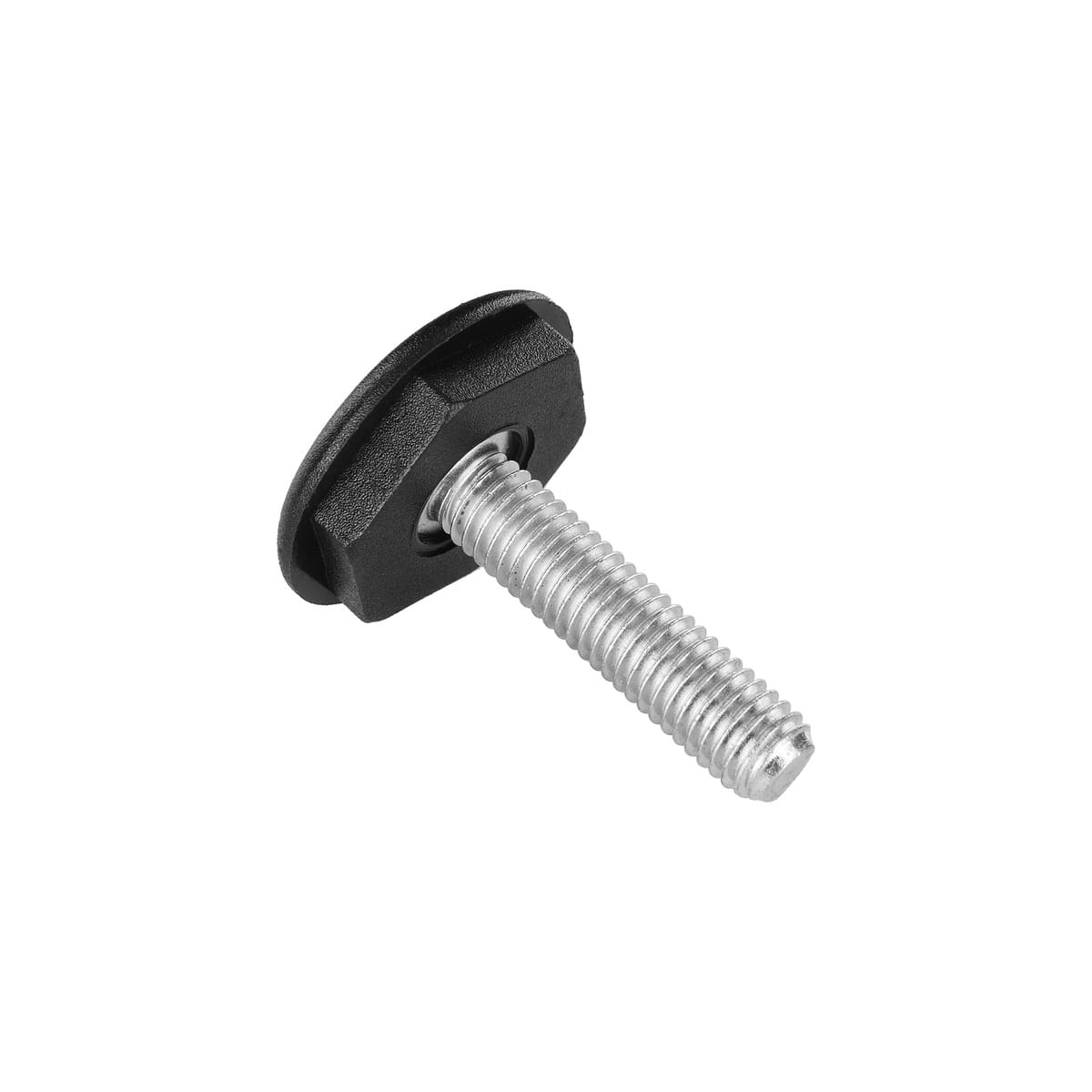

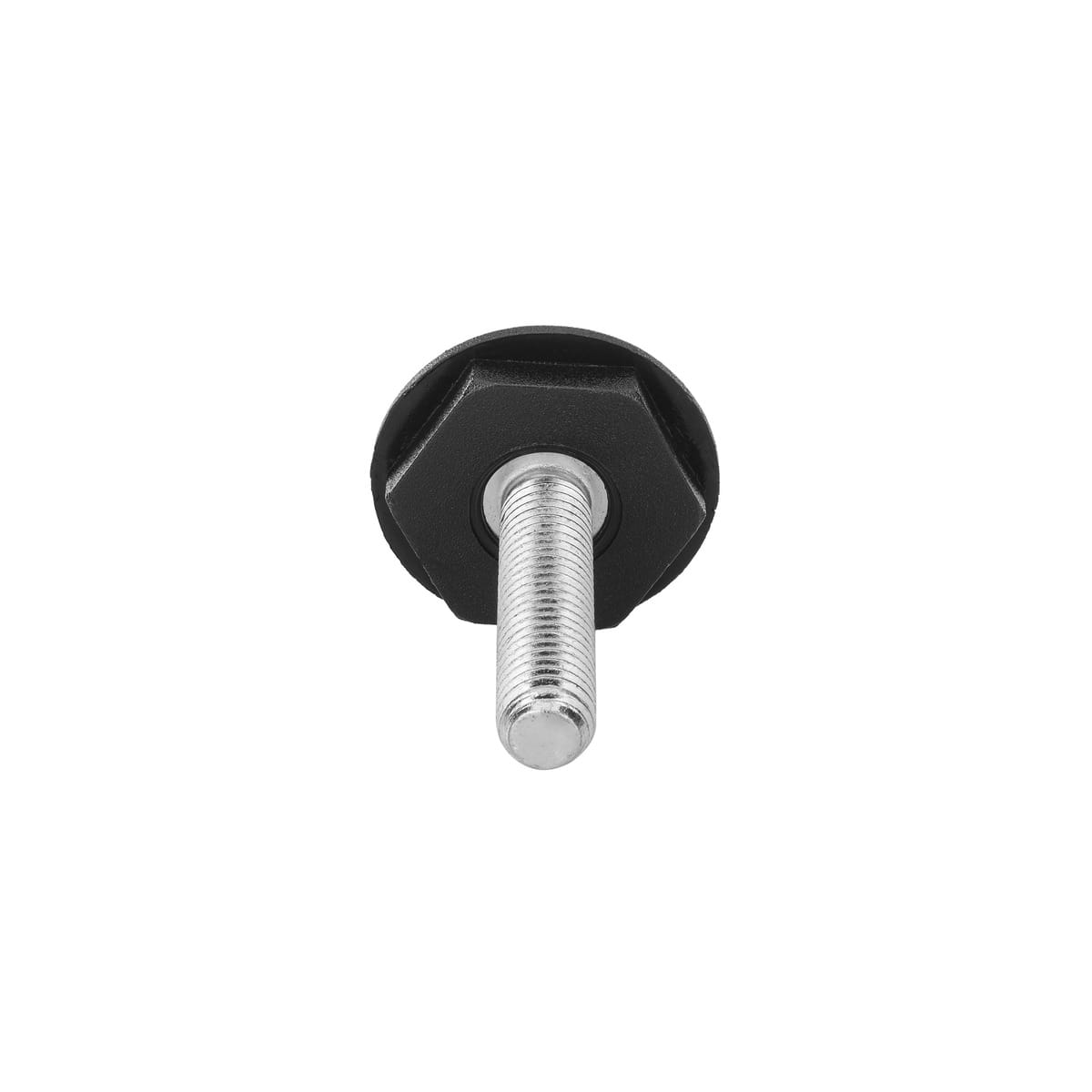

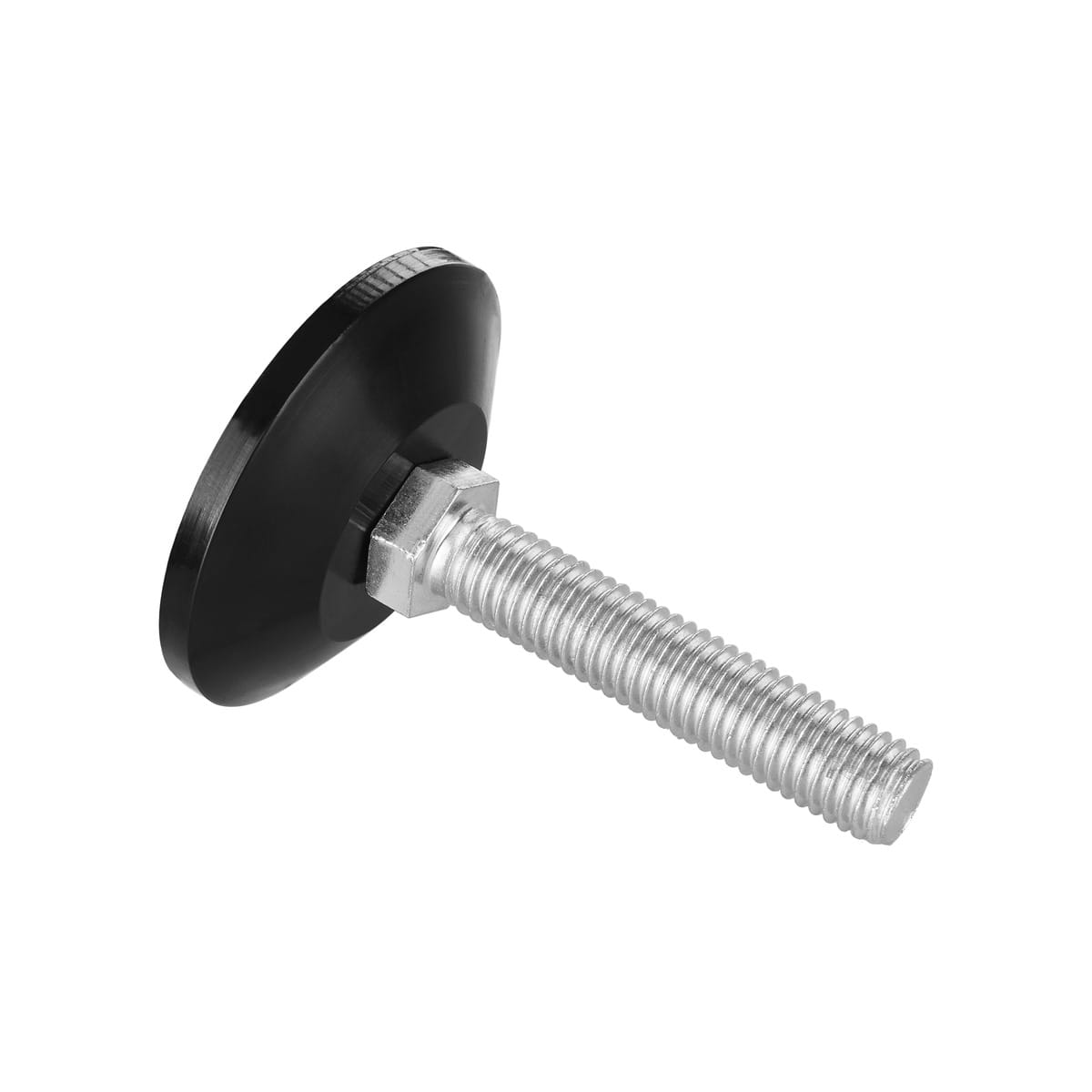

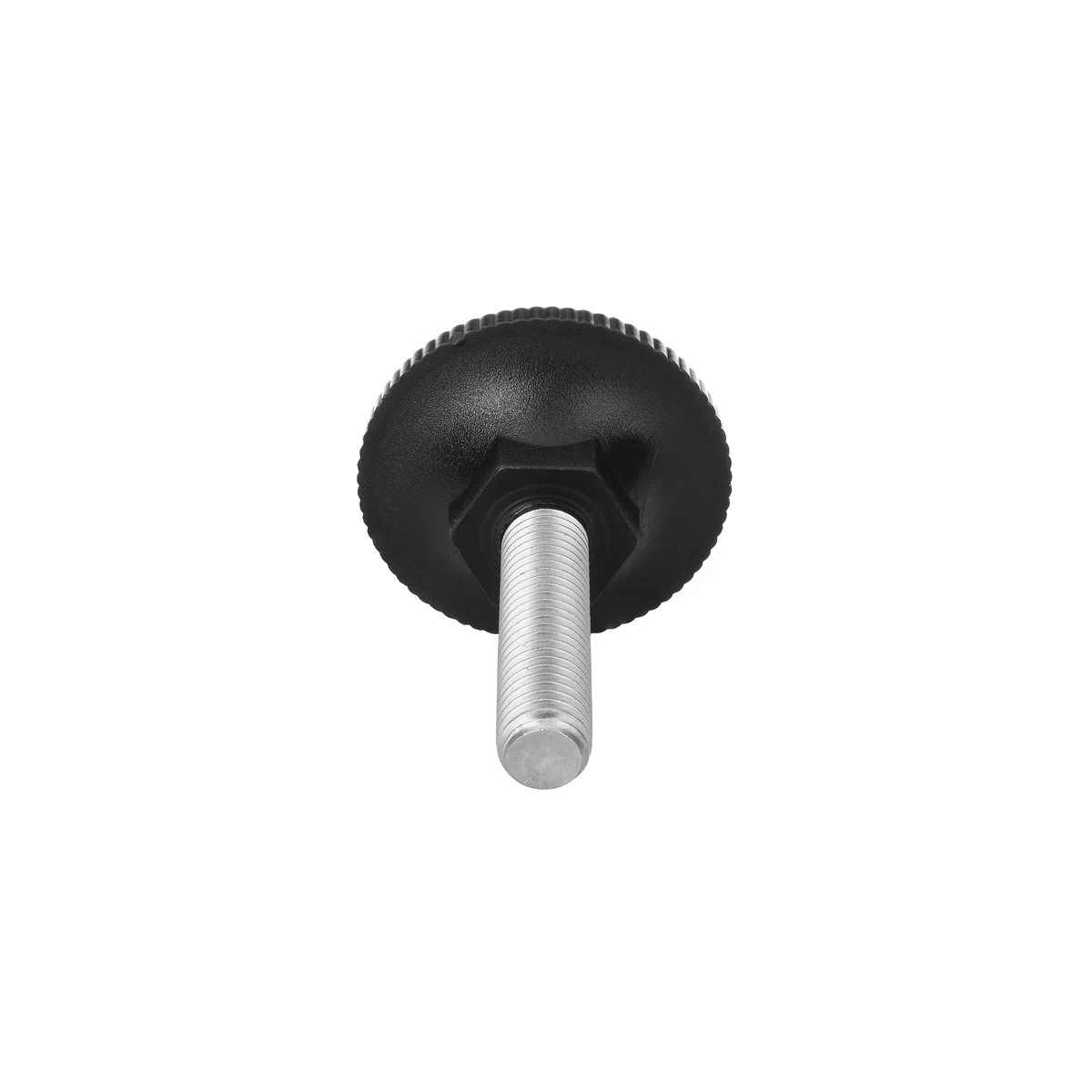

Polymer base with zinc-plated steel rod. Ø 30 mm (M6, M8, M10) and Ø 45 mm (M8, M10, M12). Stem lengths from 10 mm to 110 mm. Black, grey, and white.
M6 × 10–63 mm, M8 × 10–43 mm, M10 × 28–63 mm
M8 × 28–110 mm, M10 × 28–60 mm, M12 × 25–45 mm
Standard base with a PA6 floor-protection pad bonded to the base face. Leveling adjustment and floor protection in one part. Ø 38 mm base. M6, 1/4″-20, and 5/16″-18 threads. Stem lengths 19 mm and 25 mm. Black.
M6, 1/4″-20, 5/16″-18 — PA6 floor-protection pad. Hardwood and tile floors.

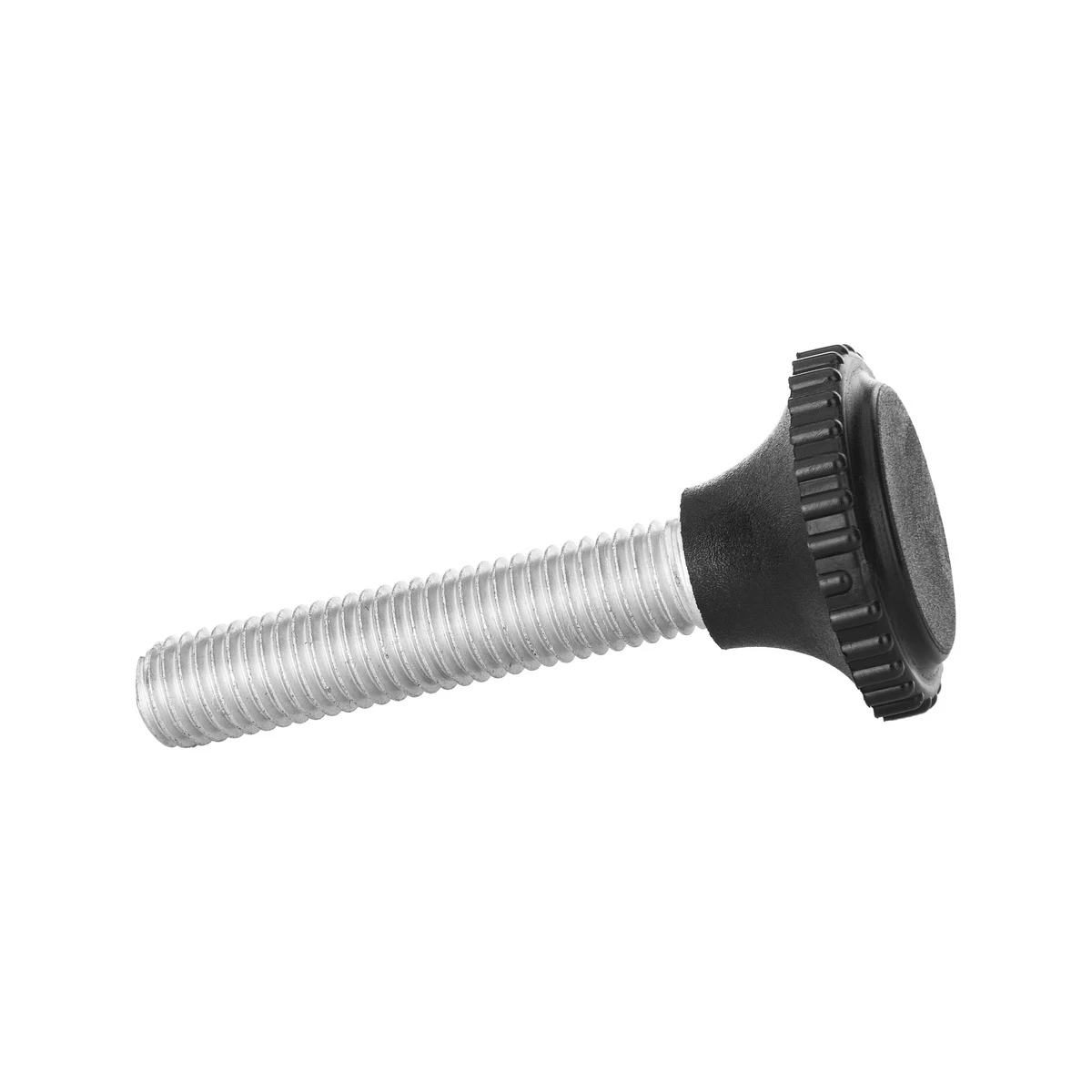

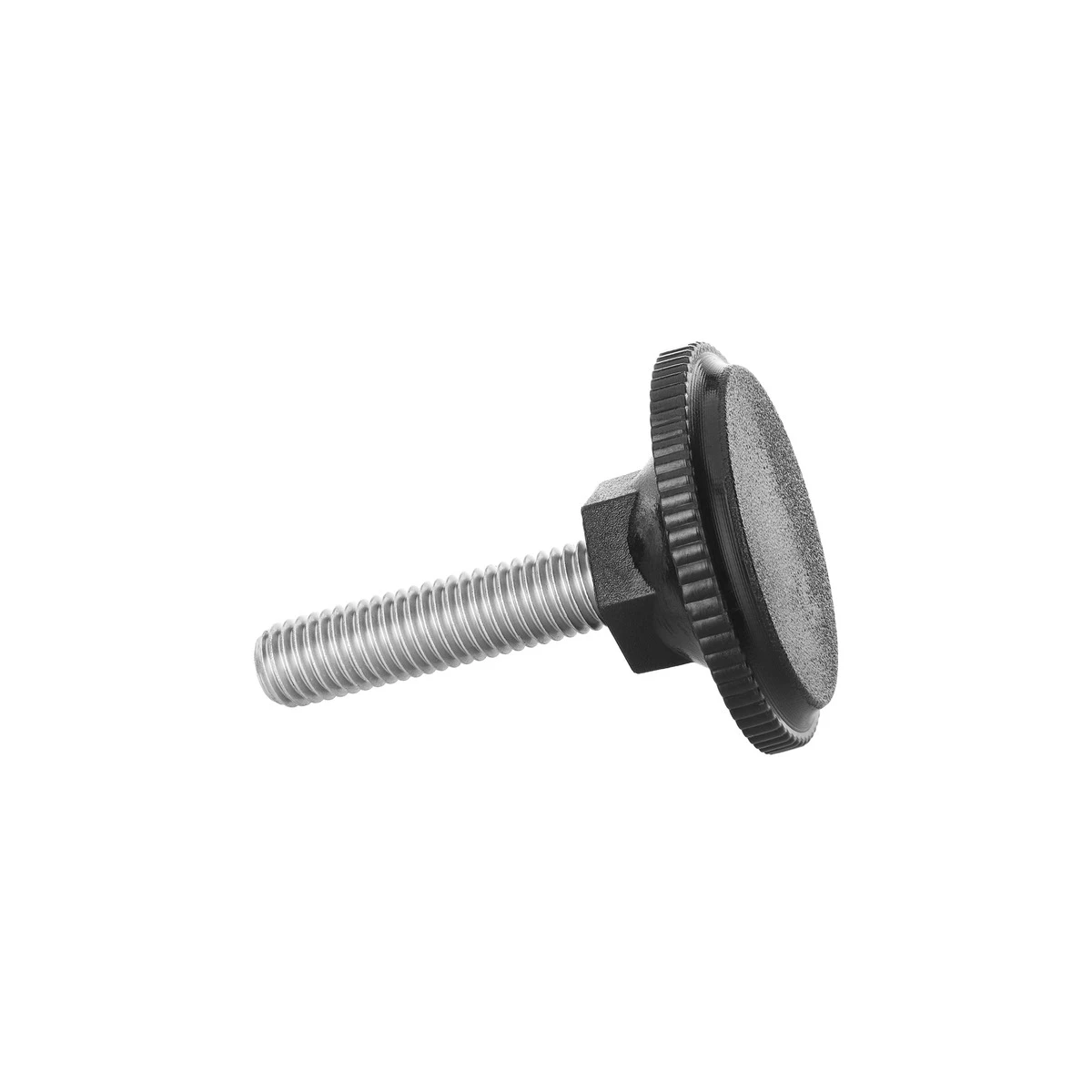

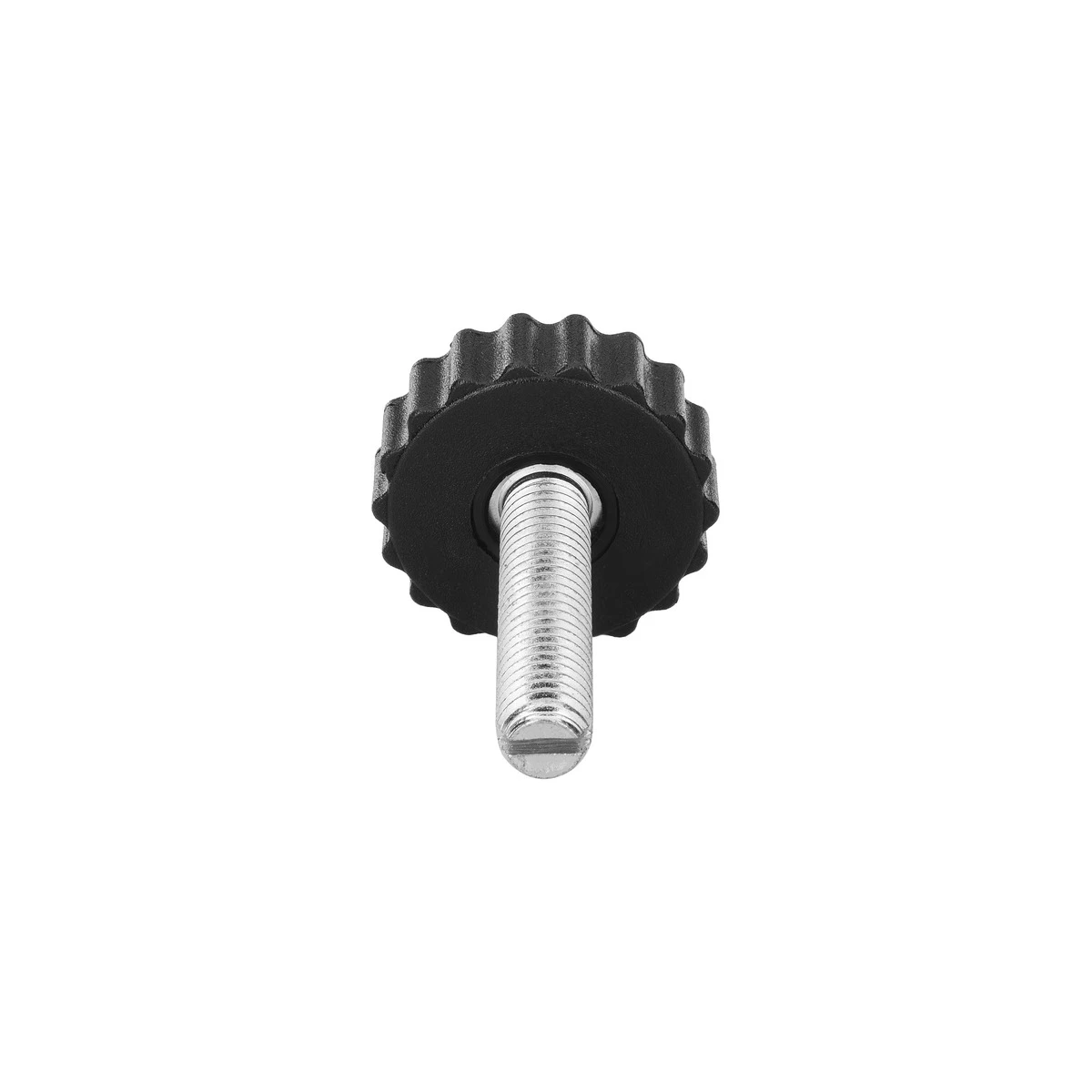

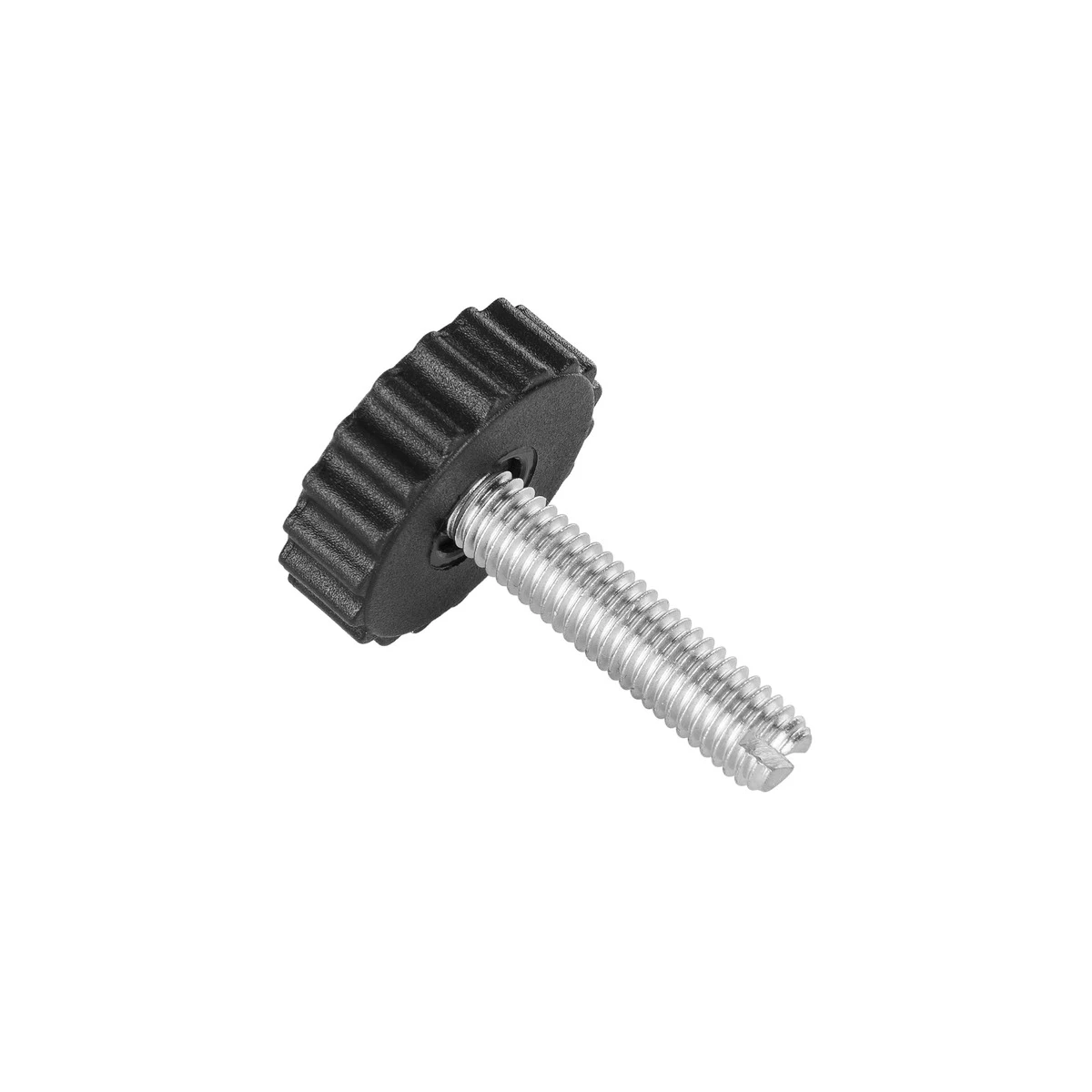

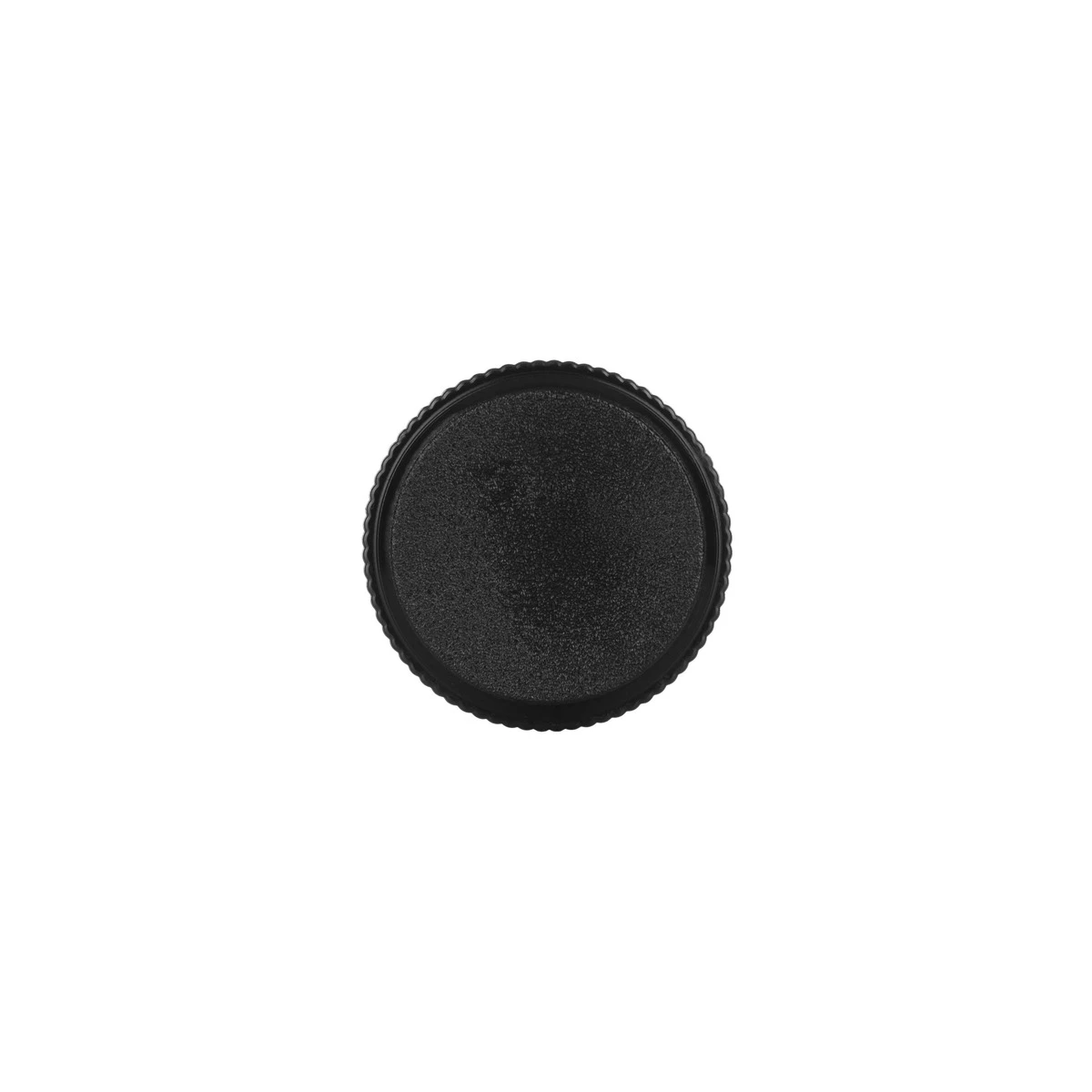

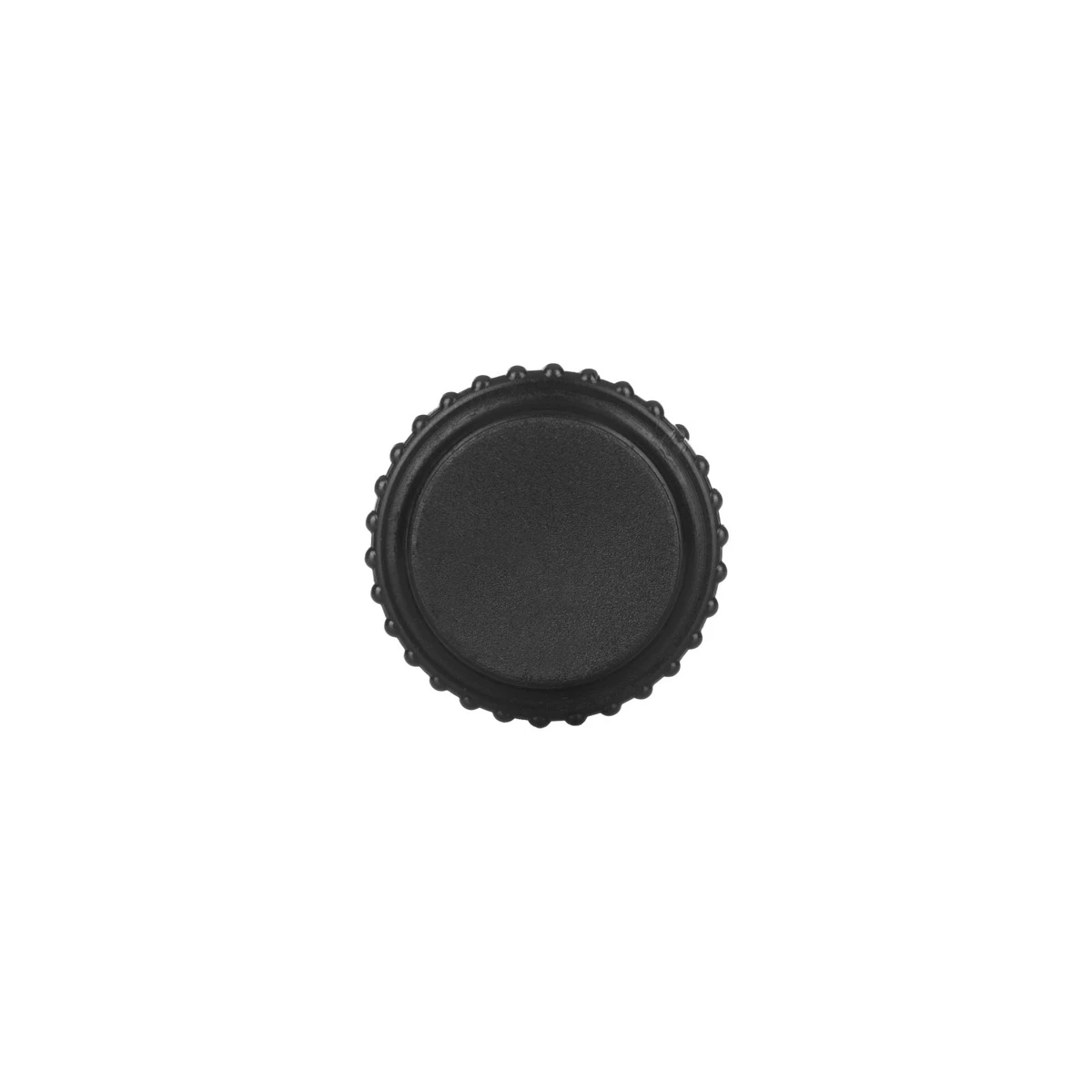

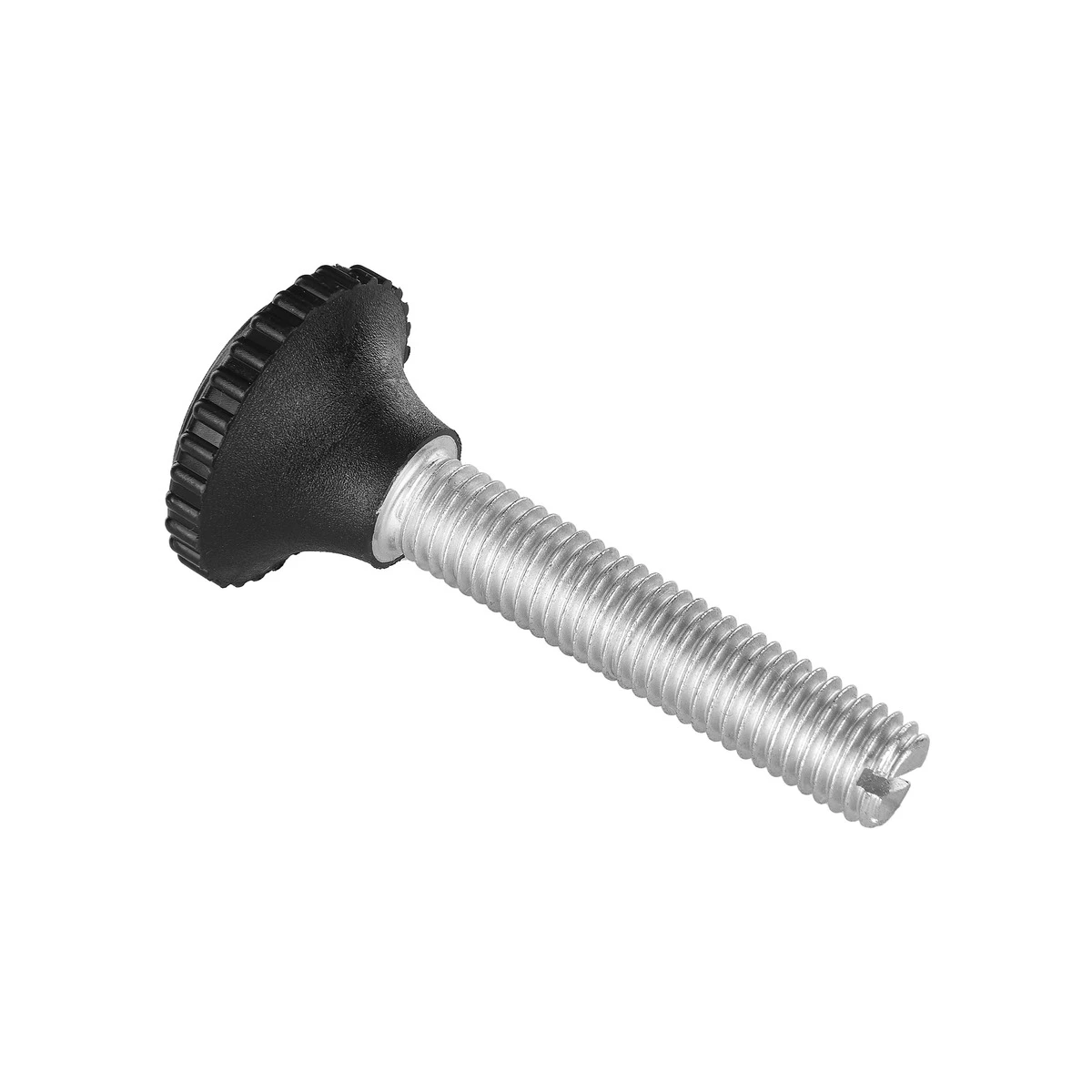

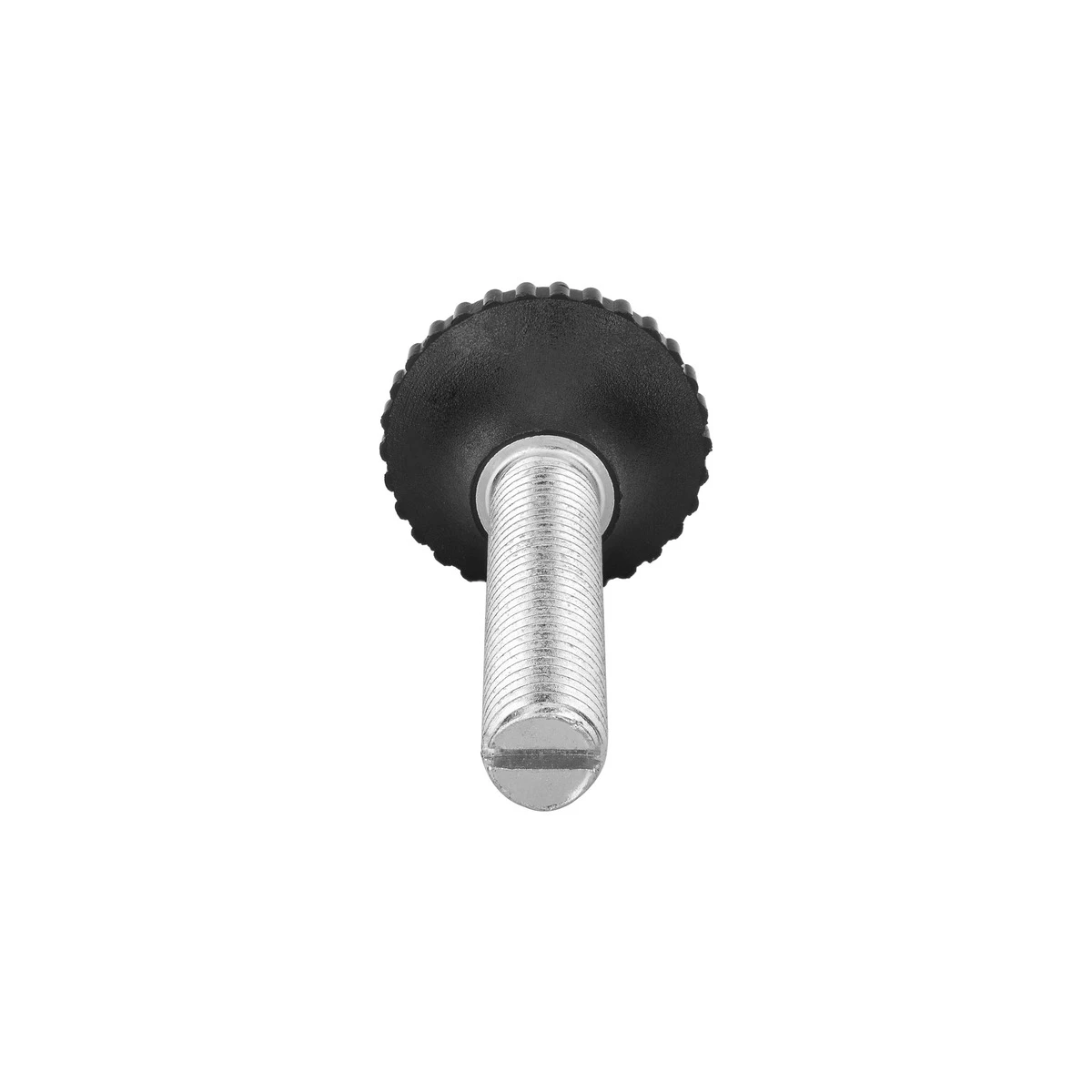

Notches cut into the threaded rod resist loosening from vibration. The foot stays at the set height without backing out. Ø 30 mm (M8 × 35 mm, M10 × 50 mm) and Ø 45 mm (M10 × 50 mm). Black.
M8 × 35 mm, M10 × 50 mm — vibration-resistant compact
M10 × 50 mm — heavy equipment, commercial fixtures

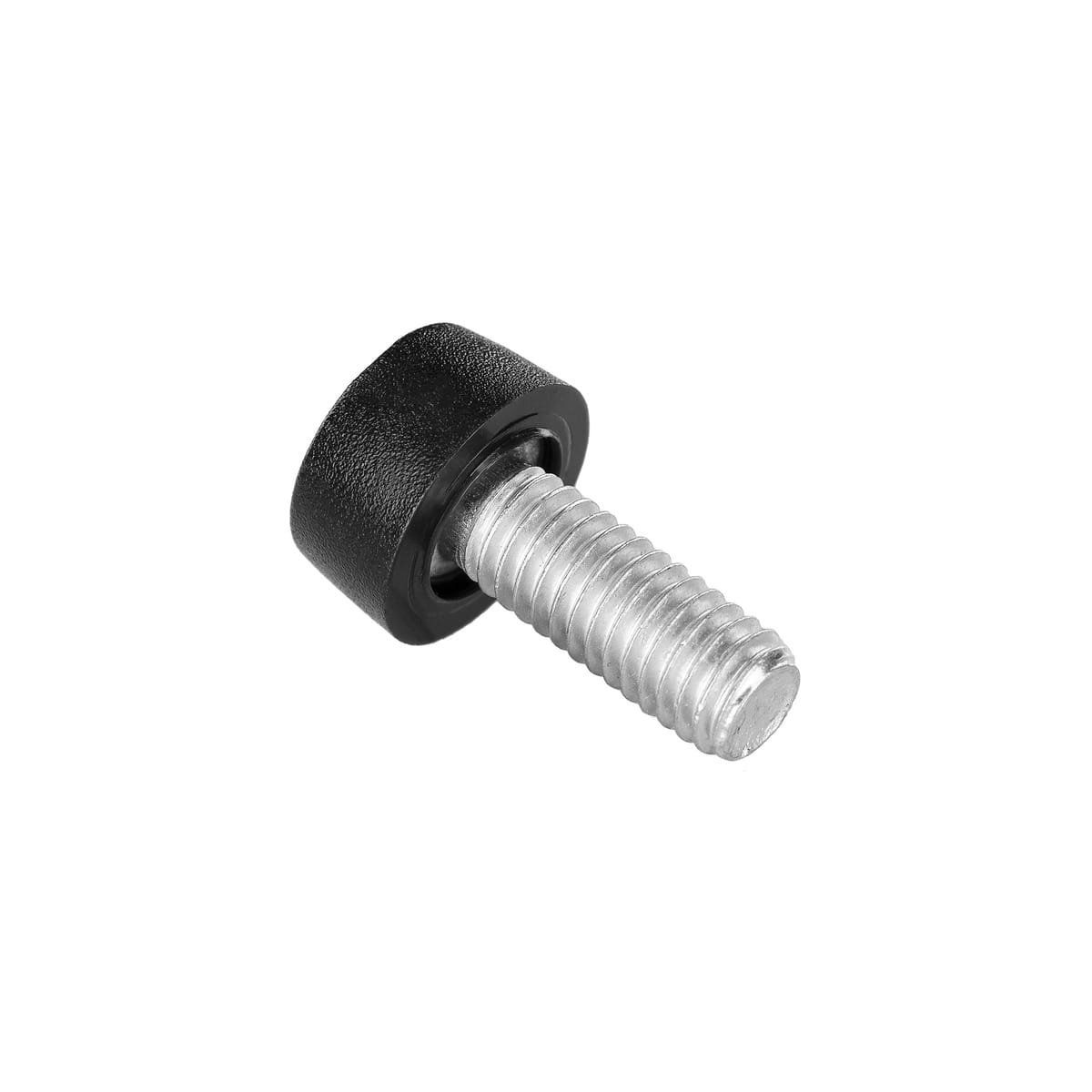

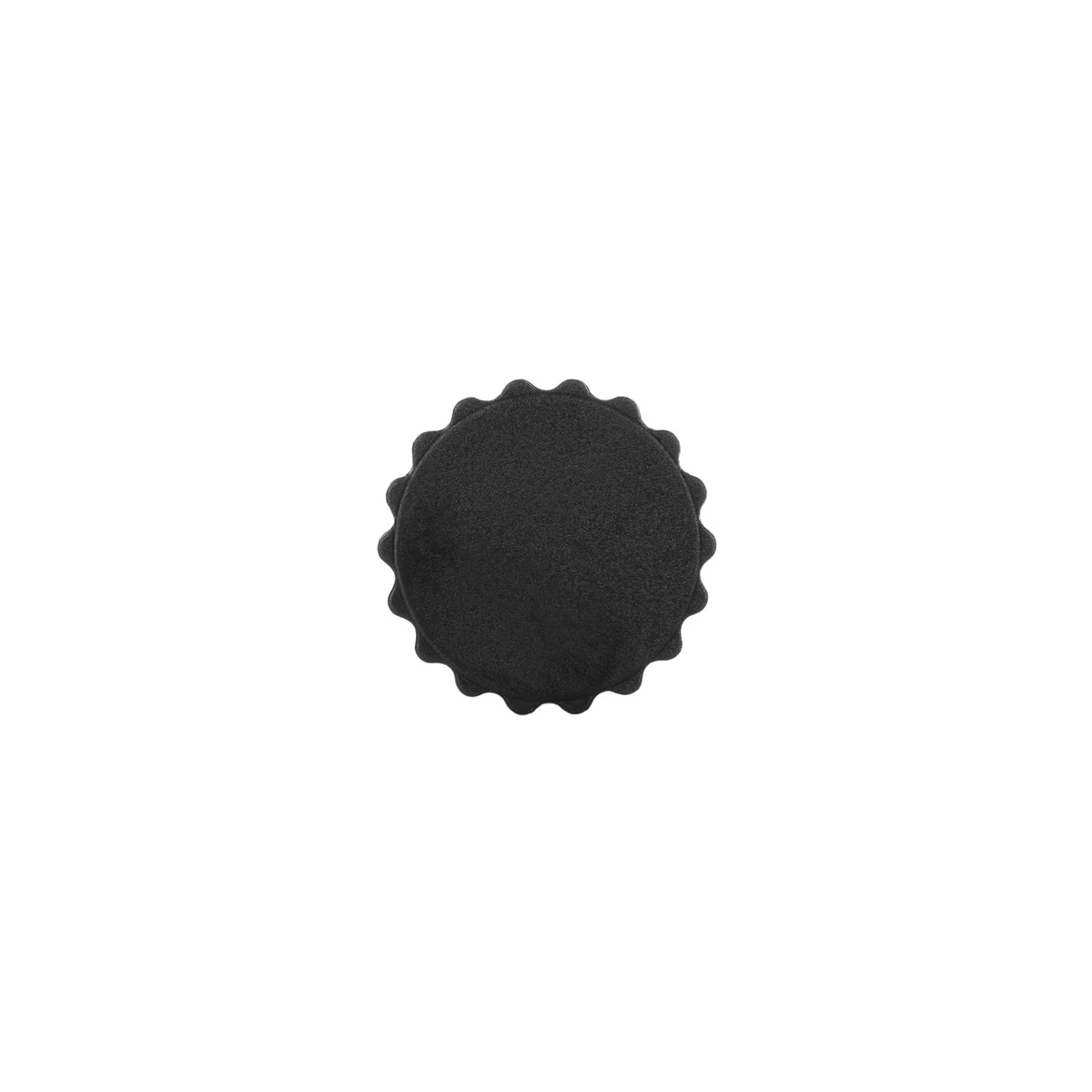

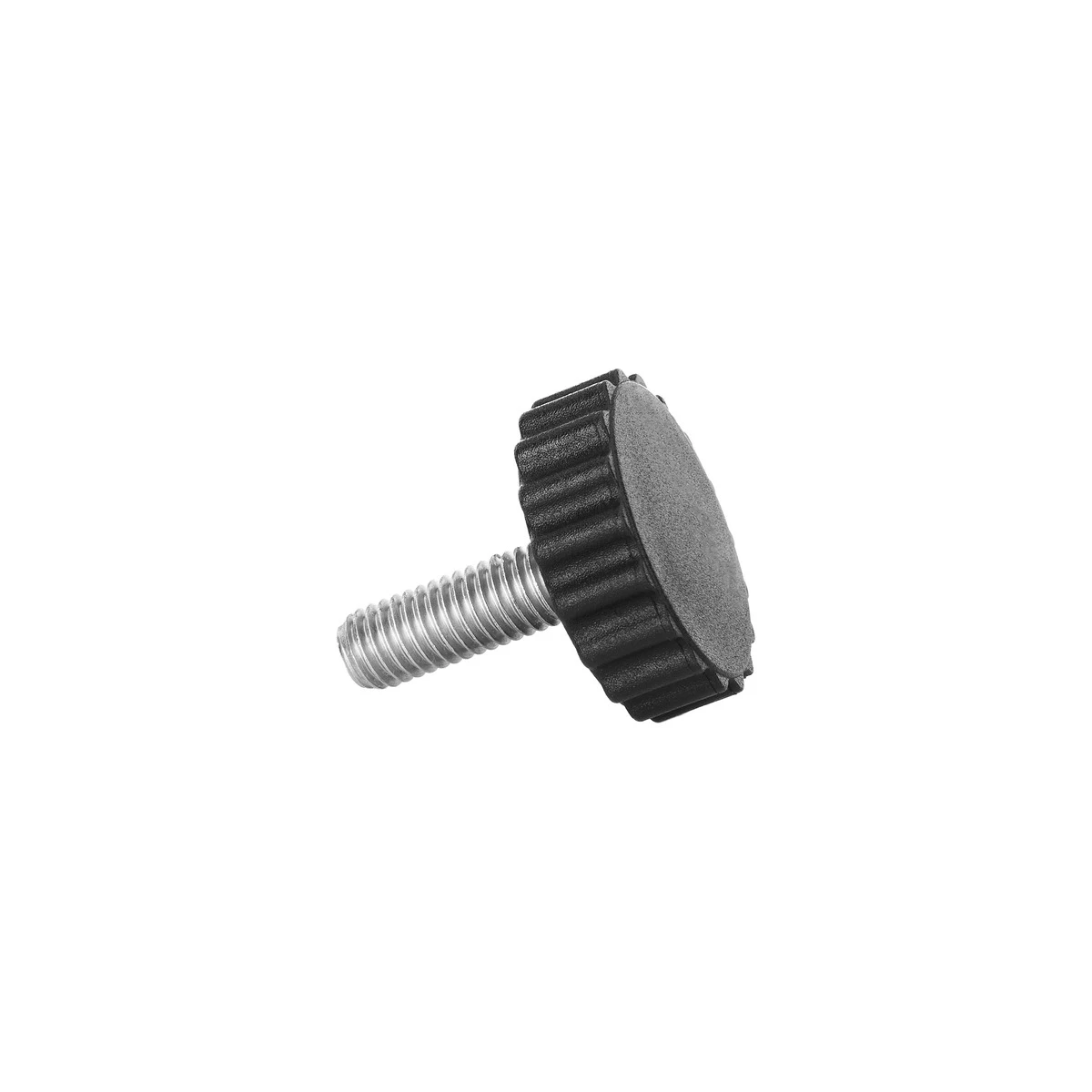

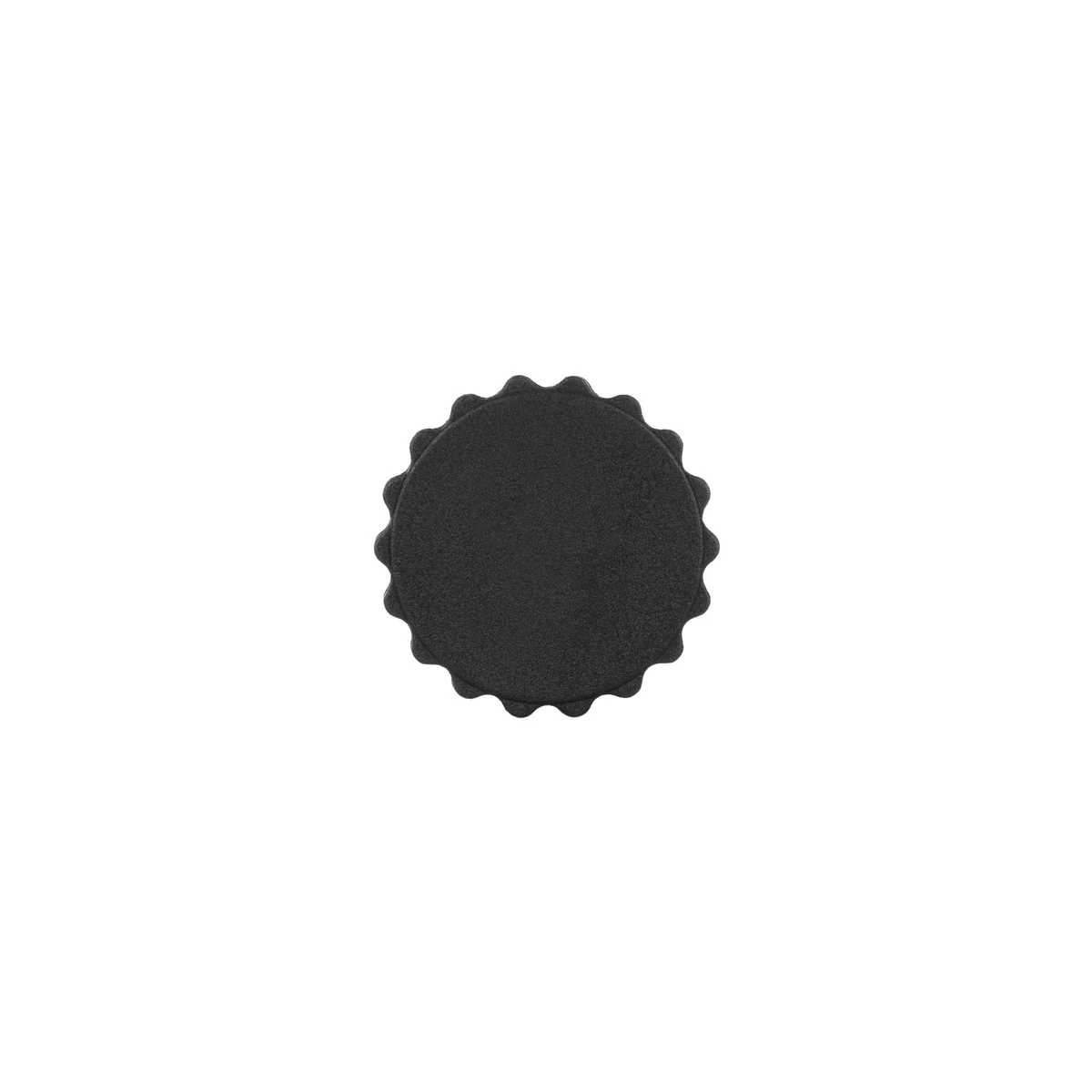

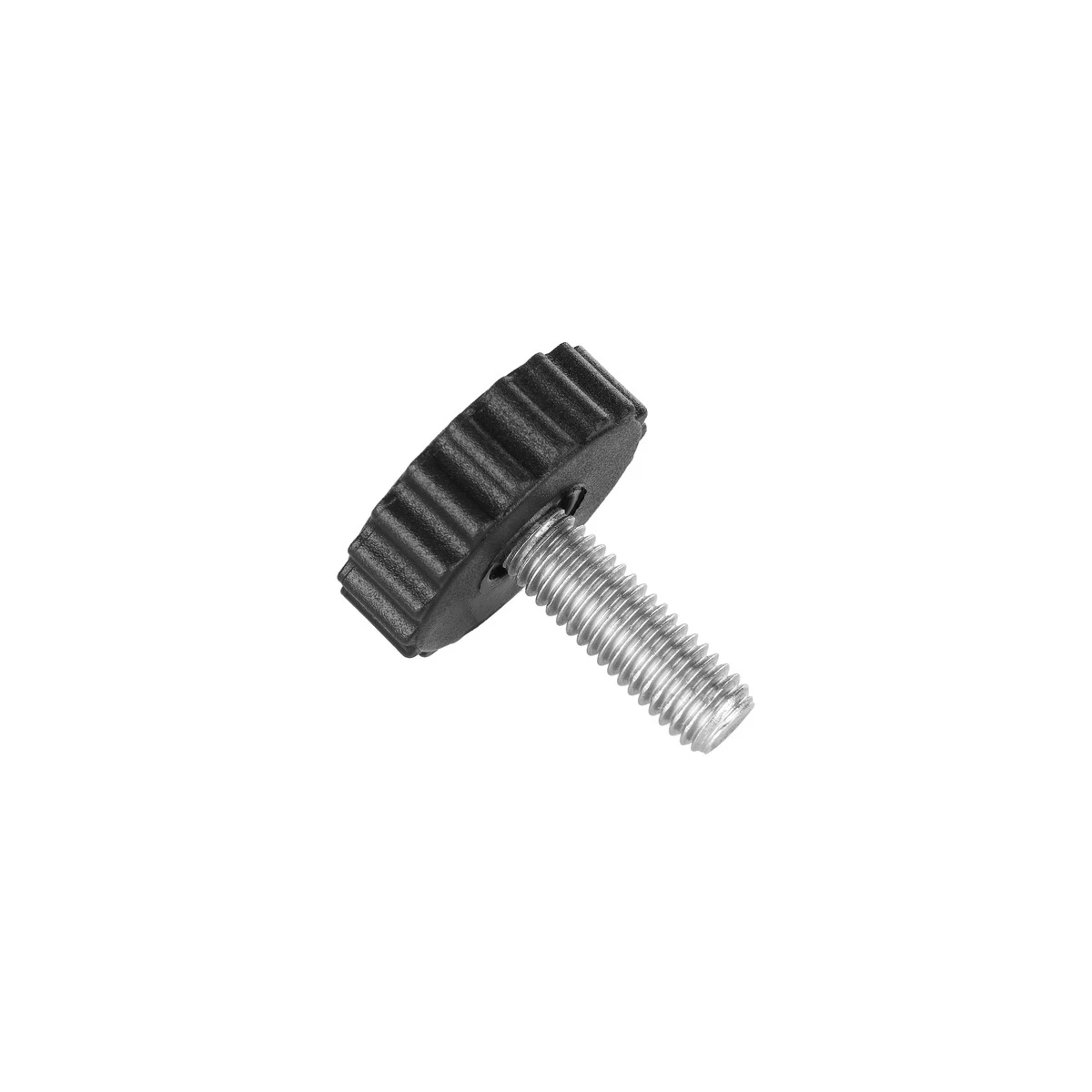

Ø 20 mm (M4 × 10 mm, M6 × 8–19 mm) and Ø 30 mm (M8 × 10–48 mm, M10 × 18–50 mm). 9 mm profile. Black, grey, and white.
M4 × 10 mm, M6 × 8–19 mm — small lightweight furniture
M8 × 10–48 mm, M10 × 18–50 mm — dining chairs, desks, tables
Low-profile base with PA6 floor-protection pad built into the base face. 9 mm profile plus floor protection in one part. Ø 30 mm / M8. Stem lengths 14–48 mm. Black.
M8 × 14–48 mm — low-profile floor protection

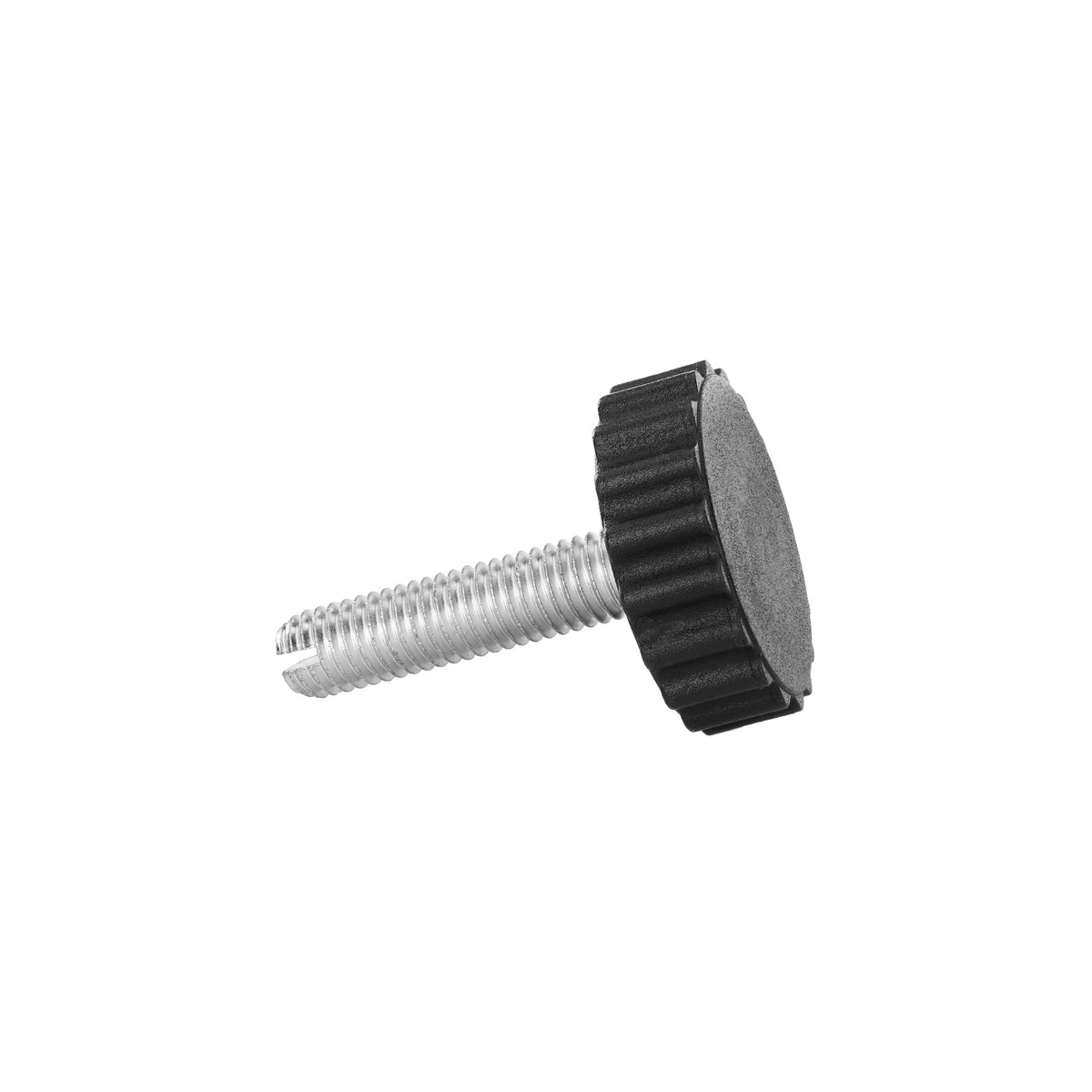

Notched rod in a low-profile form. Ø 10 mm (M4 × 10 mm) and Ø 35 mm (M8 × 30 mm). Black. For compact equipment and appliances subject to vibration, where a low profile is required.
M4 × 10 mm — compact vibration-resistant
M8 × 30 mm — low-profile vibration-resistant
Just 6 mm tall. The lowest profile in the entire range. For furniture designed to sit nearly flush to the floor. Ø 25 mm base. M8 × 21 mm and M10 × 20 mm. Black.
M8 × 21 mm, M10 × 20 mm — flush-to-floor modern furniture
When the standard or low-profile base is not the right fit. Wide bases (Ø 50 mm) distribute load for heavy equipment. Slim, mini, and smooth bases are purpose-built for design-led applications. Self-leveling tilt and ball-joint feet compensate for sloped floors. Fixed feet provide a finished screw-mount base without height adjustment.

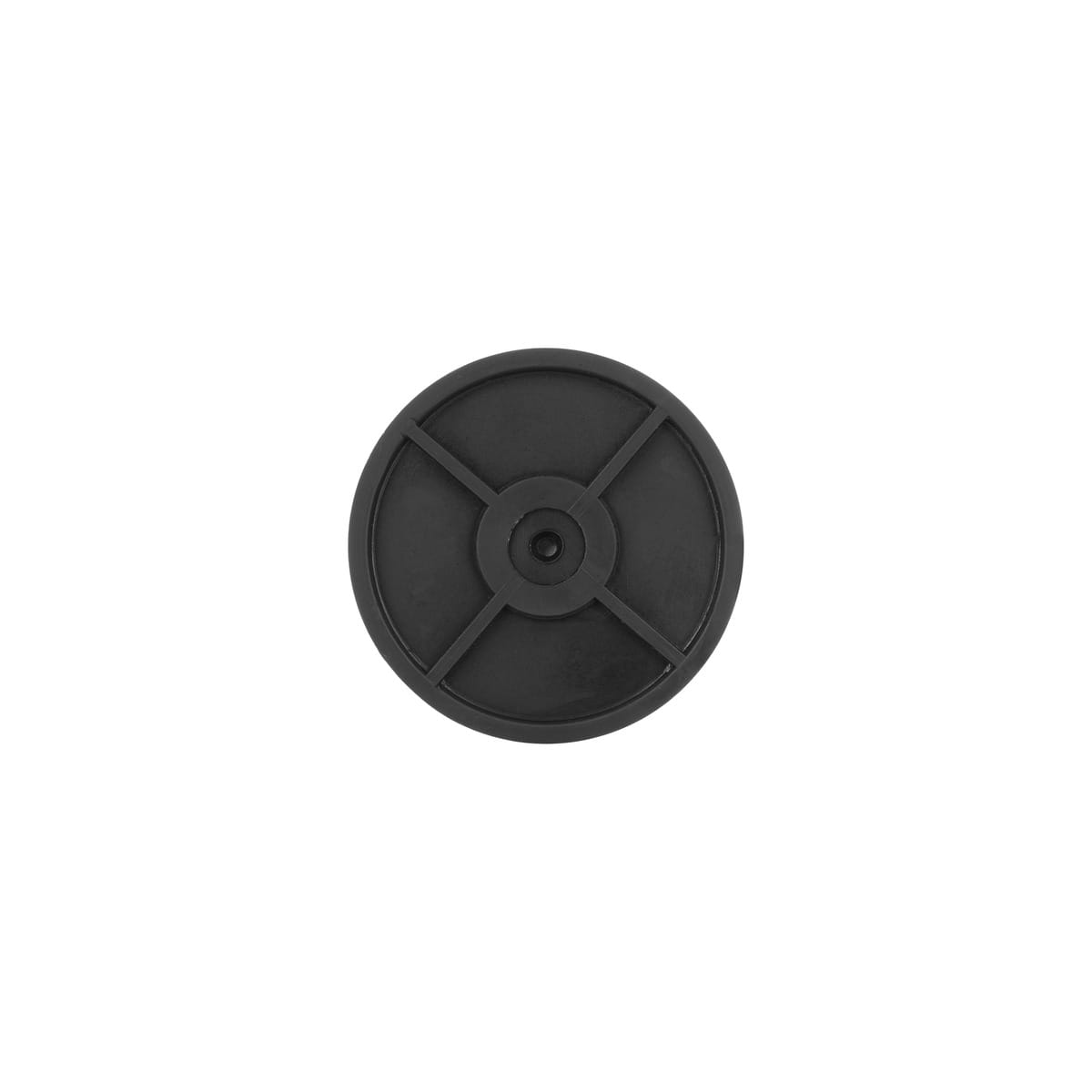

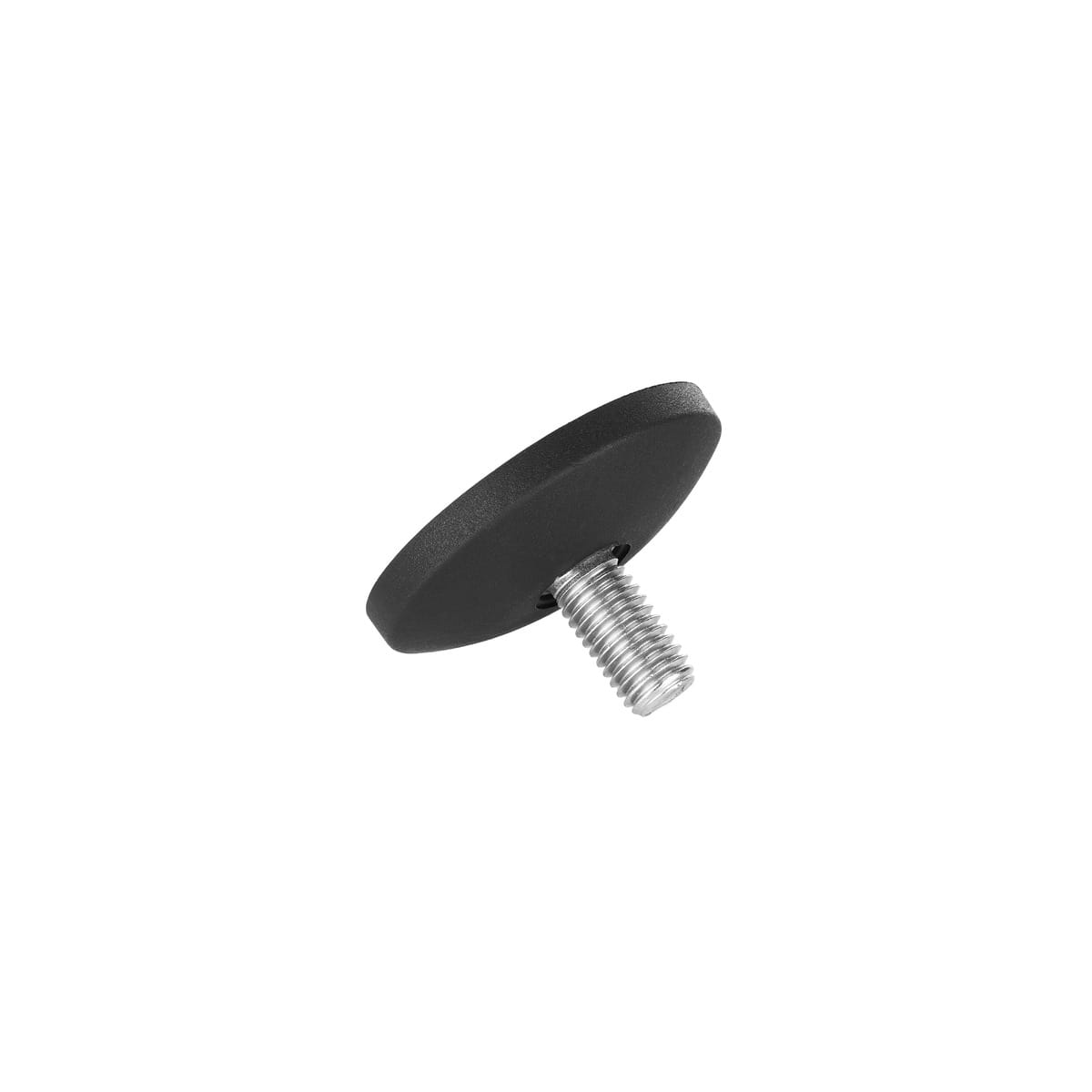

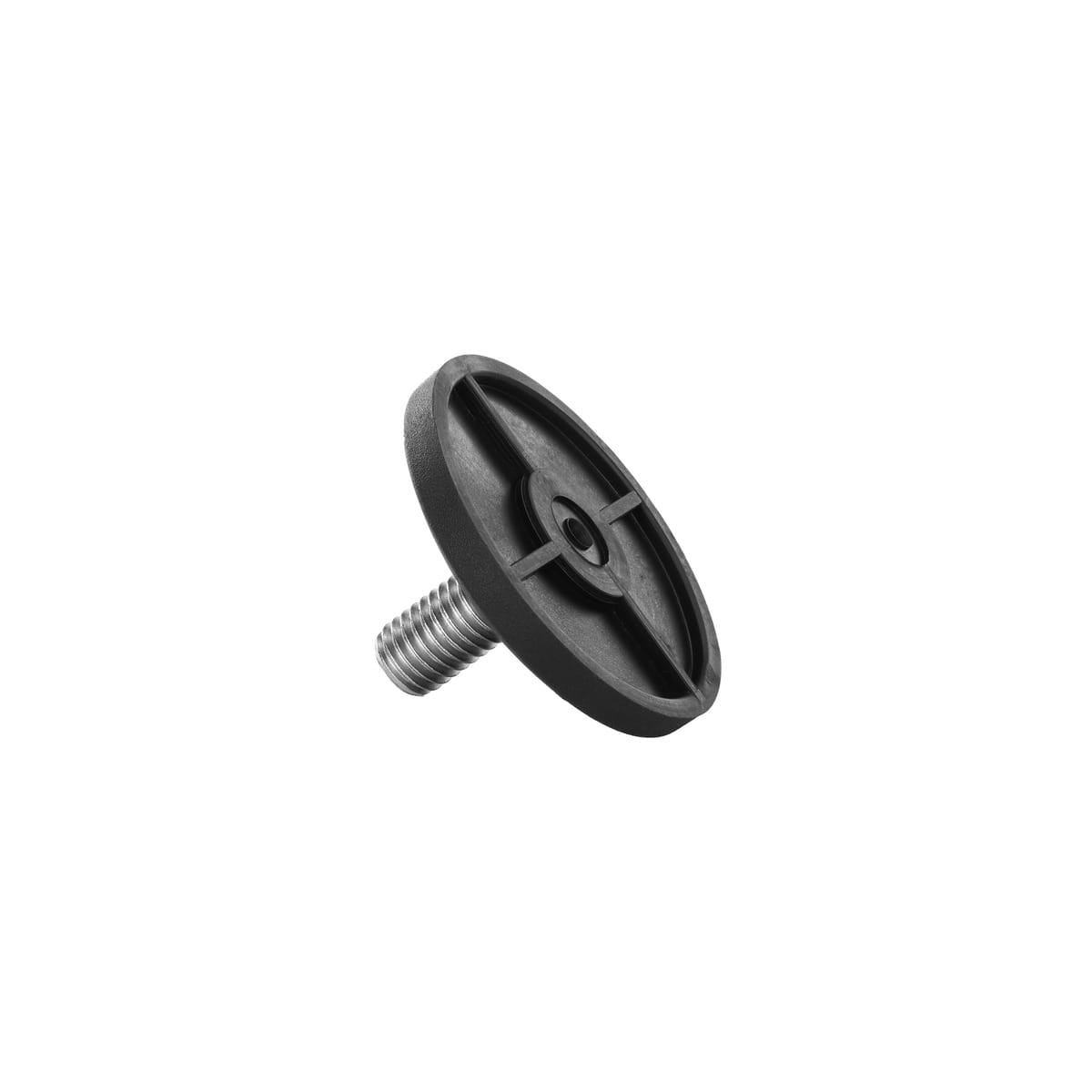

Smooth polymer base. Ø 50 mm / M8. Stem lengths 23 mm and 28 mm. Black and Grey.
PA base — heavy tables, workbenches, server racks
PA base — heavier equipment, commercial shelving

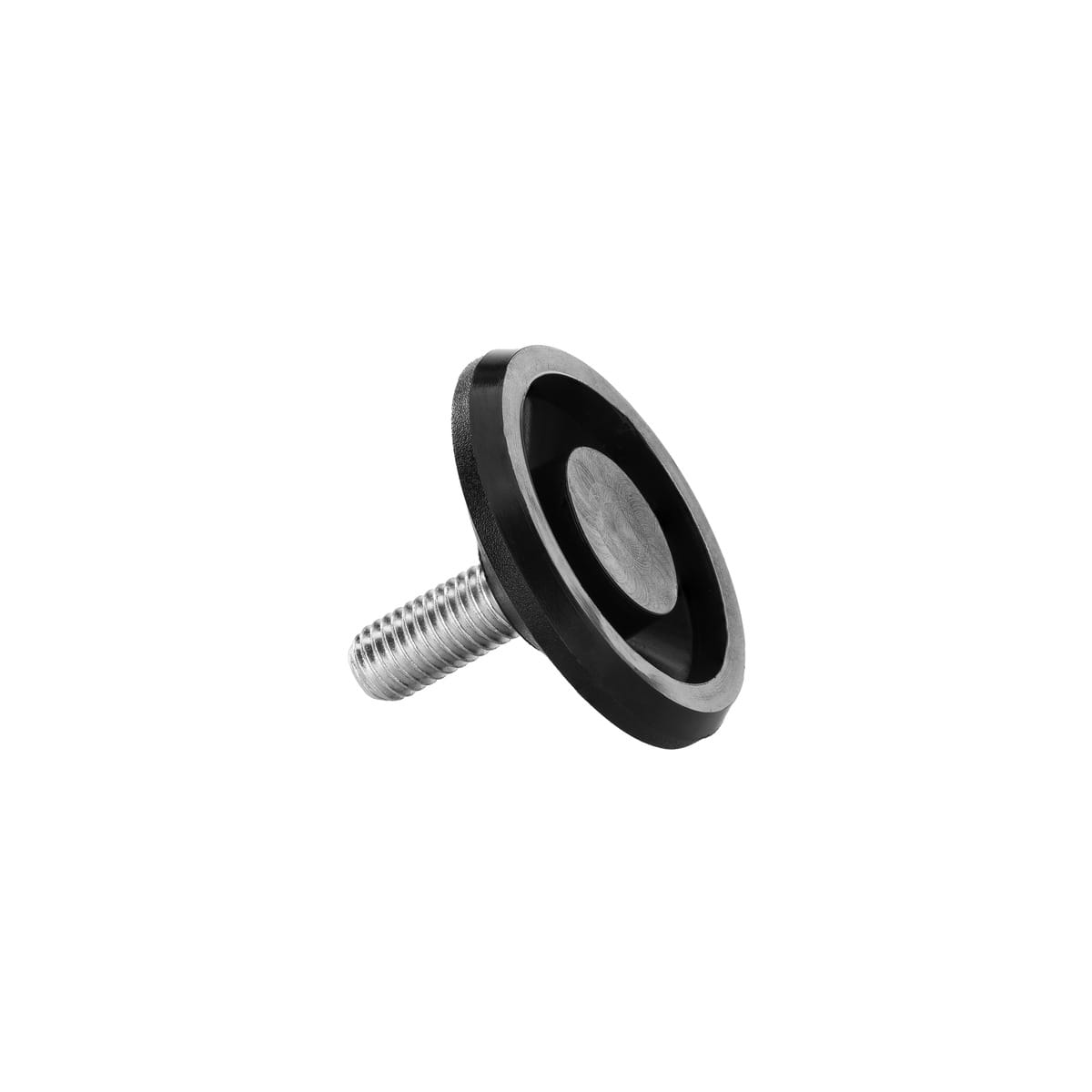

Anti-slip rubber base grips the floor instead of gliding. Ø 50 mm / M8 × 23 mm. Black. For heavy equipment that must hold position on smooth, hard floors.
TPE base — fixed-position heavy equipment, grips smooth hard floors
Ø 40 mm clean-profile base. Single configuration: M8 × 20 mm. Black. For contemporary furniture where the leveling foot should appear intentional rather than industrial.

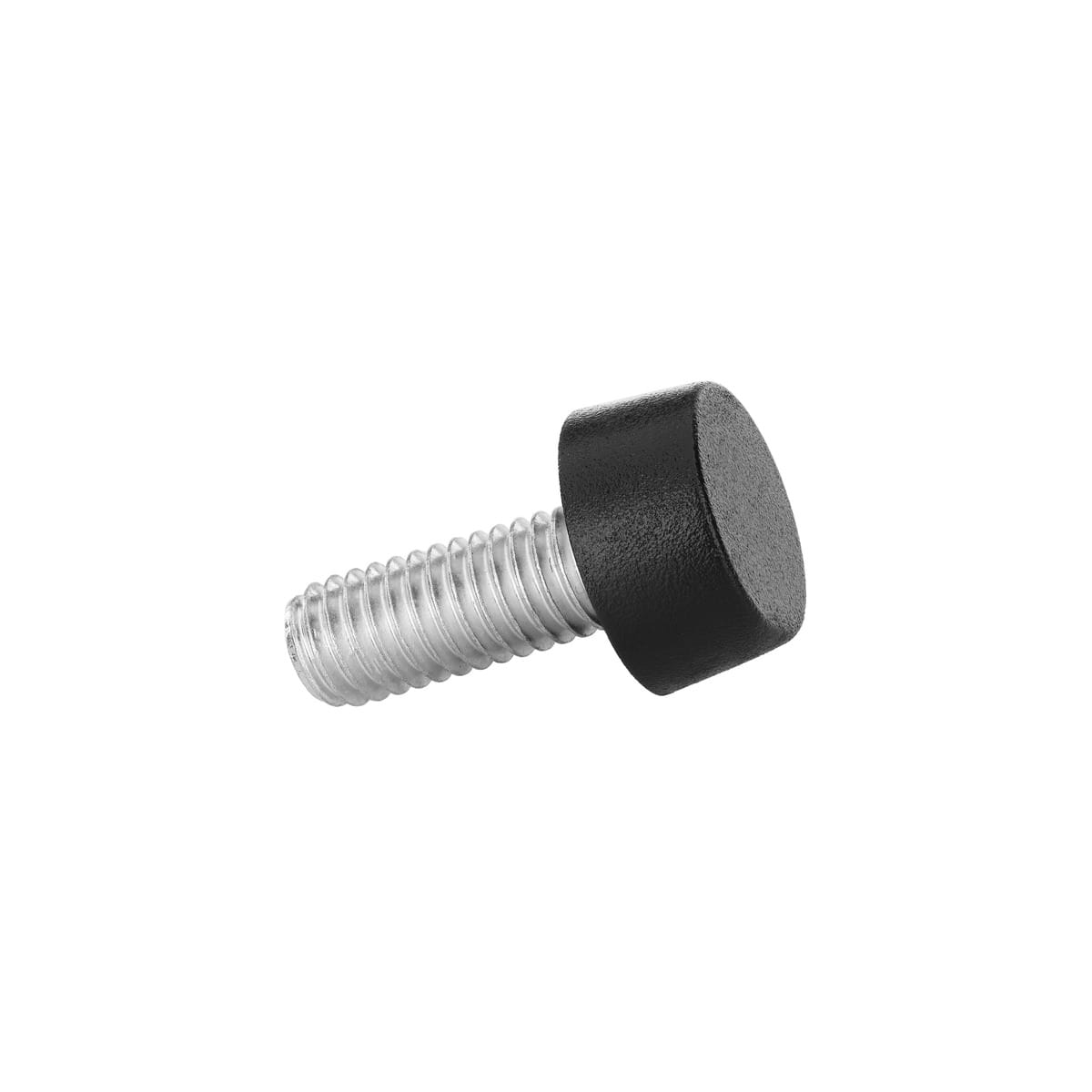

Ø 13 mm. The smallest base in the range. M6. Stem lengths 15 mm and 20 mm. Black. For small, lightweight furniture where a standard base would be too large and visible beneath the leg.

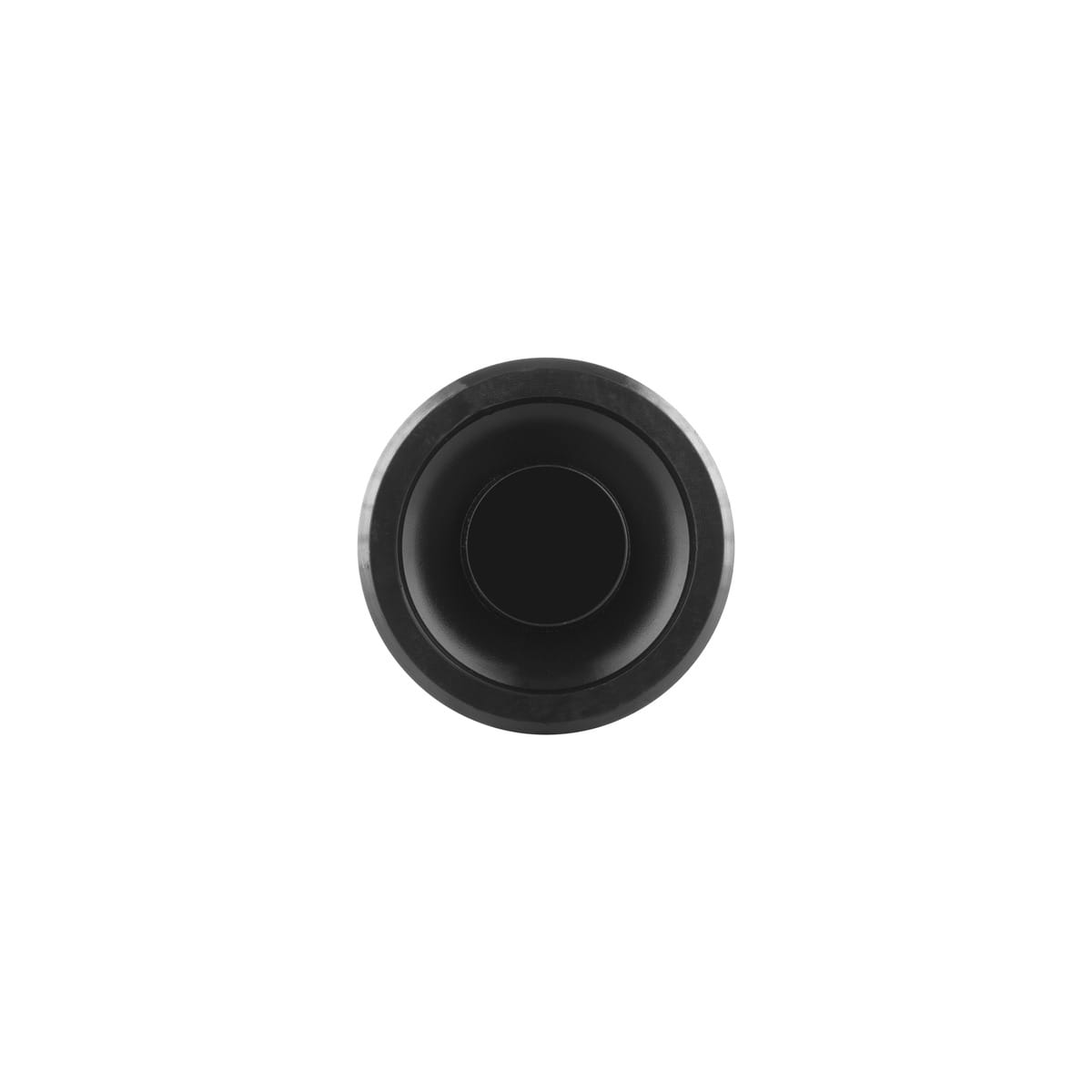

Rounded profile with no exposed hardware on the base face. Ø 30 mm / 9 mm tall. M8 (× 28 mm, × 33 mm) and M10 (× 18 mm, × 33 mm). Black. A hex-key version is available for fine height adjustment.

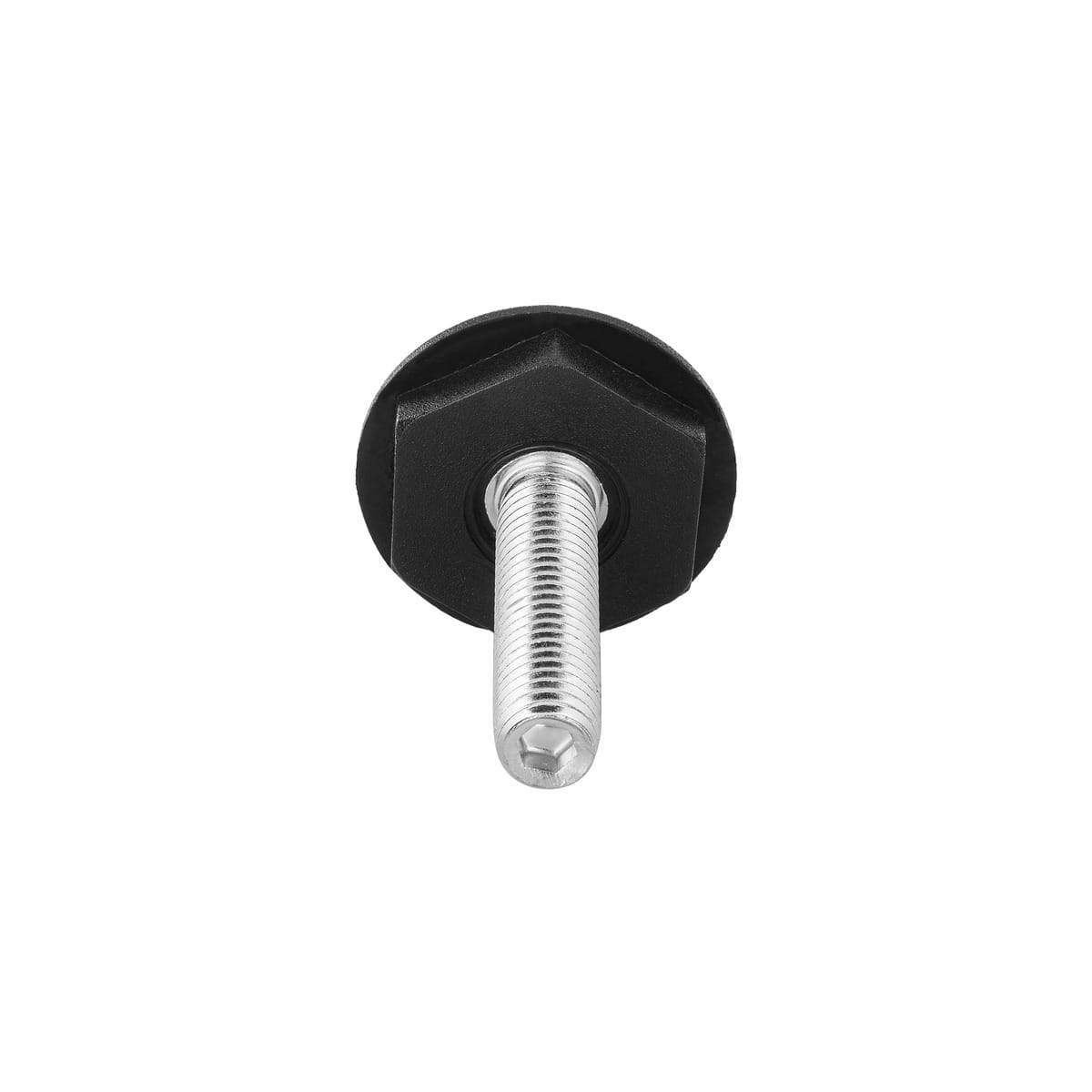

Smooth base with a hex-key socket on the top face for precise height adjustment with an Allen key. Ø 30 mm. M8 (× 14 mm, × 33 mm) and M10 (× 33 mm). Black.
Pivoting base automatically compensates for floor slope up to 9°. Maintains full base contact on uneven floors without manual adjustment per leg. Ø 30 mm (M8, M10) and Ø 48 mm (M10). Stem lengths 30 mm and 50 mm. Black.
M8 × 30 mm, M10 × 30–50 mm — dining tables, desks
M10 × 30–50 mm — heavy furniture on uneven floors

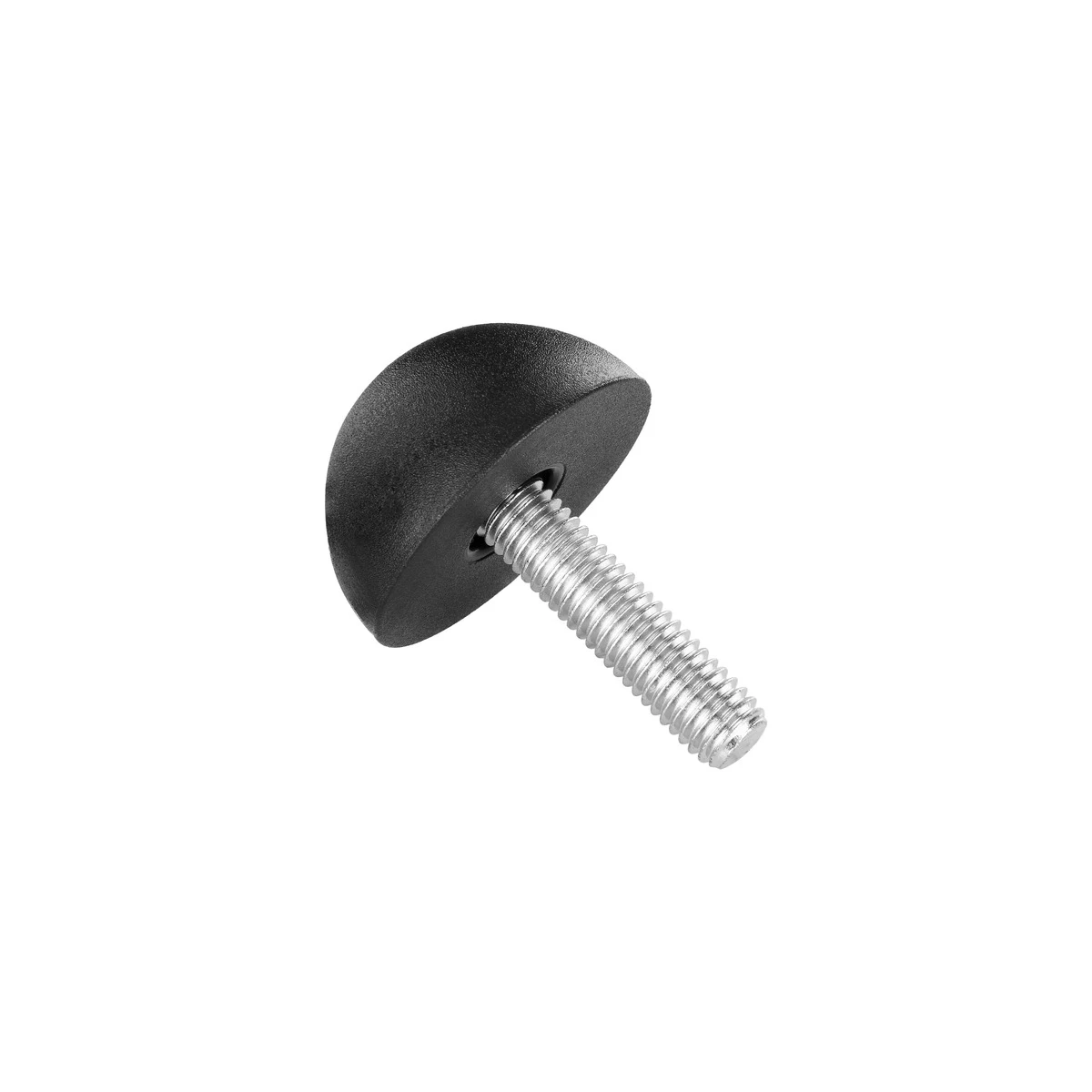

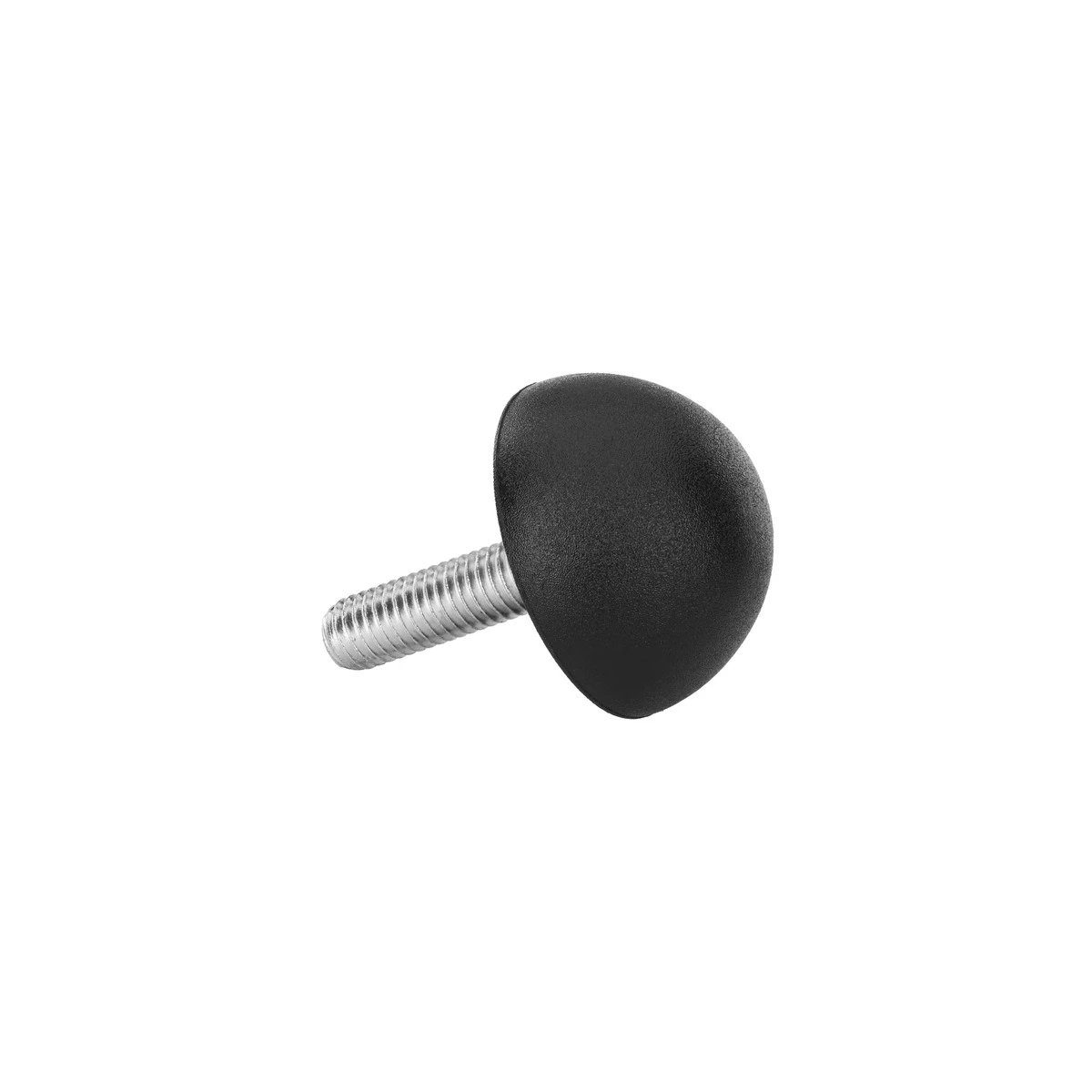

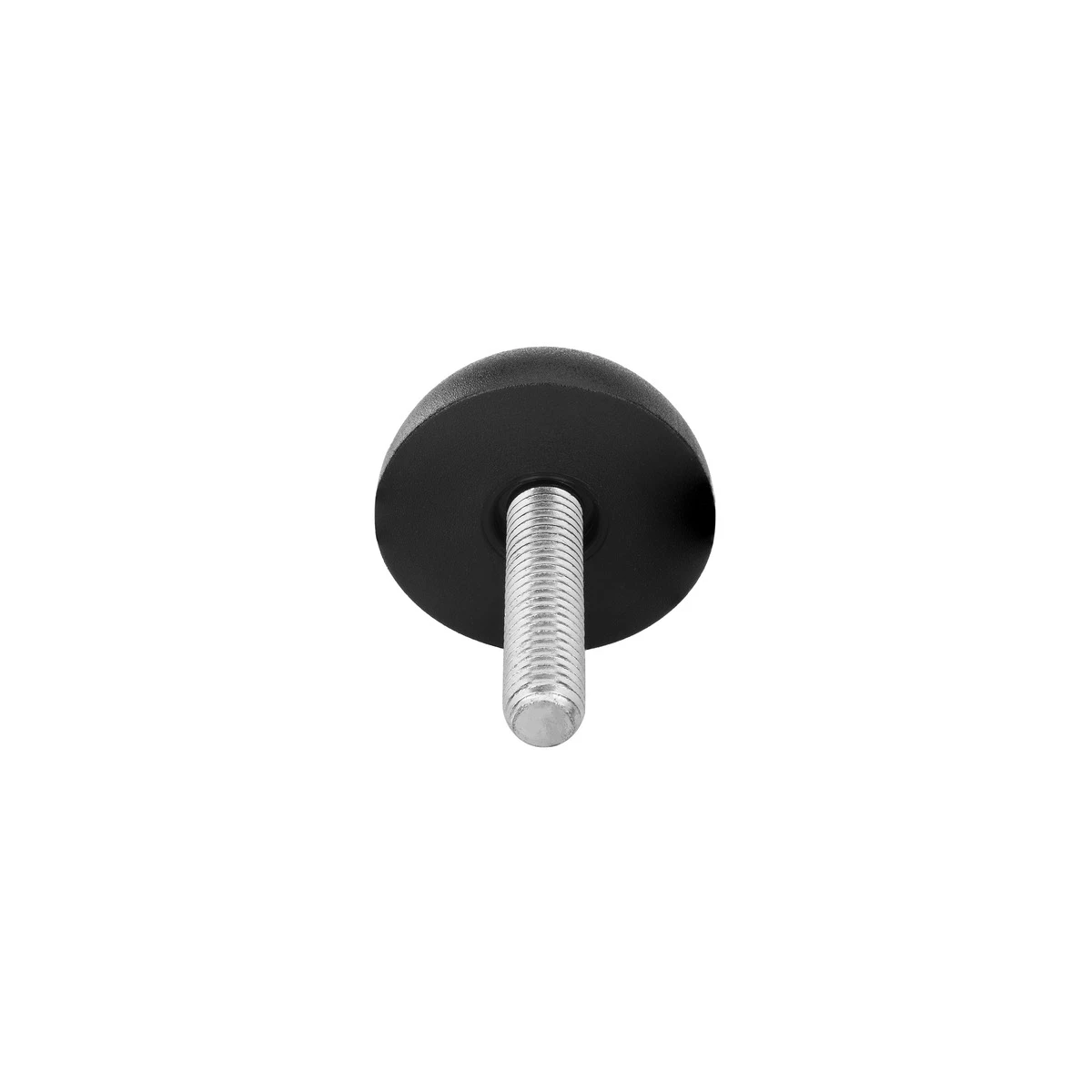

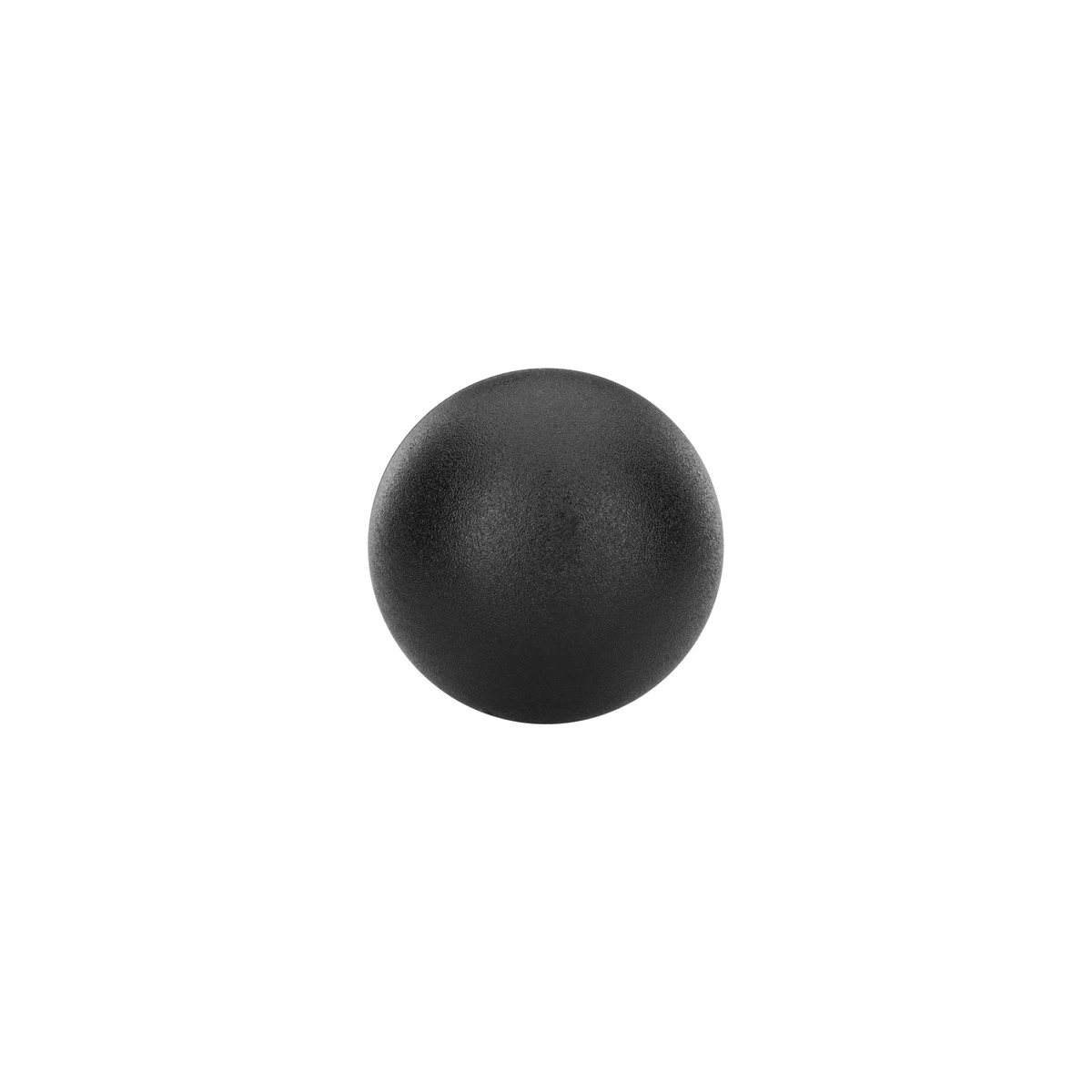

Full 360° pivot on a ball-and-socket joint. Compensates for any direction of floor slope, not limited to one axis like the tilt version. For furniture on significantly sloped floors, ramps, or angled surfaces. Ø 10 mm (M4) and Ø 35 mm (M8). Black.
M4 × 10 mm — compact ball joint for small furniture
M8 × 30 mm — standard ball joint for larger furniture

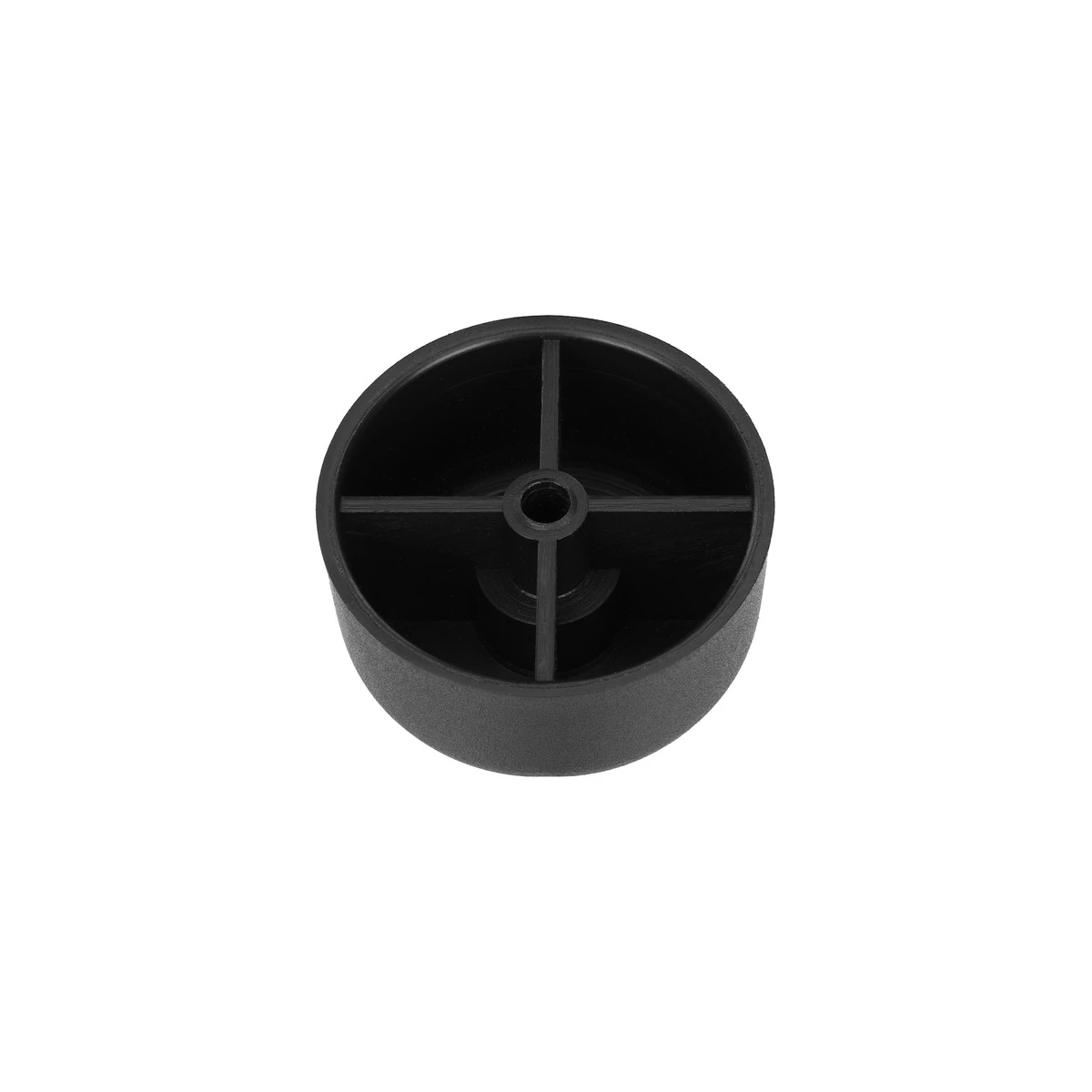

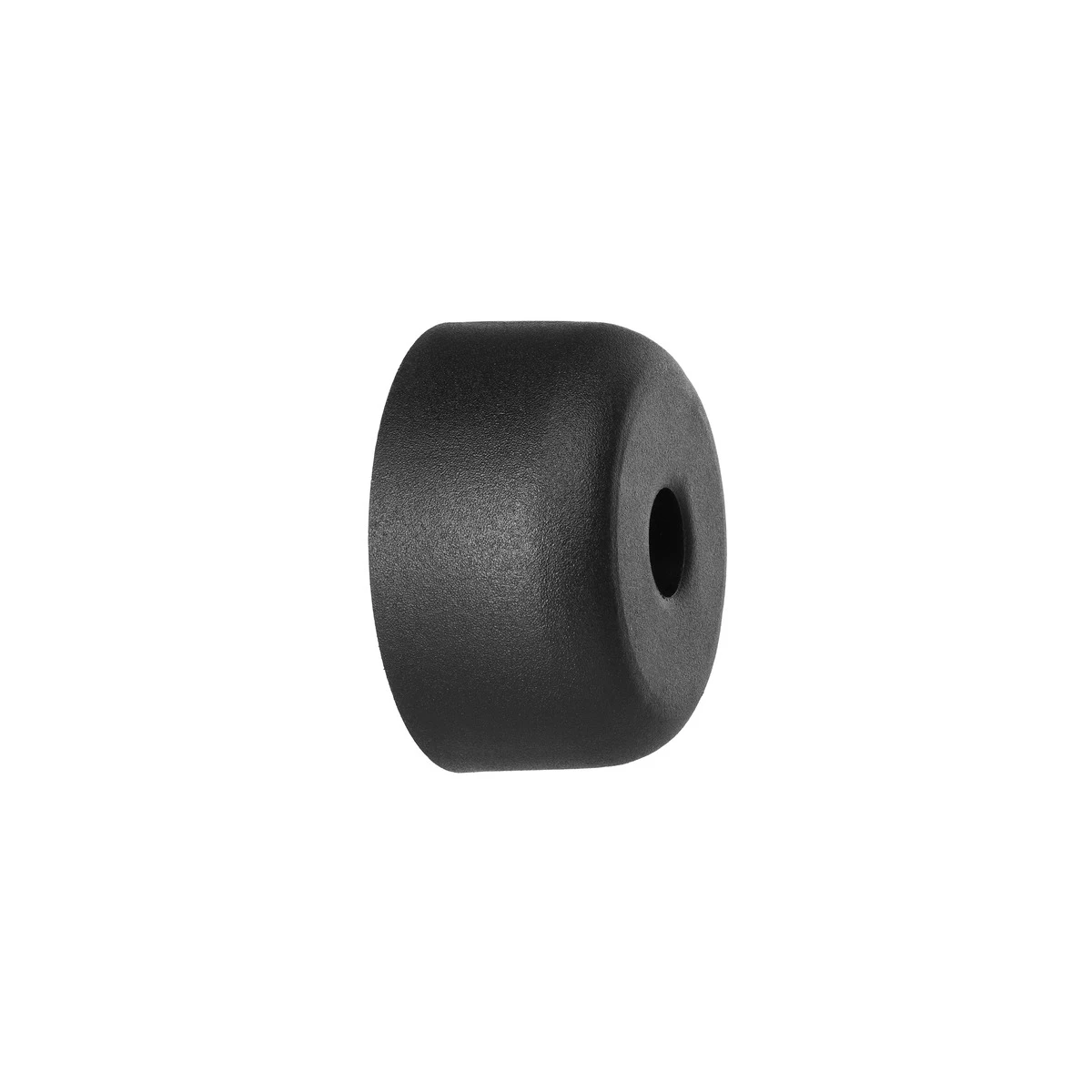

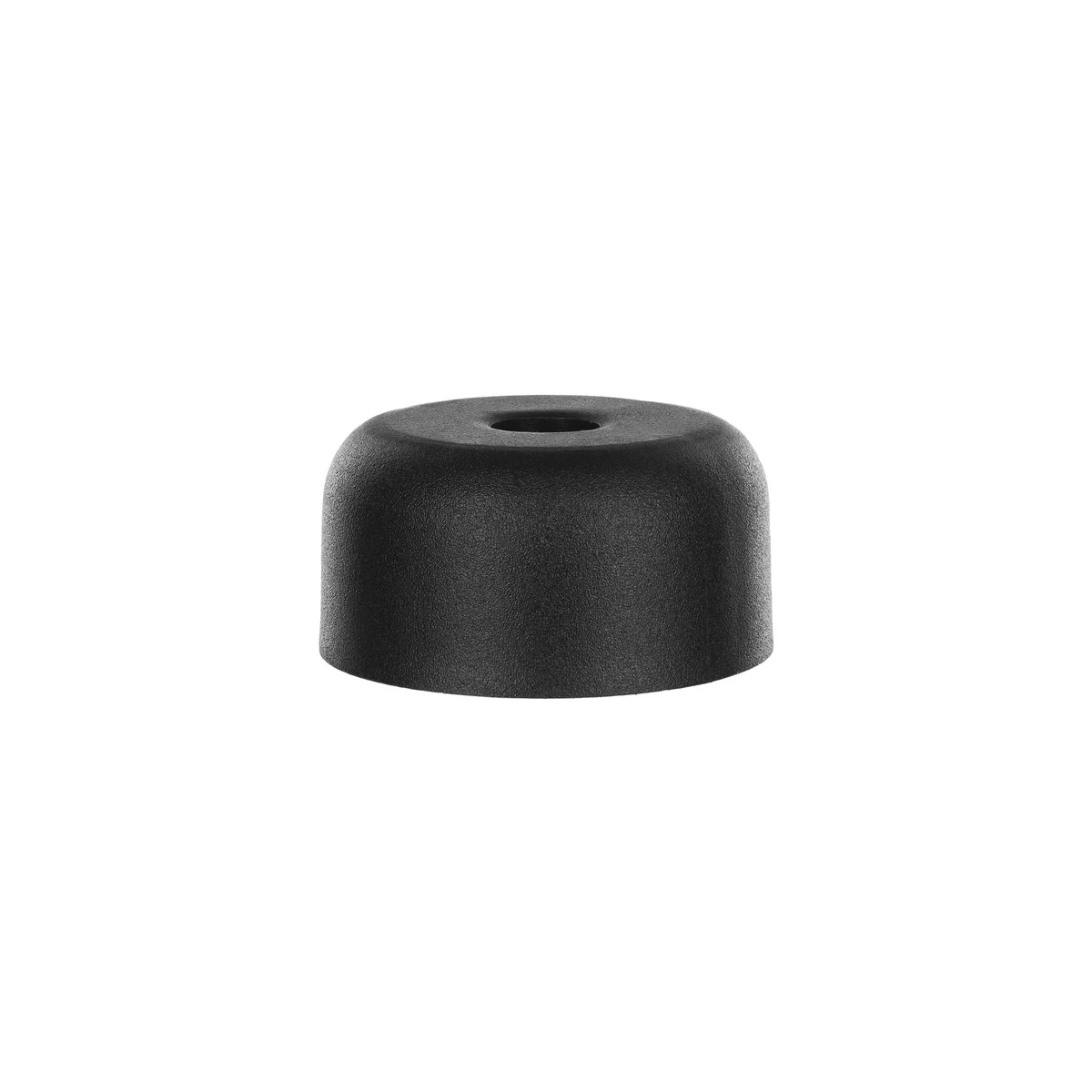

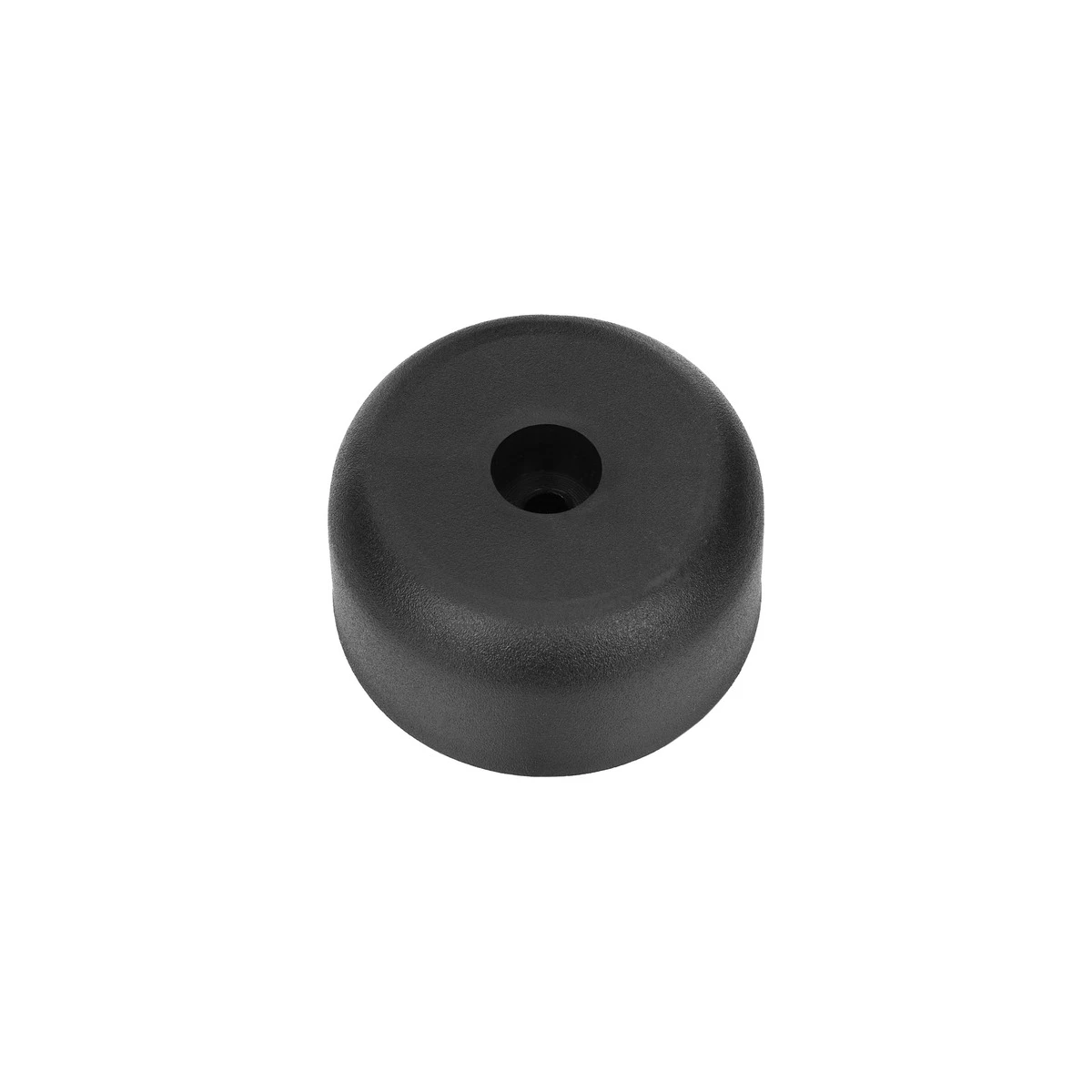

Screw-mount furniture foot. Ø 49 mm base with a central screw hole (Ø 5.3 mm through-hole, Ø 11.5 mm countersink). 25 mm total height. Attaches directly to the furniture base with a single screw. No threading into an insert required. Black, Grey, White.
Screw-mount. For solid furniture bases that need a finished foot without leveling adjustment. Black, Grey, White.
Standard and low-profile bases with a stainless steel rod instead of zinc-plated steel. For outdoor furniture, marine environments, food-service equipment, and any application where corrosion resistance is required. The stainless rod resists salt spray, humidity, and cleaning chemicals that corrode standard rods over time.

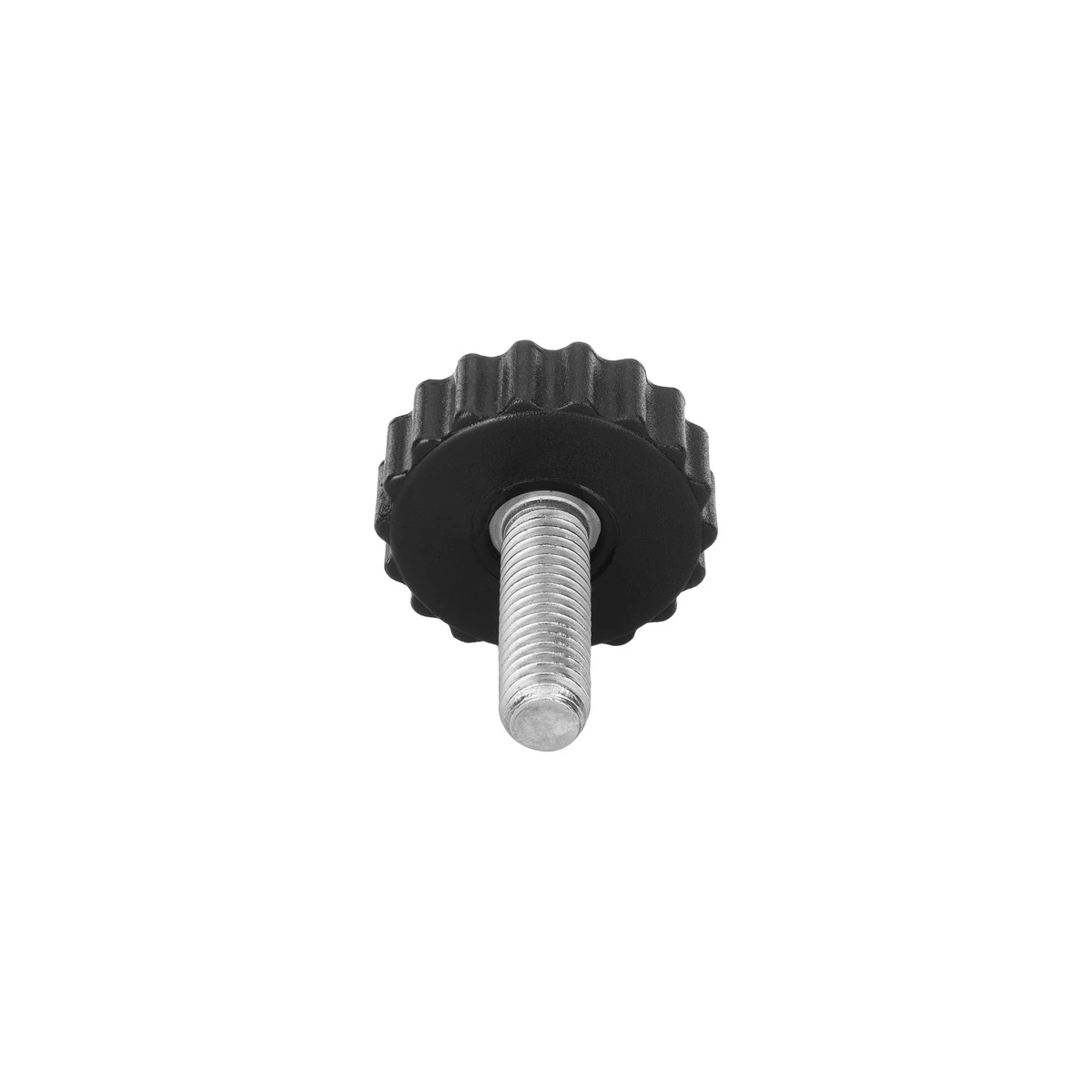

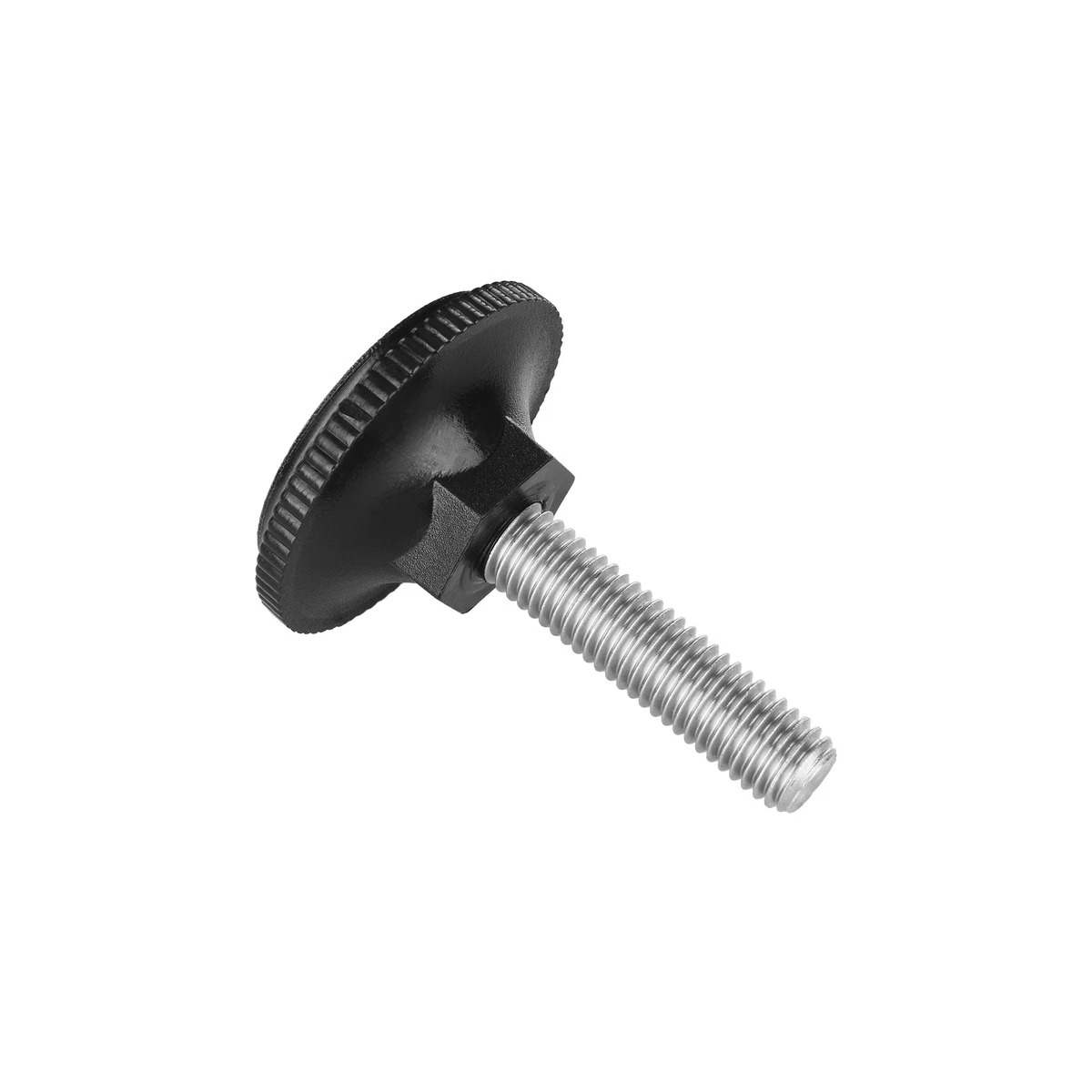

Polymer base with stainless steel rod. Ø 30 mm (M6 × 18 mm, M8 × 24–28 mm, M10 × 28 mm) and Ø 45 mm (M10 × 28–40 mm). Black and Grey.
M6–M10 — outdoor furniture, wet environments
M10 — commercial outdoor and marine equipment
Low-profile polymer base with stainless steel rod. 9 mm height. For outdoor and marine furniture that needs a low-profile foot with corrosion-resistant hardware. Black and Grey.
M6–M10 — outdoor low-profile furniture

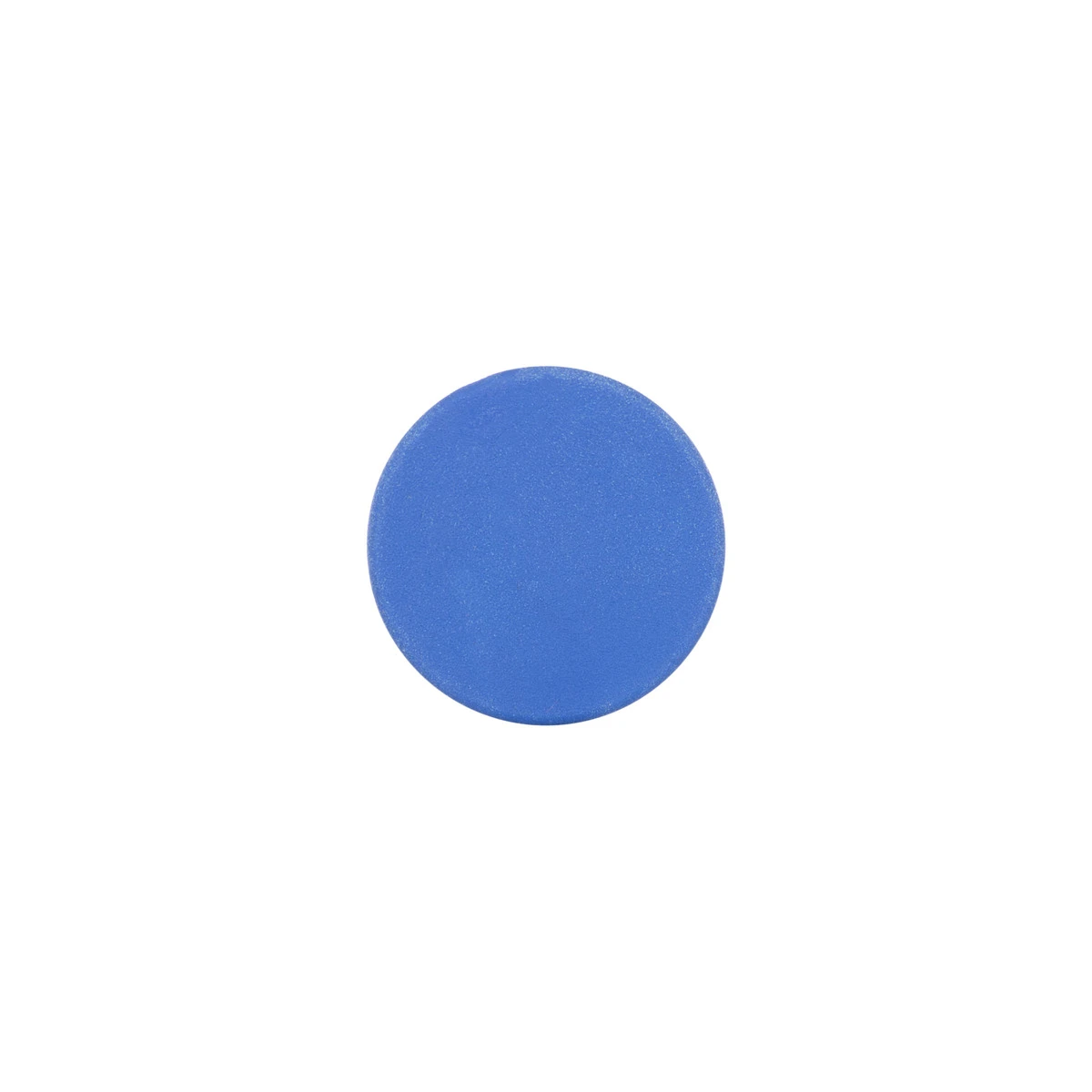

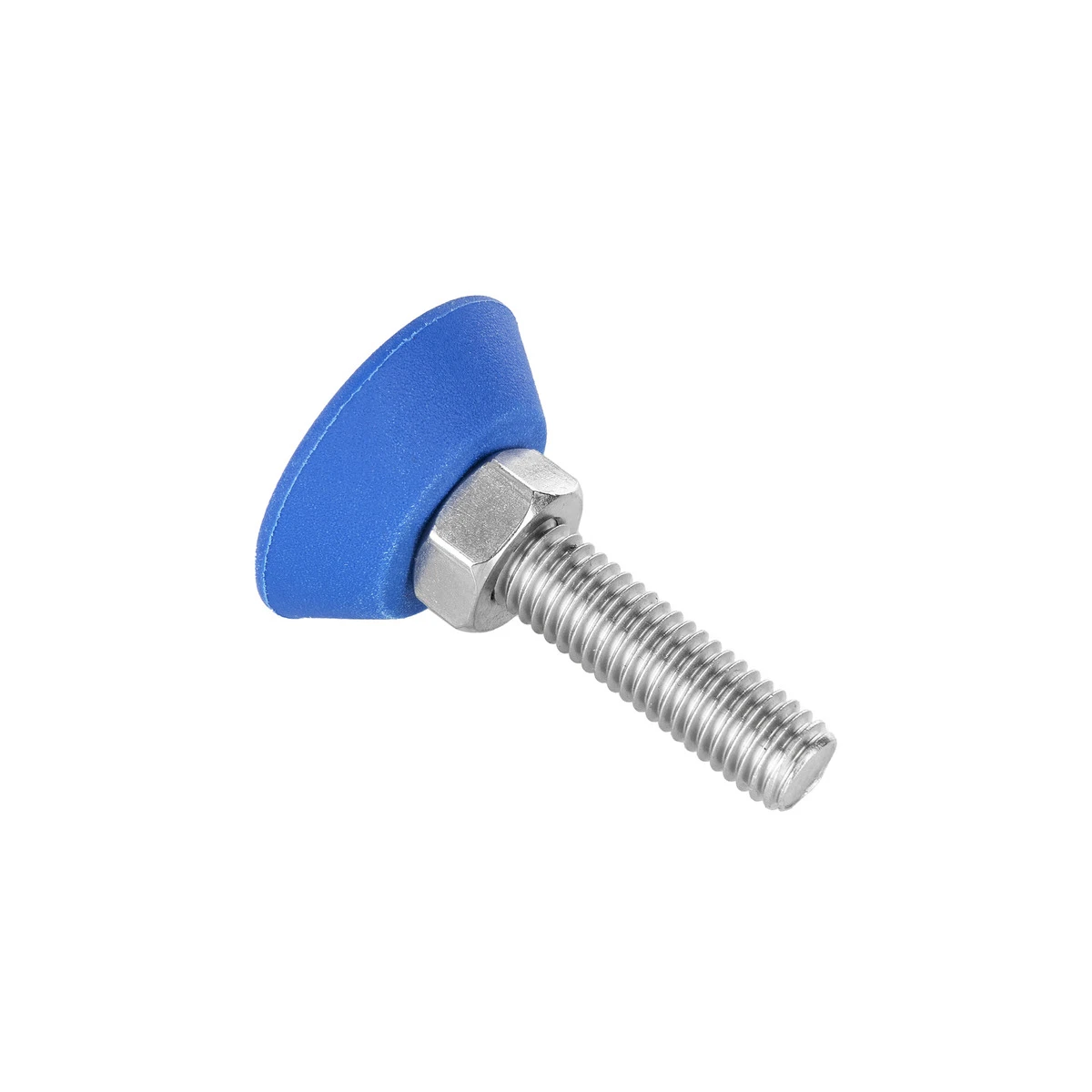

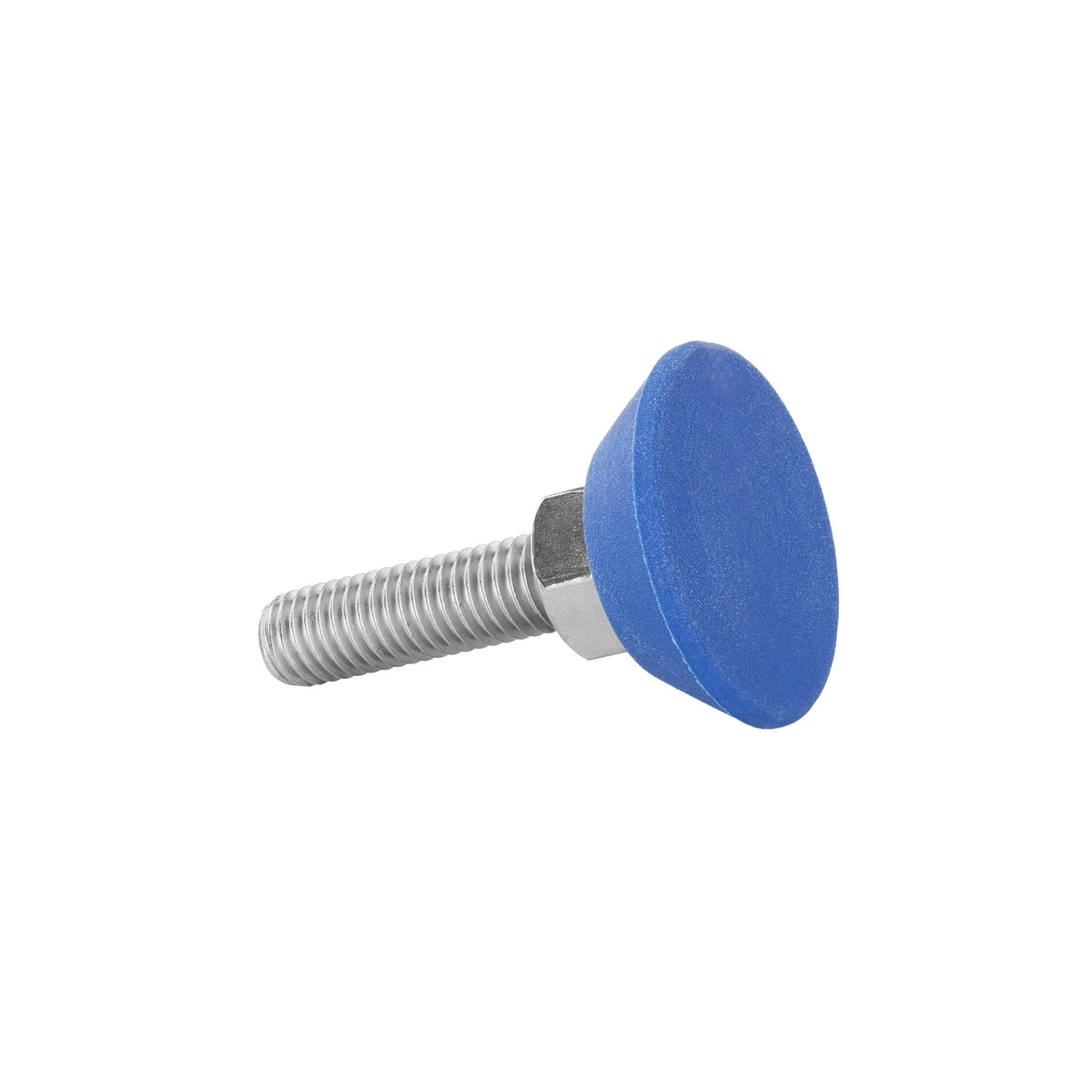

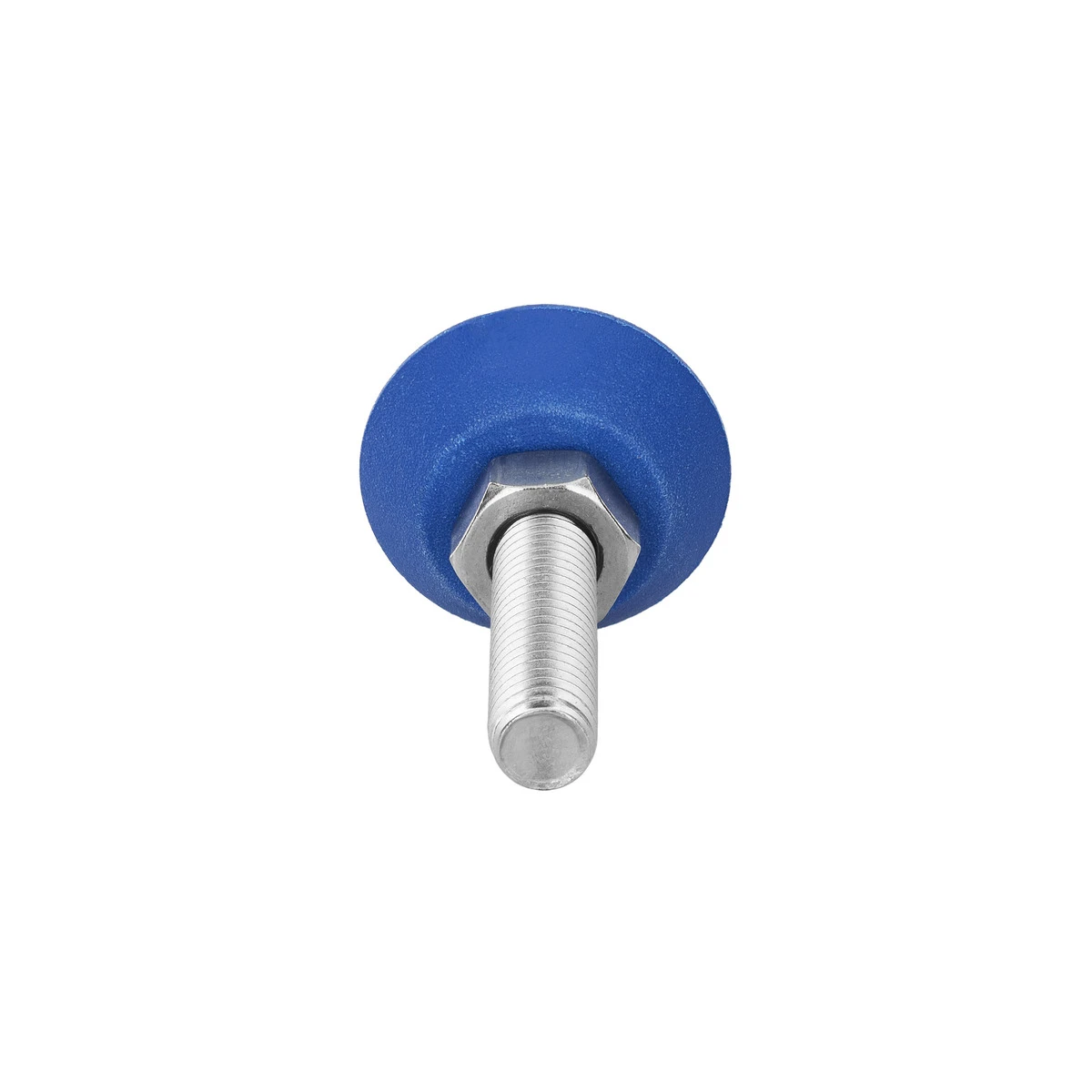

Anti-slip rubber base with stainless steel rod and stainless hex nut. The base grips smooth, hard floors. Stainless construction throughout for marine, outdoor, and food-service environments where both grip and corrosion resistance are required. Ø 30 mm / M8 × 35 mm. Blue.
M8 × 35 mm stainless — marine, outdoor, food service
Hollow metal tube legs have no threads. Threaded-insert tube plugs press into the open tube end and provide the tapped socket for the leveling foot to screw into. No drilling, no welding. Press in and thread in.
Select a threaded-insert tube plug matching your tube profile (round, square, or rectangular) and wall thickness. Press it into the open tube end without adhesive or tools. The ribbed outer wall grips the tube wall. Available in M6 through M12.
Match the leveling foot thread size to the insert. Thread in by hand. Adjust each leg to level the furniture. Tighten the locking nut. The result is a fully adjustable, removable leveling solution on any hollow tube furniture leg without drilling, welding, or other irreversible changes to the furniture.
Any furniture or equipment with threaded inserts or pre-tapped holes. For bulk and commercial orders, visit Business Solutions.
Dining tables, bar counters, and prep stations on uneven tile and concrete floors
Dining tables, desks, wardrobes, and kitchen units on slightly uneven floors
Desks, conference tables, storage units, and server racks on commercial flooring
Workbenches, machinery bases, and racking systems on uneven concrete
Medical equipment, clinical furniture, and lab benches that require precise leveling
Boat furniture, outdoor seating, and terrace furniture with stainless steel versions
Commercial kitchen equipment, prep tables, and display cases with stainless for hygiene compliance
Cantilever chair frames with threaded inserts in the tube, paired with tube plug threaded inserts
Thread in by hand. Height adjustment and removal need no tools on any standard, low-profile, wide-base, or smooth-base model.
Thread the leveling foot into the pre-tapped hole or threaded insert from below. Turn clockwise to raise the furniture, counter-clockwise to lower. Adjust until all legs make firm contact with the floor.
Place a spirit level on the furniture surface. Adjust each foot independently. Hex-key models allow finer adjustment with an Allen key. Tilt and ball-joint models compensate automatically with no per-leg adjustment needed on sloped surfaces.
Tighten the plastic locking nut against the furniture base to keep the foot from turning out of position during use. Notched-thread versions hold position without a locking nut — the notches resist rotation from vibration.
Full guide including thread size charts and tube plug compatibility: Read the leveling feet guide →
