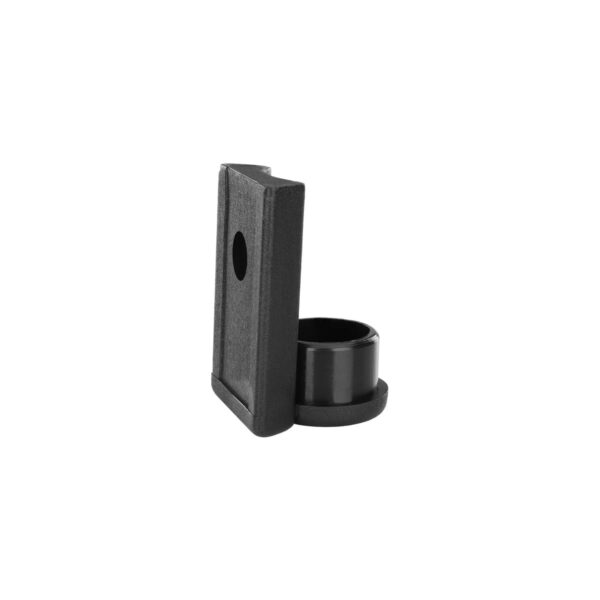

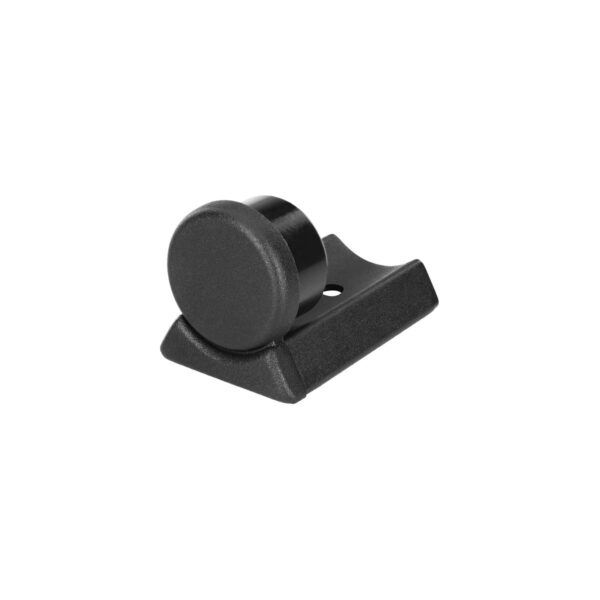

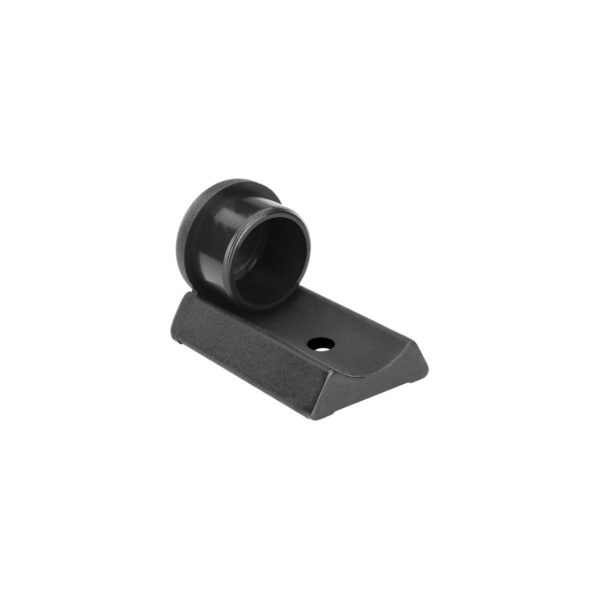

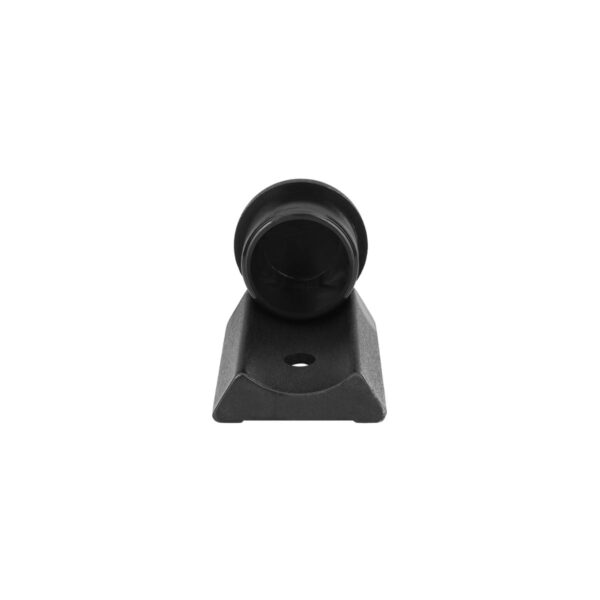

Round tube end sled base glides rectangular base with pad slot cap the open end of Ø 28 mm round tube sled runners, sealing the tube opening and providing PA6 floor protection at the runner endpoint. L = 52 mm. Pad slot 44 × 19.5 mm. Base W = 32 mm. Base H = 6 mm. One screw (Ø 5.5 mm). Tube wall 1.5 to 2 mm. Black (17.5 g) and grey (17.3 g). Sold individually.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Sled base runners have three zones that need floor protection: straight sections, bends, and tube ends. Mid-runner glides cover the straight sections. Corner glides cover the bends. End sled base glides rectangular cap the open tube ends where the runner terminates, sealing the tube opening and providing floor contact at the runner’s endpoint. This end glide slides over the open end of a Ø 28 mm round tube and is secured with one screw. The rectangular pad slot accepts a PA6 pad for floor protection on scratch-sensitive surfaces.
PA (polyamide) end cap glide for Ø 28 mm round tube sled runners. End sled base glides rectangular base with pad slot seal the runner tube end and provide PA6 floor protection at the terminal contact point. L = 52 mm. Pad slot 44 × 19.5 mm. Base W = 32 mm. Base H = 6 mm. One screw (Ø 5.5 mm). Tube wall 1.5 to 2 mm. Black and grey. Sold individually.
Both colors share identical dimensions, material, pad slot, and mounting.
PA body. Ø 28 mm tube fit. L = 52 mm. Pad slot 44 × 19.5 mm. Base W = 32 mm. Base H = 6 mm. H = 35 mm total. One screw (Ø 5.5 mm, countersink Ø 10 mm). For dark sled frames.
PA body. Ø 28 mm tube fit. L = 52 mm. Pad slot 44 × 19.5 mm. Base W = 32 mm. Base H = 6 mm. H = 35 mm total. One screw (Ø 5.5 mm, countersink Ø 10 mm). For grey, silver, chrome frames.
For Ø 28 mid-runner: square base pad slot. For Ø 28 corner: corner heavy-duty. For rectangular tube ends: rectangular tube end glides. For oval tube ends: oval tube end glides. For custom sizes, contact Business Solutions.
End sled base glides rectangular slide over the open end of the runner tube like a cap. The glide’s internal cavity is shaped to accept the Ø 28 mm tube with a wall thickness of 1.5 to 2 mm. The tube inserts into the cavity, and one screw through the side locks the end glide in position. The base extends beyond the tube end, providing floor contact at the terminal point of the runner.
Unlike mid-runner glides that cradle the tube from below with a saddle, end glides enclose the tube end from the side. This seals the open tube, preventing debris, dirt, and moisture from entering the runner tube. The sealed end also eliminates the sharp tube edge that could scratch floors or snag on carpet fibers when the furniture is slid across the floor surface during repositioning or cleaning.
The open end of a sled runner tube is a floor contact point with several problems. The cut tube edge is sharp and can scratch floors. The thin tube wall creates a concentrated contact line. The open tube collects dust, dirt, and moisture that can rust the inside of the tube over time. End sled base glides rectangular solve all three problems: they cover the sharp edge, distribute the contact across the broader base, and seal the tube opening.
On sled furniture where the runner extends forward past the front legs (common on cantilever designs), the runner end contacts the floor directly. Without an end glide, every time the chair is pushed forward, the sharp tube end drags across the floor. End sled base glides rectangular provide PA or PA6 contact at this drag point instead of bare metal, preventing scratch damage at one of the most active contact points on the chair.
The 44 × 19.5 mm pad slot accepts a rectangular PA6 pad that provides dedicated floor protection at the runner end. On hardwood, luxury vinyl, and polished concrete, the PA6 pad prevents the micro-scratching that plain PA can cause under sustained load and repeated dragging. The pad slot on end sled base glides rectangular is the same concept as the pad slots on square base pad slot and rectangular base pad slot mid-runner glides. When the pad wears, press-fit a new one without removing the end glide from the tube.
The end glide slides onto the tube end and is secured with one screw.
For complete floor protection on Ø 28 mm sled furniture, combine three glide types: square base pad slot on straight sections, corner heavy-duty at bends, and end sled base glides rectangular at tube ends. All three have pad slots for PA6 protection, providing consistent PA6 floor contact at every contact point on the chair.
End sled base glides rectangular fit Ø 28 mm round tubes with a wall thickness of 1.5 to 2 mm. Measure the outside diameter of the runner tube at the end. If it reads approximately 28 mm, this is the correct end glide. The internal cavity is machined to accept this specific tube diameter and wall range. Tubes with walls thinner than 1.5 mm may fit loosely. Tubes with walls thicker than 2 mm may not slide into the cavity.
If the tube is a different diameter, end glides are not available for all round tube sizes. For Ø 28 mm mid-runner positions, use square base pad slot glides. For rectangular tube ends (20 × 30 mm), see rectangular tube end glides. For oval tube ends, see oval tube end glides.
End sled base glides rectangular serve a different function than mid-runner sled base glides. Mid-runner glides mount along the straight section of the runner with a saddle that cradles the tube from below. End glides slide over the open tube end and enclose it from the side. The two types complement each other: mid-runner glides protect the floor along the runner length, while end glides protect the floor at the runner termination point and seal the tube opening.
On furniture where the runner extends past the legs (cantilever and U-frame designs), the runner end is a primary floor contact point. The end glide provides PA or PA6 contact at this point instead of the sharp cut edge of the bare tube. On furniture where the runner terminates under the seat without contacting the floor, end glides serve primarily as tube seals to prevent internal debris accumulation and corrosion, with floor protection as a secondary benefit if the end occasionally touches the floor during use.
Beyond floor protection, end sled base glides rectangular seal the open tube end. Open tube ends collect dust, dirt, food particles (in restaurant and cafeteria settings), moisture, and cleaning solution residue. Over time, this debris can cause internal corrosion on steel tubes, weakening the frame from the inside. The sealed end cap prevents all of this by closing the tube opening.
In environments where floors are mopped or hosed (commercial kitchens, cafeterias, healthcare), water that enters open tube ends can sit inside the runner and corrode the internal surface. End sled base glides rectangular prevent water ingress by sealing the tube end with a press-fit PA cap that the screw locks in position. The combination of floor protection and tube sealing makes end glides a dual-function component.
Count the open tube ends on your sled furniture that contact the floor or are exposed to debris. Most sled chairs have 2 runner ends that contact the floor (the forward-facing ends of the two runners). Some designs have 4 exposed ends (front and rear of each runner). Not all tube ends need floor-contact end glides if they are positioned above the floor, but all open tube ends benefit from sealing even if they do not touch the floor.
End sled base glides rectangular are sold individually. Order based on the number of open Ø 28 mm tube ends across your furniture fleet. For a fleet of 50 sled chairs with 2 floor-contact runner ends each, order 100 end glides plus PA6 pads in matching quantity. Keep spare end glides and pads in maintenance stock.
The PA6 pad at the tube end wears from floor contact during chair movement. On chairs where the runner end is the first point of contact when the chair is pushed forward (common on cantilever designs), the end glide pad may wear faster than mid-runner pads because it bears the initial sliding force of each forward push. When the pad wears thin, press-fit a new one. The screw stays in place during pad replacement.
The PA end cap body typically lasts through multiple pad replacements because it is protected from direct floor contact by the pad. Signs that the body needs replacement: the cavity no longer fits snugly on the tube (from deformation or cracking), or the screw hole has enlarged from repeated stress. These body failures are uncommon under normal use conditions.
For furniture manufacturers, include end sled base glides rectangular in the bill of materials for all Ø 28 mm sled furniture with open tube ends. A complete Ø 28 mm sled chair specification includes: square base pad slot mid-runner glides, corner heavy-duty glides, and end sled base glides rectangular. All three have pad slots for consistent PA6 floor protection at every contact point.
For facility managers retrofitting existing furniture, round tube end sled base glides rectangular are often the last component added to a sled chair protection system. Chairs may already have mid-runner and corner glides but lack end caps. Adding end glides completes the protection and seals the tube ends against debris and moisture. For production quantities, visit Business Solutions.
Floor protection, tube sealing, and edge coverage at the runner end. The National Wood Flooring Association (NWFA) recommends protective contact on all furniture contact points, and the runner end is a contact point that is often overlooked when only mid-runner glides are installed.
The PA end cap covers the sharp cut tube edge. On carpeted floors, this prevents the edge from catching and tearing carpet fibers. On hard floors, it prevents the sharp edge from gouging the surface when the chair is pushed forward. Unlike leaving open tube ends unprotected, end sled base glides rectangular eliminate the edge hazard entirely.
The sealed end prevents debris from entering the tube. The PA6 pad provides scratch-free floor contact at the terminal point. Together, the end glide extends the service life of both the tube (by preventing internal corrosion) and the floor (by providing low-friction PA6 contact instead of bare metal).
End sled base glides rectangular with PA6 pad are recommended for hardwood, luxury vinyl, polished concrete, and sealed stone where the runner end contacts the floor. The pad provides the same PA6 protection as pad slot glides on the straight sections. On commercial tile, concrete, and laminate, the end glide can be used without a pad for standard PA floor contact that still protects the floor from the sharp tube edge.
PA (polyamide) body with PA6 pad (sold separately). The same material pairing used across self-adhesive furniture glides, furniture pads, and leveling feet throughout the catalog. The PA body provides structural rigidity for the end cap enclosure function and impact resistance for the tube end contact point. The PA6 pad provides the floor contact surface with low friction and high wear resistance for scratch prevention on finished floors.
Conference rooms, offices, and institutional seating with Ø 28 mm sled runners on finished floors. Round tube end sled base glides rectangular complete the floor protection system at the runner endpoints where the sharp cut tube edge would otherwise contact the floor directly. In conference rooms where heavy cantilever chairs are pushed forward under the table after each meeting, the runner end is the first contact point that drags across the floor during each push. Without an end glide, the sharp tube edge gouges the floor at this high-traffic drag point.
Order alongside square base pad slot mid-runner glides and corner heavy-duty glides for a complete Ø 28 mm glide kit that covers straight sections, bends, and tube ends. For tube plugs on table legs and furniture glides on standard chairs in the same space, all use the same PA material family for consistent floor interaction across every piece of furniture in the room. Available in bulk. For commercial pricing, visit Business Solutions.
Sled dining chairs and home office chairs with Ø 28 mm runners on hardwood or luxury vinyl. The end glides seal the tube ends (preventing dust and dirt accumulation inside the runner) and protect the floor at the runner endpoints where the sharp cut edge would otherwise drag across the floor surface. For other furniture in the room, self-adhesive glides provide consistent PA floor protection on standard-leg pieces, ensuring every contact point in the space is covered.
Inspect the PA6 pad every 6 to 12 months on chairs in regular use. When the pad wears thin, press-fit a new pad into the slot. Check the screw for tightness. End sled base glides rectangular are sold individually. Order 2 per chair (one per runner end) if both ends contact the floor. Some sled designs have only the front or rear end contacting the floor, while others have both ends at floor level. Count the floor-contact endpoints on your specific furniture before ordering. Keep spare pads and spare end glide bodies in maintenance stock for commercial furniture fleets where sled chairs are a regular maintenance item.
| Specification | Details |
|---|---|
Product Type |
End-Mount Round Tube Saddle Glide with Rectangular Sled Base (Slot for Pad/Single Hole) |
Materials |
PA (Polyamide) saddle and base |
Floor Compatibility |
Hard floors and low-pile carpet |
Furniture Compatibility |
Chairs, benches, cafeteria, waiting room, and conference seating |
Leg Compatibility |
Ø 28 mm round tubular frames |
Base Size |
52 mm × 32 mm (2.05" × 1.26") |
Mounting Style |
One central screw hole (screw not included) |
Color Options |
Black, Grey |
Installation Type |
Press-fit with optional screw anchoring |
Key Benefits |
Quiet gliding, secure end fit, durable protection |
Indoor / Outdoor |
Indoor | Covered Outdoor | Uncovered Outdoor |

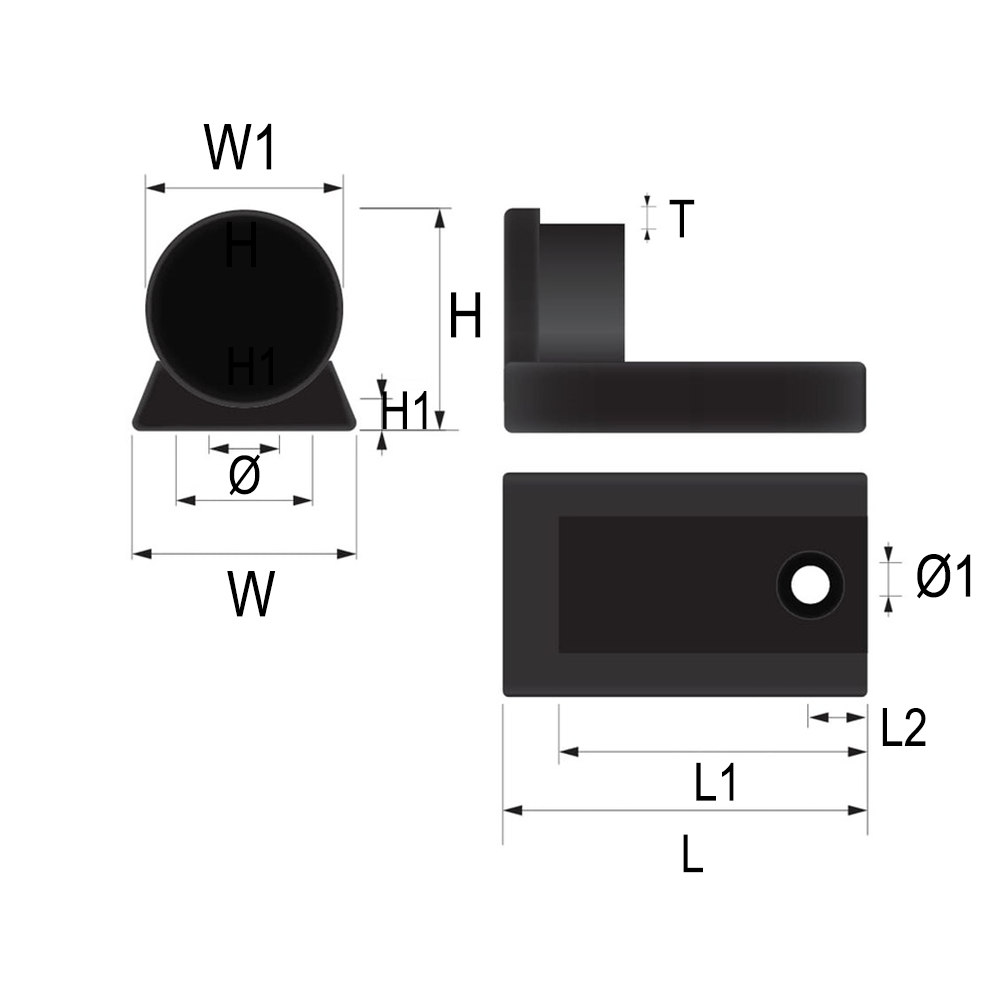

| Tube Diameter (Ø) | Base Dimensions (L x W) | Slot Dimensions (L1 x W2) | Hole Diameter (Ø2) | Hole Diameter (Ø1) | Total Height (H) | Base Height (H1) | Tube Wall Thickness (T) |
|---|---|---|---|---|---|---|---|
28 mm |
52 mm x 32 mm |
44 mm x 19.5 mm |
5.5 mm |
10 mm |
35 mm |
6 mm |
1.5 – 2 mm |
Mid-runner glides cradle the tube from below with a saddle along the straight section. End glides slide over the open tube end from the side, enclosing the tube like a cap. The end glide seals the tube opening, covers the sharp cut edge, and provides floor contact at the terminal point of the runner.
The end glide covers the open tube end and presses against the tube walls through friction and the screw lock. It provides effective sealing against dust, dirt, and casual moisture. It is not a waterproof seal for submerged or pressurized conditions.
1.5 to 2 mm. The internal cavity is sized for Ø 28 mm tubes with walls in this range. Tubes with thinner walls may fit loosely. Tubes with thicker walls may not slide into the cavity.
Yes. Even if the tube end is above floor level, the end glide seals the opening against debris and covers the sharp edge. The PA6 pad provides floor protection if the end does contact the floor during use or when the chair tips.
Not in the standard range. For Ø 28 round tube ends, this is the only option. For rectangular tube ends (20 × 30 mm), see rectangular tube end glides. For oval tube ends (20×30, 25×35, 30×50), see oval tube end glides. For other round tube diameters, contact Business Solutions.
