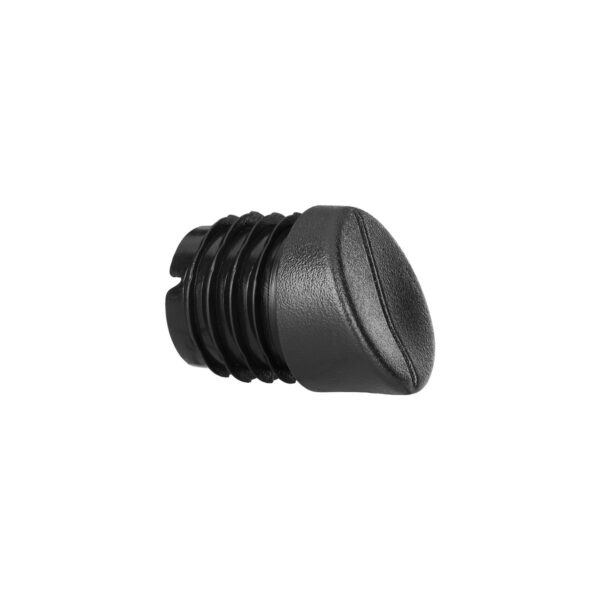

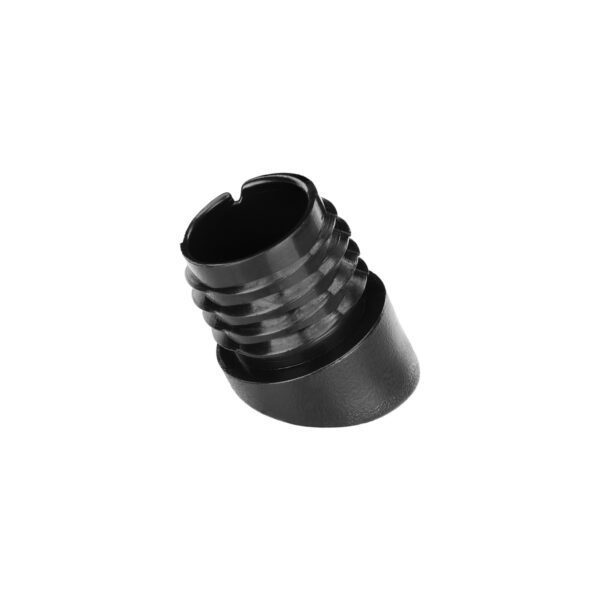

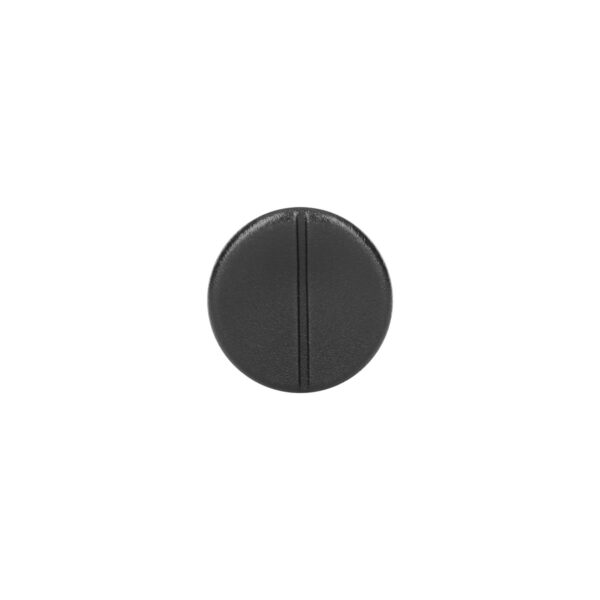

Angled round tube plugs compensate for splayed or tilted furniture legs so the plug base sits flat on the floor. Press-fit ribbed walls hold securely inside hollow tubes. Ø 20 mm and Ø 22 mm sizes. Wall thickness 1.5–2.5 mm. Black and grey. Polyethylene (PE) construction. For chairs, stools, and frames where legs meet the floor at an angle.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
| Specification | Details |
|---|---|
Product Type |
Tube Plug – Inner with Angle (9° / 22°) |
Shape |
Round Tube |
Materials |
PE (Polyethylene) or PA (Polyamide – Ø20 mm only) |
Fit Style |
Friction-fit ribbed compression |
Floor Compatibility |
All hard and soft flooring |
Furniture Compatibility |
Chairs, tables, stools, racks, shelving, institutional and commercial furniture |
Leg Compatibility |
Metal and plastic round tubing with angled legs |
Sizes Available |
Ø20 mm (1.5–2 mm wall), Ø22 mm (1.5–2 mm wall) |
Color Options |
Black, Grey |
Installation Type |
Press-fit (hand or rubber mallet) |
Key Benefits |
Angled face correction, anti-rocking stability, scratch protection, durable hold |
Indoor/Outdoor Use |
Indoor | Covered Outdoor | Uncovered Outdoor |
Recyclable |
Yes |

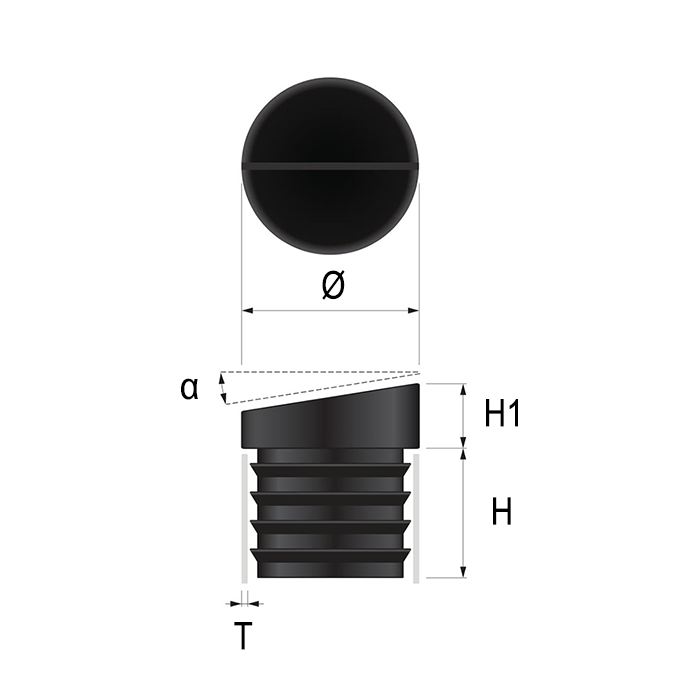

| Outer Tube Diameter (Ø) | Tube Wall Thickness (T) | (H) Insert Depth | Head Height (H1) | Angle (α) |
|---|---|---|---|---|
20 mm (0.79") |
1 – 1.5 mm (0.04" – 0.06") |
11.5 mm (0.45") |
10 mm (0.39") |
22 |
22 mm (0.87") |
1 – 1.5 mm (0.04" – 0.06") |
16 mm (0.63") |
8 mm (0.31") |
9 |
22 mm (0.87") |
1.5 – 2 mm (0.06" – 0.08") |
16 mm (0.63") |
12.5 mm (0.49") |
22 |
The angled base is designed for common furniture splay angles, typically 5–15 degrees from vertical. This covers most splayed chair legs, bar stool legs, and tilted frame members. For extreme angles, contact Business Solutions for custom options.
The angled face must point toward the floor. Rotate the plug so the thickest part of the head faces the direction the leg tilts away from vertical. When installed correctly, the angled base sits flat on the floor even though the tube enters at an angle.
You can, but the angled base will tilt the floor contact surface, creating uneven weight distribution. For straight, vertical legs, use standard flat head round tube plugs. Angled plugs are specifically for legs that meet the floor at an angle.
Currently Ø 20 mm and Ø 22 mm. These cover the most common splayed chair and stool leg diameters. For other sizes, contact Business Solutions.
Yes. Same PE body, same flexible ribs, same press-fit installation. Only the head geometry changes to compensate for the leg angle.
