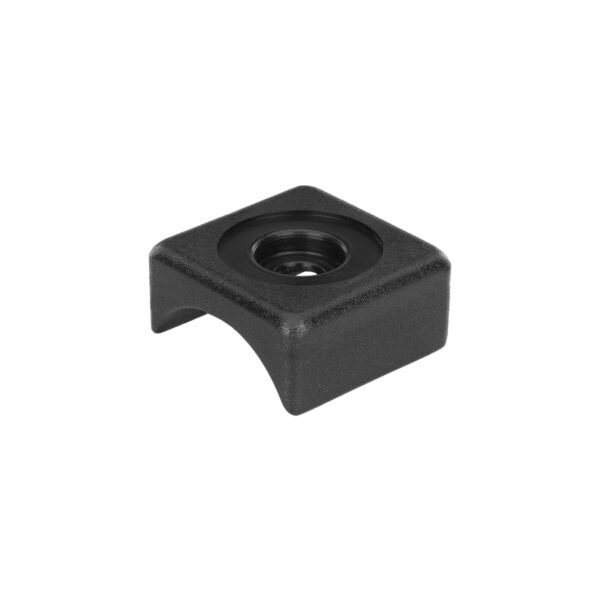

Round Tube Saddle Glides — Square Sled Base (Pad Slot) delivers stable, floor-safe support for sled-base furniture. Designed with a saddle-fit top for Ø 28 mm round tubing, a 28 × 28 mm square base, a central screw hole, and an integrated pad slot, it provides smooth glide, reduced noise, and reliable durability on hard floors and low-pile carpet. Made from high-performance PA (Polyamide) and available in black or grey.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Round Tube Saddle Glides — Square Sled Base (Pad Slot) are designed specifically for sled-base furniture where secure attachment, controlled movement, and floor protection all matter equally. Sled legs place continuous lateral pressure on glides, and basic plastic feet or snap-on caps often loosen, scrape, or wear unevenly over time. In classrooms, offices, waiting areas, and other high-use environments, this leads to noise, visible floor damage, and frequent replacements.
Round Tube Saddle Glides — Square Sled Base with Pad Slot (One-Hole) address these challenges with a purpose-built saddle design for round tubing, a wide 28 × 28 mm square sled base for balanced load distribution, and an integrated pad slot that allows optional cushioning for enhanced noise reduction and surface protection. This combination delivers stable attachment, smooth sliding performance, and long-term durability across hard floors and low-pile carpet.
Unlike flat clip-on glides that rely on friction alone, the contoured saddle wraps around the tube and holds the glide in proper alignment. The square sled base increases surface contact, preventing pressure points that can cause drag or gouging. When additional protection is needed, the molded pad slot allows a pad insert to be added without changing the glide itself — extending performance and adapting the glide to sensitive flooring.
Loose snap-fits rattle. Narrow feet dig in. Hard plastic scrapes.
Round Tube Saddle Glides — Square Sled Base (Pad Slot) are engineered to stay aligned, move quietly, and protect floors — even under constant daily use.
If your furniture needs quieter movement…
If your round-tube frames require a secure saddle-style grip…
If you want the flexibility to add padding without replacing the glide —
This glide is built to adapt and perform.
The result is smoother movement, quieter operation, and consistent floor protection where sled-base furniture sees the most use.

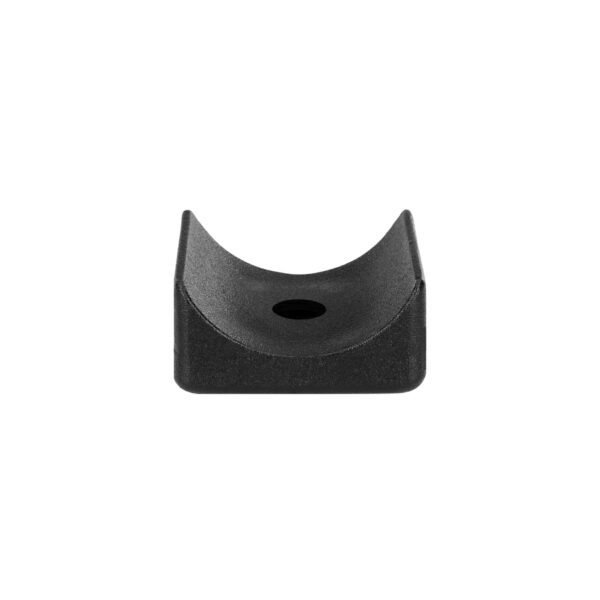

The contoured saddle shape wraps tightly around round tube legs, centering the glide and preventing rotation. Once installed, the glide stays aligned with the sled frame instead of twisting or drifting during movement.
The square sled base increases contact area with the floor, spreading weight evenly and improving glide stability. This reduces drag, minimizes noise, and helps prevent localized wear on flooring surfaces.
A molded slot allows optional pad inserts to be added when extra cushioning, noise dampening, or floor protection is required. This makes the glide adaptable to different environments without changing hardware.
The Polyamide body offers high wear resistance, excellent impact strength, and long-term dimensional stability. It resists oils, cleaning agents, and moisture while maintaining a low-friction, non-marking glide surface from –40 °C to 85 °C.
A centered mounting hole allows the glide to be mechanically fastened when required. This added security is ideal for schools, auditoriums, offices, and other public spaces where furniture is moved frequently.
By accepting optional pad inserts, the glide can be tuned for quieter movement and softer contact on delicate or noise-sensitive floors — extending both floor life and glide lifespan.
Sled Base Size: 28 × 28 mm (1.10″ × 1.10″)
Mounting: Saddle-fit press-on design with optional central screw fixation
Pad Slot: Integrated, accepts optional pad inserts
Total Height: 28 mm (1.10″)
Base Height: 6 mm (0.24″)
Black
Grey
✔ Sled-leg chairs, benches, and tables
✔ Classrooms, auditoriums, and waiting areas
✔ Office and institutional furniture
✔ Commercial seating with round tube frames
✔ Hard floors and low-pile carpet
✔ Applications requiring optional pad-based noise reduction
Press the saddle firmly over the round tube until fully seated. For high-traffic or public installations, secure the glide using a screw through the center hole. Add a pad insert if additional noise reduction or enhanced hard-floor protection is needed. Install glides evenly across all sled legs to ensure consistent wear and smooth movement.
| Specification | Details |
|---|---|
Product Type |
Round Tube Saddle Feet Base with Sled Glide (Ø 28 mm, One Hole / Felt Slot) |
Materials |
PA (Polyamide) saddle and base |
Floor Compatibility |
Hard floors and low-pile carpet |
Furniture Compatibility |
Sled chairs, conference seating, classroom and auditorium furniture |
Leg Compatibility |
Ø 28 mm round tubular frames |
Base Size |
28 mm × 28 mm (1.10" × 1.10") |
Mounting Style |
Central screw hole (screw not included) |
Color Options |
Black, Grey |
Installation Type |
Press-fit saddle with optional screw mount and felt slot |
Key Benefits |
Floor protection, optional noise reduction, stable grip |
Indoor / Outdoor |
Indoor and covered outdoor use |

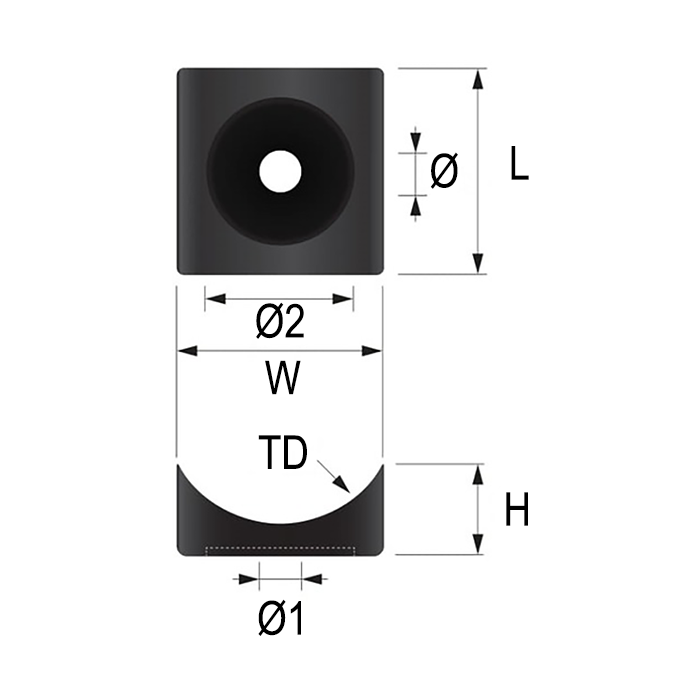

| Tube Diameter (Ø3) | Base Dimensions (L x W) | Hole Center (L1) | Hole Diameter (Ø) | Hole Diameter (Ø1) | Slot Diameter (Ø2) | Total Height (H) | Base Height (H1) |
|---|---|---|---|---|---|---|---|
Ø 28 mm (1.10") |
28 mm × 28 mm (1.10" × 1.10") |
14 mm (0.55") |
5.7 mm (0.22") |
11 mm (0.43″) |
20 mm (0.79") |
28 mm (1.10") |
6 mm (0.24″) |
