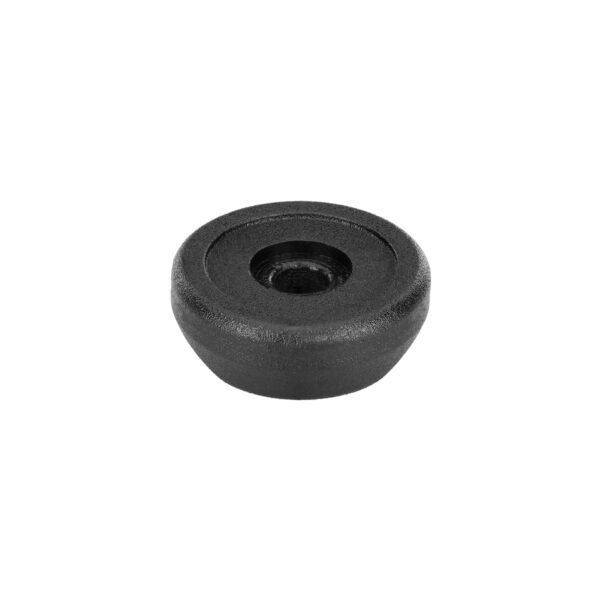

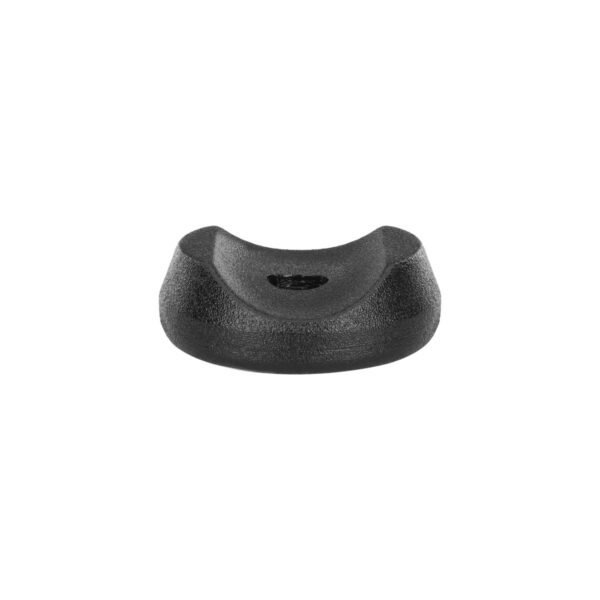

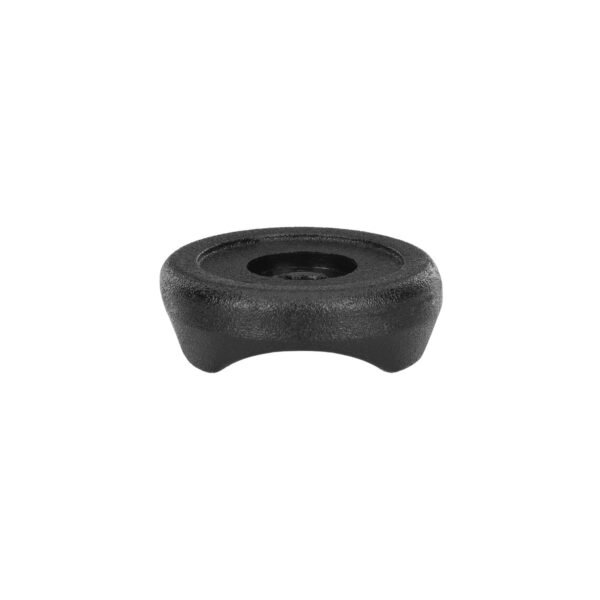

Round Tube Saddle Glides — Round Sled Base (Pad Slot) provides smooth, quiet glide performance for sled-style furniture with Ø 20 mm round tubing. Made from durable PA (Polyamide), it features a secure saddle press-fit, a Ø 28 mm round base, a central screw hole for reinforced mounting, and an integrated slot for an optional pad insert to reduce noise and protect floors on both hard surfaces and low-pile carpet.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Round Tube Saddle Glides — Round Sled Base (Pad Slot) are engineered for sled-base chairs and tubular furniture where noise control, floor protection, and long-term stability matter. Standard sled glides often rely on bare plastic contact, which can squeak on hard floors, wear unevenly, or transmit vibration through the frame. Over time, this leads to scratched surfaces, noisy movement, and premature glide failure.
Round Tube Saddle Glides — Round Sled Base (Pad Slot) solve these problems with a precision saddle fit for Ø 20 mm round tubing, a reinforced Ø 28 mm PA sled base for smooth, controlled movement, and an integrated pad slot that allows optional inserts for quieter, floor-safe performance. The result is a glide that stays aligned, moves smoothly, and adapts to different flooring conditions without changing its footprint.
The contoured saddle wraps securely around the tube, centering the glide and preventing lateral drift. The wide, round sled base distributes load evenly to reduce surface pressure, while the pad slot adds flexibility—allowing you to introduce noise-dampening and surface protection exactly where it’s needed.
Bare plastic scrapes. Rigid contact transmits noise. Low-grade glides wear out fast.
Round Tube Saddle Glides — Round Sled Base with Pad Slot are built for seating that moves constantly and needs controlled, quiet performance—without compromise.
If your sled-leg chairs scrape or squeak…
If you want added floor protection without changing glide size…
If you need a saddle glide that stays centered and performs consistently—
This glide is designed for adaptable, high-use environments.
With optional pad integration, movement stays smooth, contact stays quiet, and floors stay protected—even under frequent daily use.
The contoured saddle grips Ø 20 mm round tubing securely, keeping the glide centered and stable during repeated movement.
The wide, flat, round base distributes weight evenly for smooth gliding across hard floors and low-pile carpet, reducing noise and surface stress.
A built-in slot accepts optional pad inserts to add noise reduction, smoother movement, and enhanced floor protection—without altering glide geometry.
High impact strength • Excellent abrasion and chemical resistance • Low-friction glide surface • Stable from –40 °C to 85 °C • Non-marking • Built for long-term commercial use
Supports optional pad inserts to fine-tune glide performance for quieter movement and added surface protection on both hard and carpeted floors.
A central mounting hole allows screw fastening when additional security is required in high-traffic or commercial installations.
Tube Diameter: Ø 20 mm round tubing
Base Diameter: Ø 28 mm (1.10″)
Mounting Type: Single central hole (optional screw)
Pad Slot: Integrated, pad-ready
Total Height: 28 mm (1.10″)
Base Height: 6 mm (0.24″)
Black
Grey
White
✔ Sled-style chairs and benches
✔ Classroom, cafeteria, and public seating
✔ Office and waiting-area furniture
✔ Tubular frames with Ø 20 mm round legs
✔ Hard floors and low-pile carpet
✔ Environments requiring quieter movement and adaptable floor protection
Press the saddle firmly onto the Ø 20 mm tube until fully seated. For high-use applications, reinforce with a screw through the central hole. Insert a compatible pad into the slot to reduce noise and improve floor protection. Replace glides in full sets to maintain even wear and consistent glide performance.
| Specification | Details |
|---|---|
Product Type |
Round Tube Saddle Feet Base with Sled Glide (Ø 20 mm, One Hole / Felt Slot) |
Materials |
PA (Polyamide) saddle and base |
Floor Compatibility |
Hard floors and low-pile carpet |
Furniture Compatibility |
Sled chairs, classroom seating, cafeteria, conference seating |
Leg Compatibility |
Ø 20 mm round tubular frames |
Base Size |
Ø 28 mm (1.10") (round) |
Mounting Style |
Central screw hole (screw not included) |
Color Options |
Black, Grey, White |
Installation Type |
Press-fit with optional screw and felt insert |
Key Benefits |
Floor protection, optional noise reduction, stable grip |
Indoor / Outdoor |
Indoor | Covered Outdoor | Uncovered Outdoor |

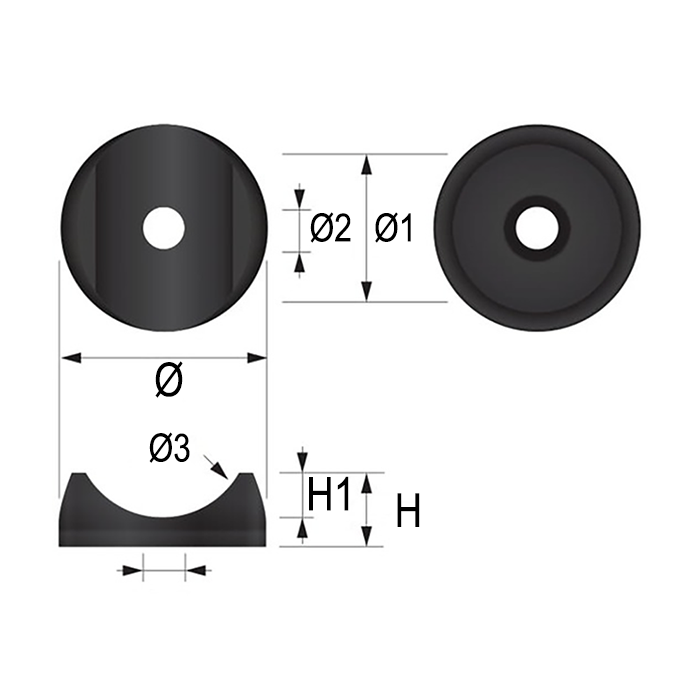

| Tube Diameter (Ø3) | Base Diameter (Ø) | Hole Diameter (Ø2) | Slot Diameter (Ø1) | Total Height (H) | Base Height (H1) |
|---|---|---|---|---|---|
20 mm (0.79") |
28 mm (1.10") |
5.7 mm (0.22") |
20 mm (0.79") |
10 mm (0.39") |
6 mm (0.24") |
