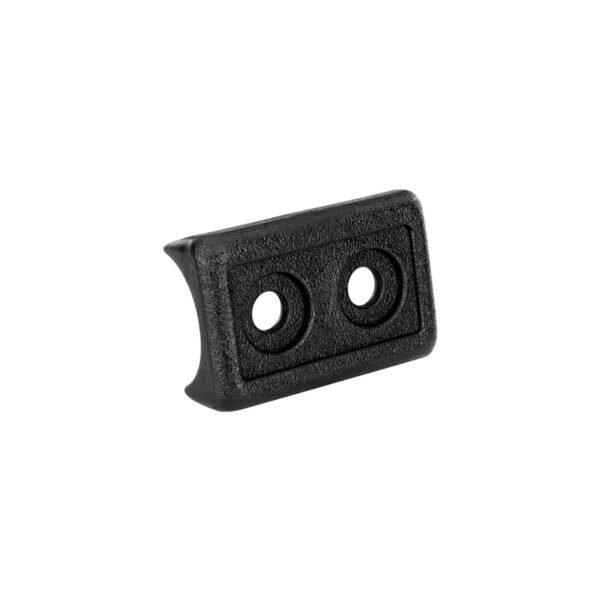

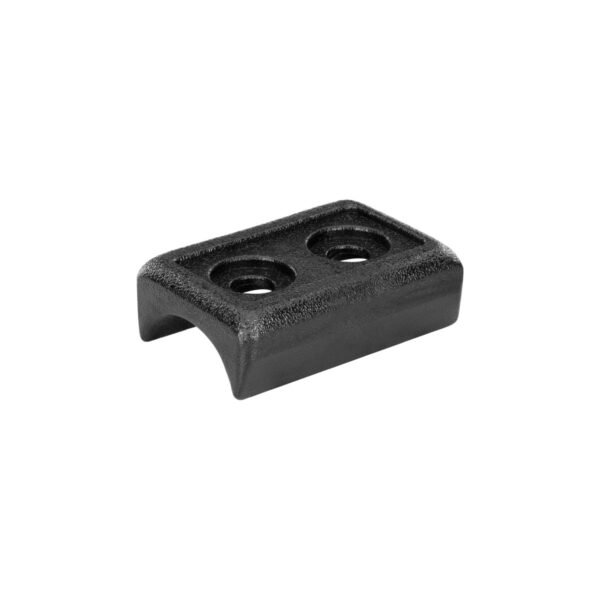

Round Tube Saddle Glides — Rectangular Sled Base (Pad Slot) delivers secure, high-stability mounting for Ø 20 mm or Ø 30 mm round tube frames. The dual-screw design prevents shifting, while the saddle-fit grip and integrated pad slot provide smoother, quieter movement and added floor protection. Made from durable PA (Polyamide), it’s ideal for high-traffic seating in offices, schools, and commercial environments.
Not sure what size? See the size chart ↓
📦 Sold in packs of 4 — quantity adjustable at checkout
Round Tube Saddle Glides — Rectangular Sled Base (Pad Slot) are engineered for sled-base chairs and tubular frames where long-term stability, alignment, and floor protection are critical. Standard sled glides that rely on friction, snap-fit tabs, or single-point fastening often loosen over time, rotate under lateral movement, or detach during frequent repositioning. In classrooms, offices, and public seating areas, that failure exposes metal tubing, increases noise, and leads directly to scratched flooring and unstable seating.
Round Tube Saddle Glides — Rectangular Sled Base (Pad Slot) eliminate these issues with a reinforced saddle-fit grip, a dual-hole screw-fastened mounting system that locks the glide in place, and an integrated pad slot for optional inserts that reduce friction, vibration, and scraping noise. Once installed, the glide becomes a fixed, aligned component of the sled frame—not an accessory that drifts, loosens, or fails.
The contoured saddle wraps tightly around the tube to keep the glide centered and properly oriented. Two mounting points secure the glide mechanically, preventing rotation and pull-off under repeated movement. The rectangular sled base distributes load across a wider contact area, improving wear consistency and maintaining smooth glide performance on hard floors and low-pile carpet. With a pad inserted, the glide becomes quieter and more floor-friendly without changing its profile.
Snap-on glides loosen. Single-screw glides twist. Press-fit-only glides drift and wear unevenly.
Round Tube Saddle Glides — Rectangular Sled Base (Pad Slot) are built for environments where seating moves all day—and the glide must stay secure, quiet, and aligned.
If your seating sees constant repositioning…
If you want a glide that won’t slip, rotate, or loosen…
If you need quiet, floor-safe movement on mixed surfaces—
This glide is designed for permanent, high-use performance.
With dual-screw anchoring and optional pad integration, seating stays stable, movement stays controlled, and floors stay protected—even under heavy commercial traffic.

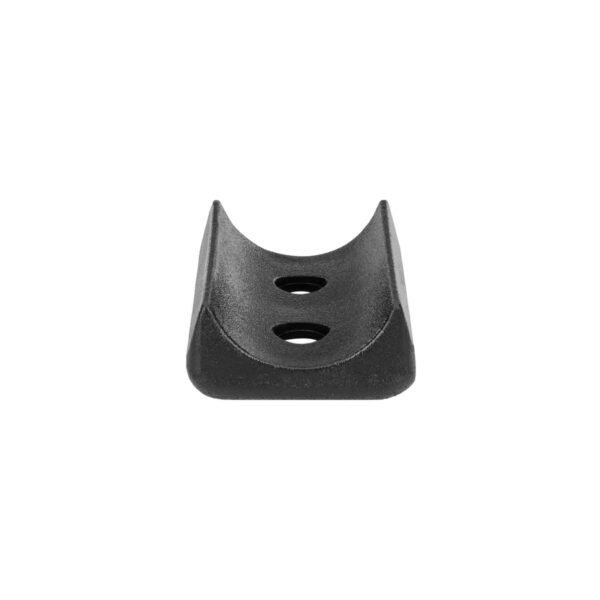

The reinforced saddle geometry grips round tubing securely, centering the glide and helping maintain consistent alignment during repeated chair movement.
Two mounting holes allow the glide to be mechanically fastened with screws (not included). This dual-point lock prevents rotation, pull-off, and loosening—essential for constant-use seating.
A built-in slot accepts optional pad inserts to reduce drag noise, smooth movement, and increase floor protection—without changing the glide’s footprint or fit.
High impact strength • Excellent abrasion resistance • Chemical resistant • Low-friction surface • Performs from –40 °C to 85 °C • Non-marking • Recyclable • Built for long-term use
Provides stable, floor-safe contact and improved load distribution for smoother movement across hard floors and low-pile carpet—helping reduce pressure points and wear.
Dual fastening points distribute force more evenly than single-hole designs, reducing stress concentration and improving long-term stability in high-traffic seating.
✔ Sled-base chairs and benches
✔ Office, classroom, cafeteria, and waiting-area seating
✔ Commercial, public, and institutional furniture
✔ Ø 20 mm or Ø 30 mm round tube frames
✔ Hard floors and low-pile carpet
✔ High-use seating that must stay quiet and secure
Press the saddle firmly over the tube until fully seated. Align both mounting holes and secure using two appropriate screws (not included). For quieter, smoother movement—especially on hard floors—insert a compatible pad into the slot. Replace glides in full sets to maintain even wear and consistent performance across the sled frame.
| Specification | Details |
|---|---|
Product Type |
Round Tube Saddle Feet Base — Two Holes with Felt Slot |
Materials |
PA (Polyamide) saddle and base |
Floor Compatibility |
Hard floors and low-pile carpet |
Furniture Compatibility |
Sled chairs, benches, classroom and office seating |
Leg Compatibility |
Ø 20 mm and Ø 30 mm round tubular frames |
Base Size |
38 mm × 25 mm (Ø 20 mm) and 55 mm × 34 mm (Ø 30 mm) |
Mounting Style |
Two screw holes (screws not included) |
Color Options |
Black, Grey |
Installation Type |
Press-fit with dual screw fixing and optional felt insert |
Key Benefits |
Stability, noise reduction, floor protection |
Indoor / Outdoor |
Indoor | Covered Outdoor | Uncovered Outdoor |

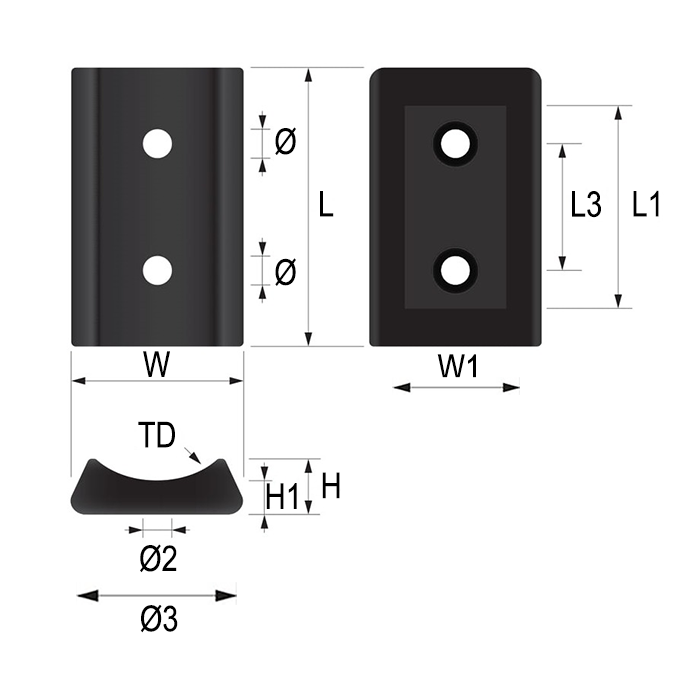

| Tube Diameter (Ø2) | Base Dimensions (L x W) | Slot Dimensions (L1 x W2) | Hole Center (L2) | L3 (Center Between Holes) | Hole Diameter (Ø) | Hole Diameter (Ø1) | Total Height (H) | Base Height (H1) |
|---|---|---|---|---|---|---|---|---|
Ø 20 mm |
38 mm x 25 mm |
30 mm x 15.5 mm |
10 mm |
16 mm |
5.7 mm |
11 mm |
12 mm |
5 mm |
Ø 30 mm |
55 mm × 34 mm (2.17" × 1.34") |
40 mm x 20 mm |
15 mm |
25 mm |
5.7 mm |
10 mm |
11 mm |
7 mm |
